Machining Center - Universal

Details

x-travel:

730 mm

y-travel:

850 mm

z-travel:

1100 mm

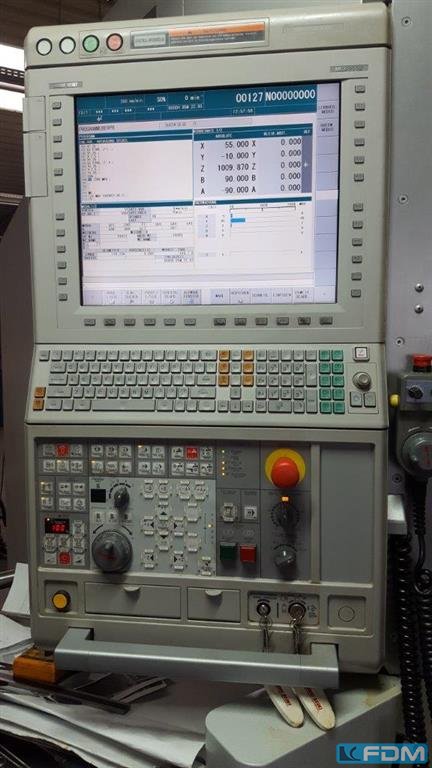

control:

MSX 711 MAPPS IV

Spindle power:

22 / 18,5 kW

Spindle RPM:

12000 1/min

Tool magazine:

120 HSK-A 63

max. tool diameter:

70 mm

Max. Tool dia with free space next in magazine:

140 mm

max. tool length:

480 mm

max. tool weight:

12 kg

rapid travel x/y/z:

50.000 mm/min

A-axis (5th axis) pivoting table:

+30° -120° °

Rapid Rpm B-axis (rotary table):

50 1/min

Rapid feed A-axis (tilt axis):

20 1/min

Pallet changer 2x:

500 x 500 mm

max. workpiece weight:

500 kg

workpiece - installed height:

700 mm

max. workpiece diameter on pallets:

700 mm

total power requirement:

63 kVA

weight of the machine ca.:

21 t

dimensions of the machine ca.:

6,0 x 6,1 x 3,3 m

Number of coordinate systems:

300

Accerories

chip conveyor



spindle oil cooler



Load monitor



Coolant Gun



Memory:

1 MB

Probe for tool breakage and length measuring



Tool life management



Registered Programs:

1000

Renishaw probe (spindle)



3 dimensional Tool offset



Signal lamp 3 colors



Quick fixed cycles



Coolant through spindle 50 bar with filter:

Frascara

Description

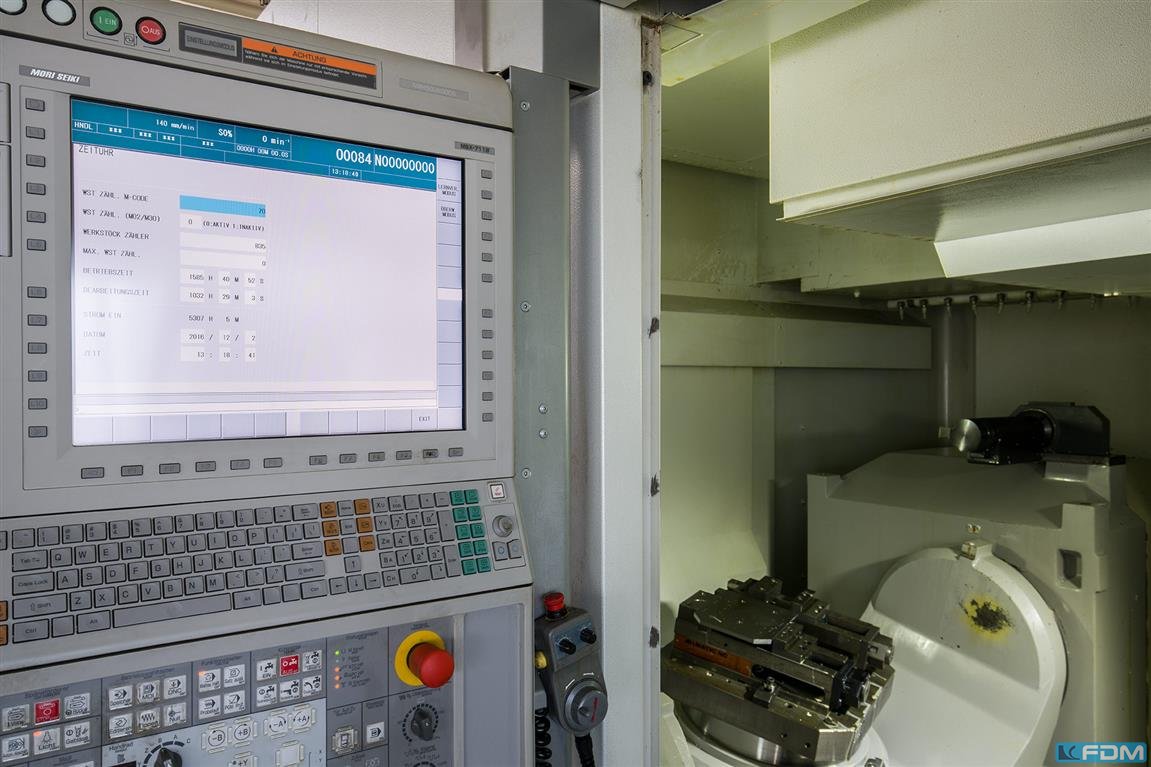

Fast state of the art 5-axis machining center with twin 500mm pallet changer, full A- and B-axis, high pressure coolant through spindle Frascara 50 bar, chip conveyor, tool length measurement and tool breakage detector. 120 tool magazine HSK-A 63, Renishaw probe.
Machine is in excellent condition with little run hours.
