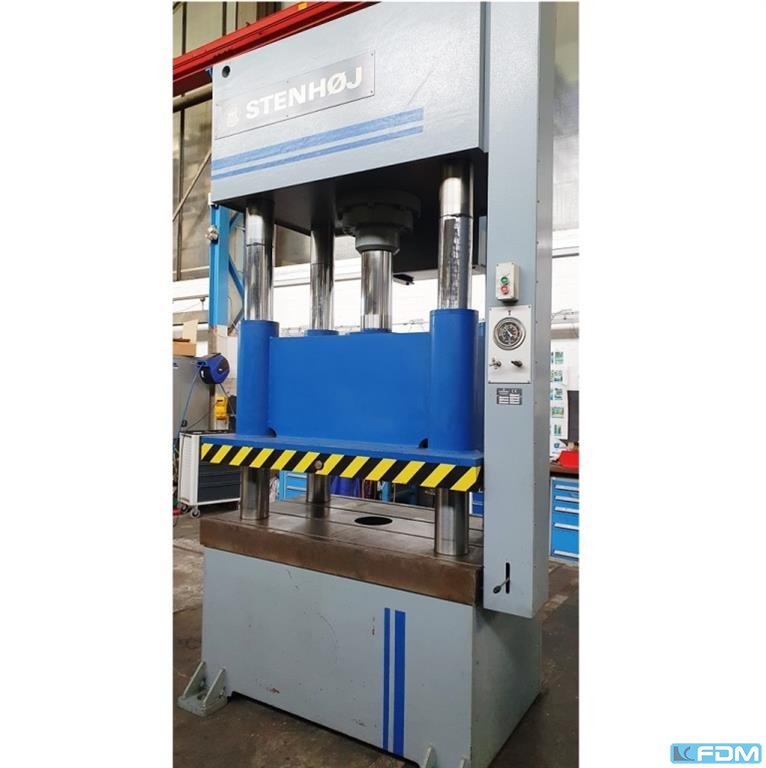

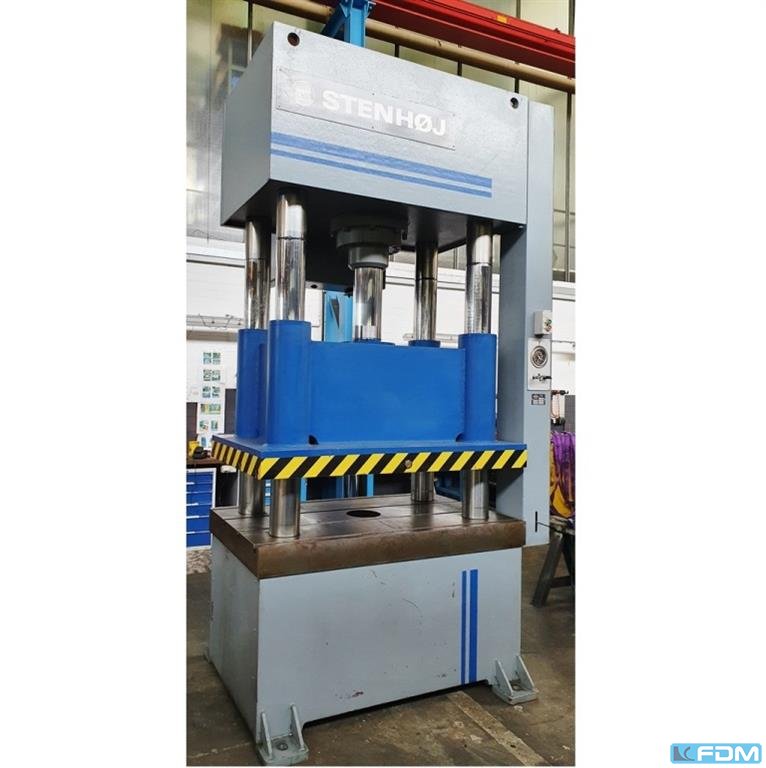

Hydraulic Try-out Press

Details

pressure:

200 t

distance between columns:

1010 mm

stroke:

400 mm

distance table/ram, max. stroke up, adjustment up:

700 mm

table surface area:

1550 x 950 mm

hole in the table:

150 mm

table height over floor:

900 mm

side window:

400 mm

ram surface:

1550 x 950 mm

speed down:

10 mm/s

speed up:

19 mm/s

working speed:

10 mm/s

oil volume:

110 l

power requirement:

18,5 kW

weight:

11,0 t

Dimensions (WxDxH):

1,8 x 1,55 x 3,4 m
