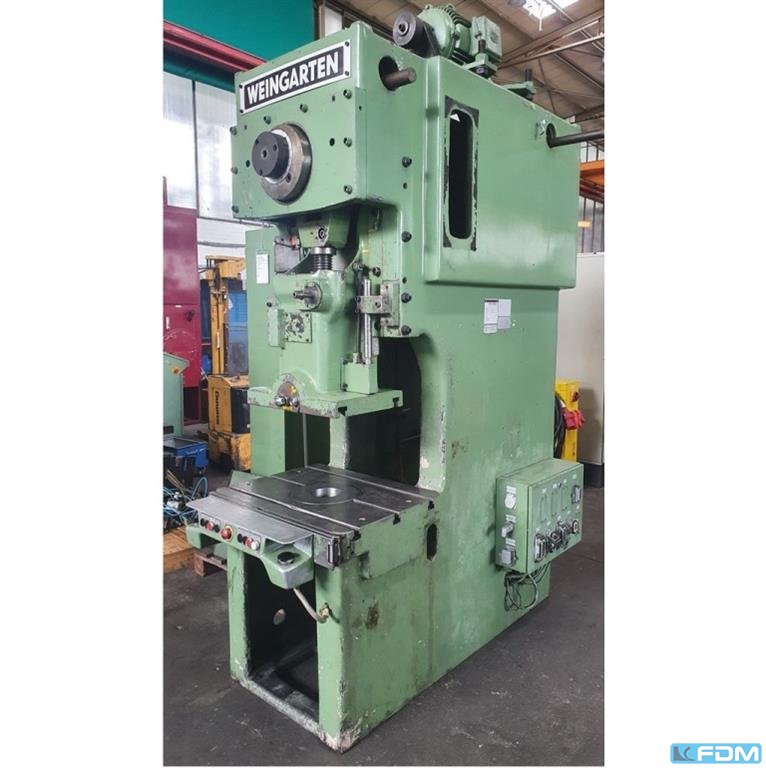

Eccentric Press - Single Column

Details

pressure:

063 t

throat:

315 mm

stroke:

8 - 100 mm

Stroke rate:

120 / min

Distance table/ram, max. stroke up, adjustment up:

435 mm

Table surface area:

730 x 560 mm

Hole in the table:

250 mm

Table height above floor:

800 mm

Passage to the back:

430 mm

Ram surface:

500 x 360 mm

Ram adjustment:

63 mm

Power capacity:

5,5 kW

Weight:

5,4 t

Dimensions (WxDxH):

1,2 x 1,8 x 3,0 m

Additional information

German Safety: permitted for manual loading
clutch
overload protection in ram
