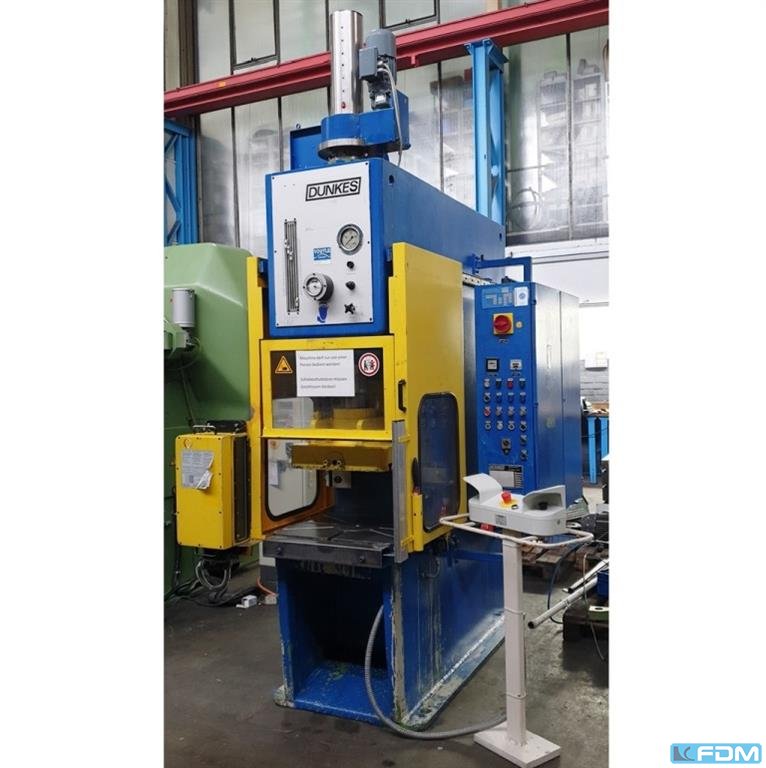

Hydraulic C-Frame (Drawing) Press
DUNKES HZ 63 (UVV)
- Stock number:
- 1050-193028V
- Year / Condition:
- 1990 / used
- Control unit:
- PLC (Siemens S 5)
- Country of origin:
- Germany
- Freight basis:
- ex warehouse, free loaded to t
- Item location:
- warehouse Eislingen, Germany
- Delivery time:
- according agreement
Picture / documents / videos
Technical specs
Details
- pressure:
- 63 t
- throat:
- 280 mm
- stroke:
- 250 mm
- max. distance table - ram:
- 400 mm
- table surface area:
- 650 x 520 mm
- Hole in the table:
- 80 mm
- table height over floor:
- 830 mm
- ram surface:
- 500 x 390 mm
- speed down:
- 100 mm/s
- speed up:
- 465 mm/s
- working speed:
- 25 mm/s
- oil volume:
- 650 l
- Power capacity:
- 24,0 kW
- Weight:
- 4,8 t
- Dimensions (WxDxH):
- 1,5 x 1,9 x 3,4 m
Additional information
- German Safety: permitted for manual loading
controllable dependant on pressure/time and way
depth stop
two hand control buttons
Description
with hydraulic and electrical controls according according to the German Safety Regulations for manual put-in "UVV"), light barrier (make Sick), upper and lower stroke limitation, controllable dependant on pressure, time and way, mech. depth stop, short stroke control,

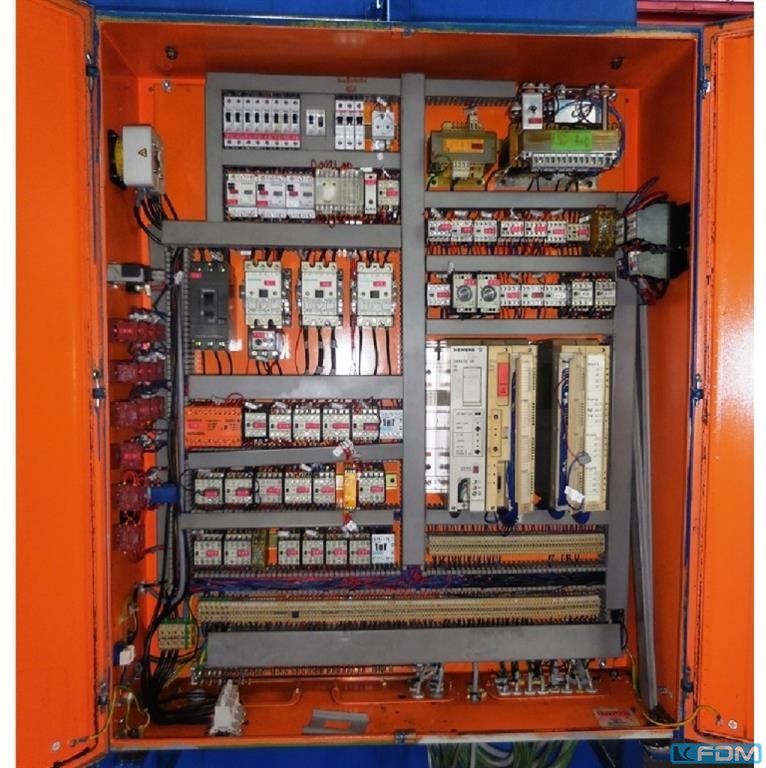

two-hand and foot operation, control cabinet
