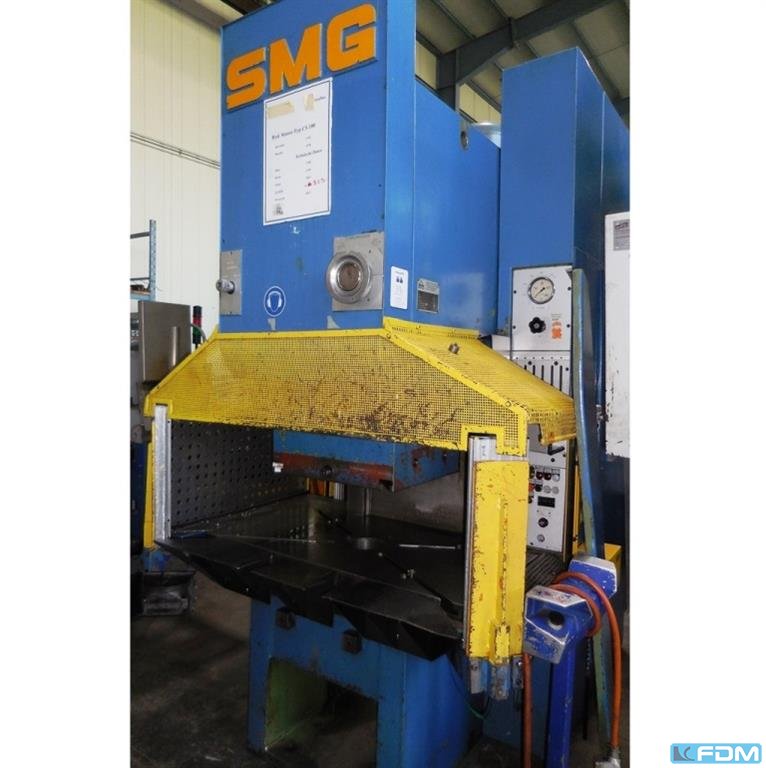

Hydraulic C-Frame (Drawing) Press

Details

pressure:

100 t

throat:

345 mm

stroke:

150 mm

distance table/ram, max. stroke up, adjustment up:

400 mm

table surface area:

1200 x 600 mm

Hole in the table:

150 mm

table height over floor:

850 mm

ram surface:

560 x 500 mm

speed down:

350 mm/s

speed up:

350 mm/s

working speed:

25 mm/s

oil volume:

560 l

power requirement:

22,0 kW

weight:

8,3 t

dimensions (WxDxH):

2,1 x 1,7 x 2,8 m

Additional information

German Safety: permitted for manual loading
depth stop
