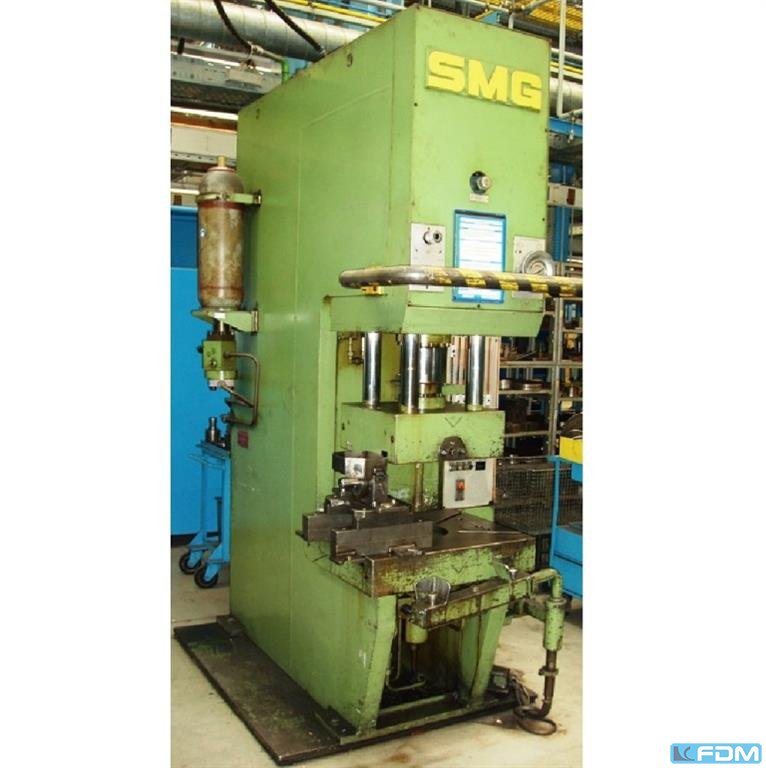

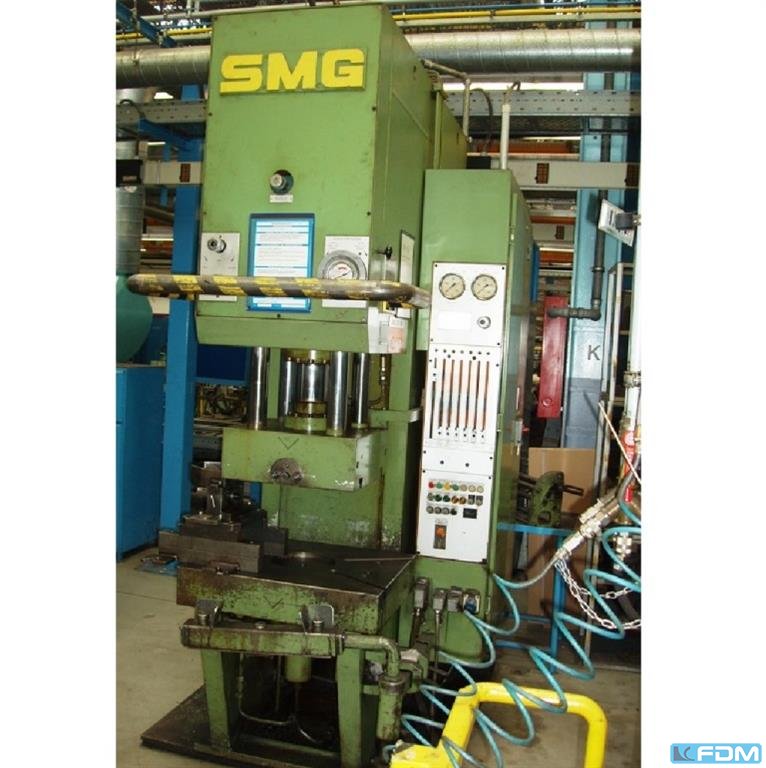

Hydraulic C-Frame (Drawing) Press

Details

pressure:

63 t

throat:

320 mm

stroke:

200 mm

distance table/ram, max. stroke up, adjustment up:

450 mm

table surface area:

750 x 600 mm

pressure of drawing cushion in table:

6,5 t

stroke of drawing cushion in table:

80 mm

die cushion area:

240 mm

table height over floor:

800 mm

ram surface:

500 x 450 mm

capacity of ejector in ram:

0,5 t

ejector stroke in ram:

70 mm

speed down:

300 mm/s

speed up:

300 mm/s

working speed:

50 mm/s

oil volume:

380 l

power requirement:

12,0 kW

weight:

6,5 t

dimensions (WxDxH):

1,3 x 2,0 x 2,75 m

Additional information

drawing cushion in table
ejector in ram
depth stop
cutting impact cushioning
