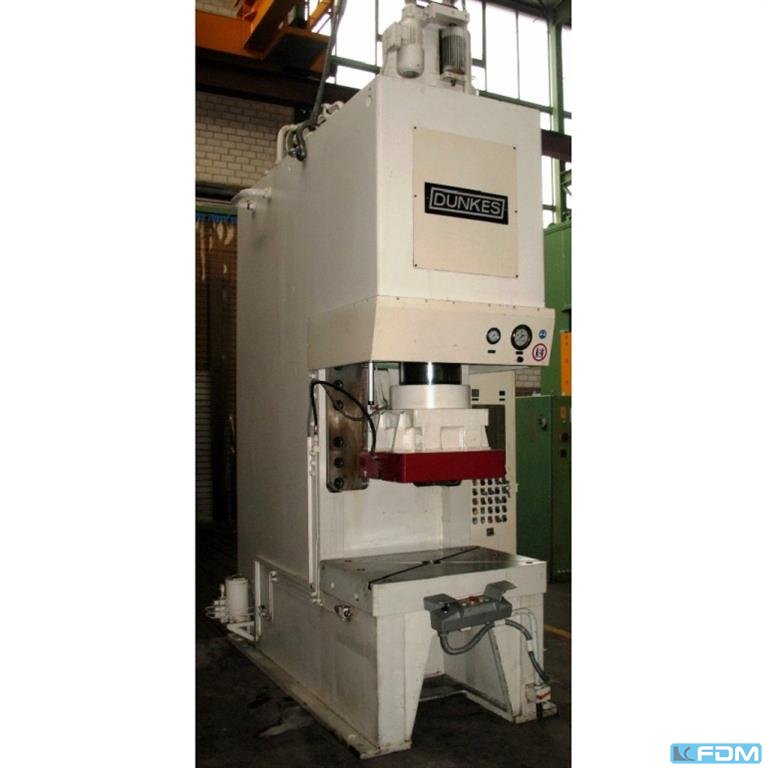

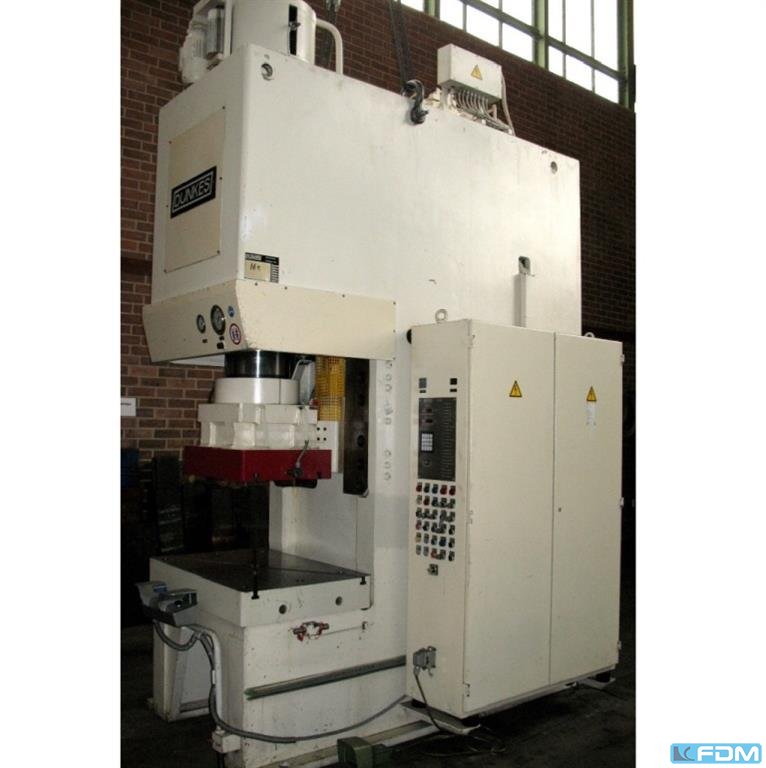

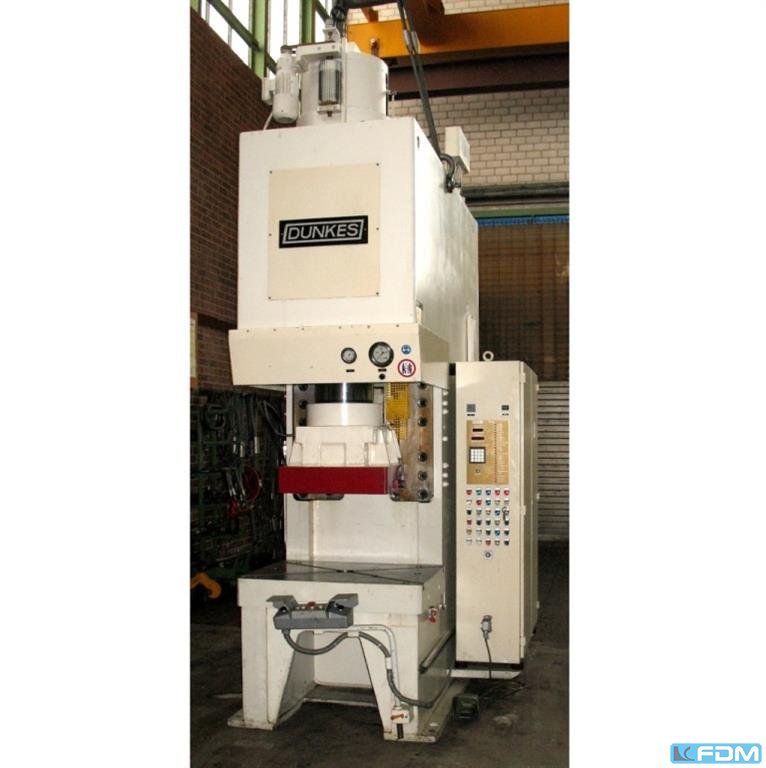

Hydraulic C-Frame (Drawing) Press

Details

pressure:

160 t

throat:

370 mm

stroke:

150 mm

distance table/ram, max. stroke up, adjustment up:

500 mm

table surface area:

1000 x 700 mm

hole in the table:

100 mm

table height over floor:

820 mm

ram surface:

600 x 520 mm

speed down:

350 mm/s

speed up:

350 mm/s

working speed:

12 - 36 mm/s

oil volume:

1100 l

power requirement:

27,0 kW

weight:

16,5 t

dimensions (WxDxH):

1,8 x 2,7 x 3,95 m

Additional information

German Safety: permitted for manual loading
conrollable dependant on pressure/time
depth stop
cutting impact cushioning
two-hand and foot operation
