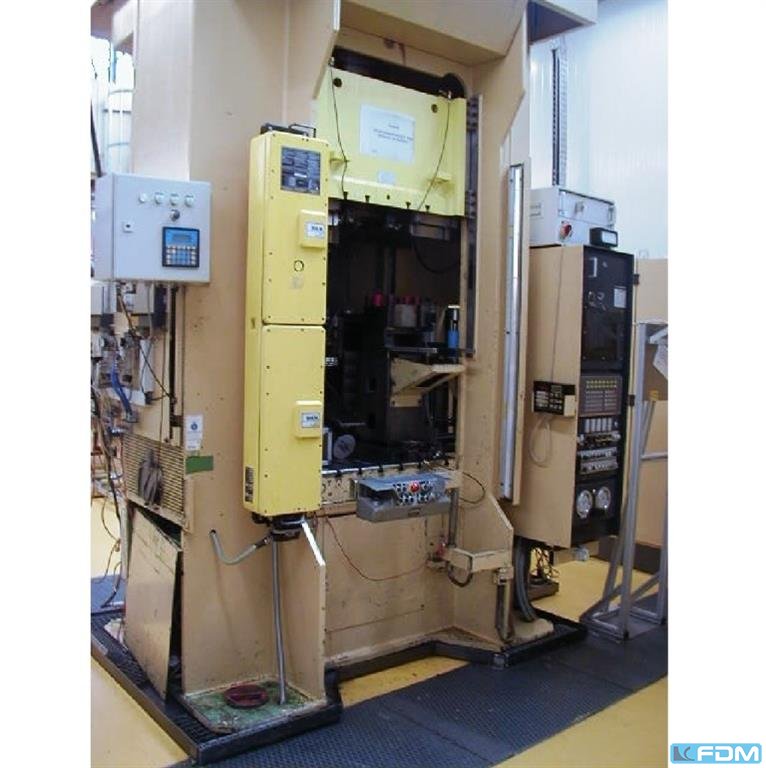

Hydraulic Double-Column (Drawing) Press

Details

pressure:

100 t

distance between columns:

1060 mm

stroke:

700 mm

distance table/ram, max. stroke up, adjustment up:

1250 mm

table surface area:

1000 x 700 mm

pressure of drawing cushion in table:

40 t

stroke of drawing cushion in table:

200 mm

die cushion area:

Ø 250 mm

table height over floor:

950 mm

side window:

580 x 750 mm

ram surface:

1000 x 700 mm

oil volume:

700 l

power requirement:

47,0 kW

weight:

13,0 t

Dimensions (WxDxH):

2,2 x 1,8 x 5,0 m

Additional information

German Safety: permitted for manual loading
drawing cushion in table
ejector in ram
conrollable dependant on pressure/time and way
depth stop
ram interlocking
two-hand operation
