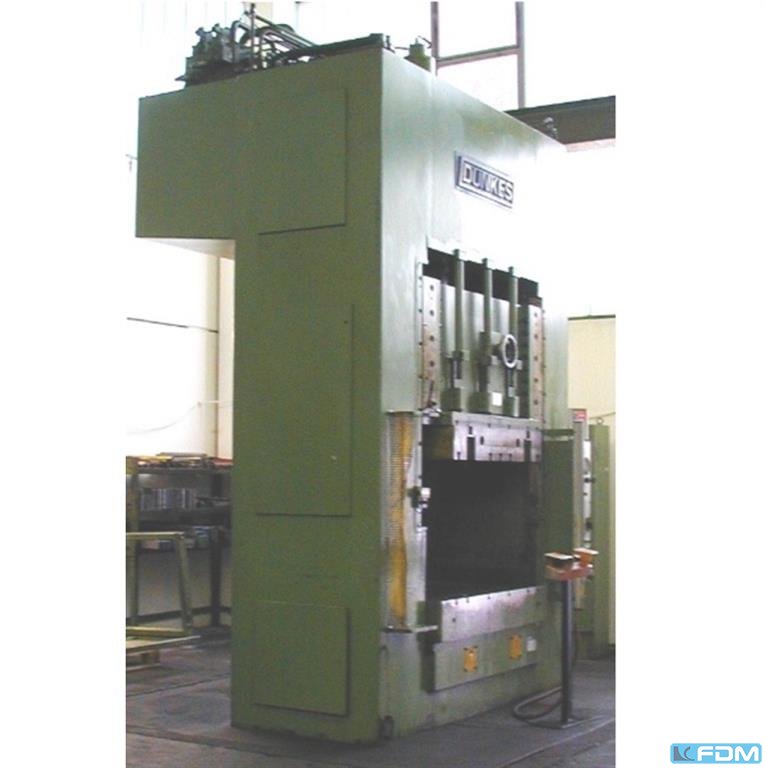

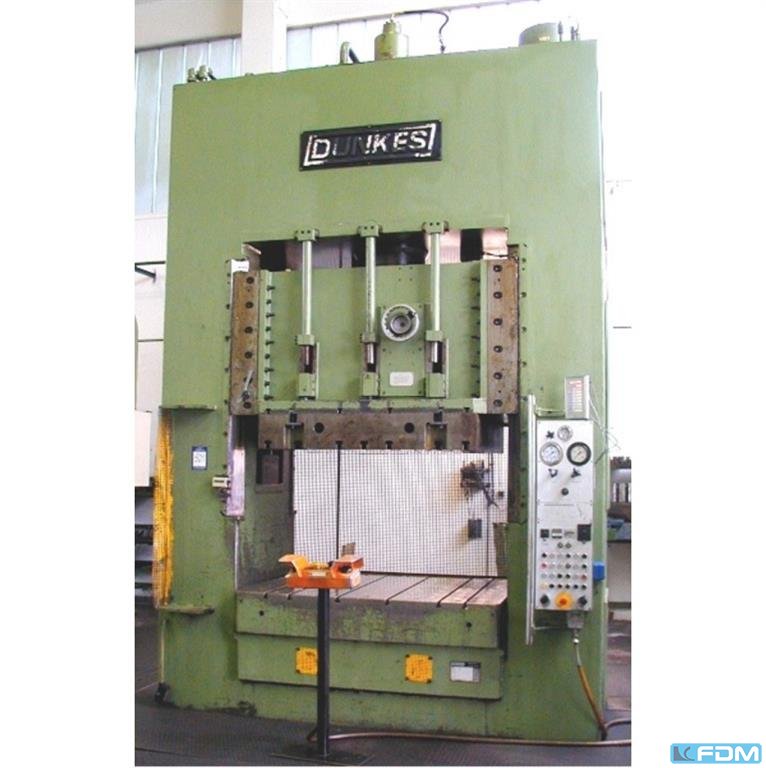

Presses - Hydraulic Double-Column (Drawing) Press - DUNKES HDZ 200/80 (UVV)

Hydraulic Double-Column (Drawing) Press

DUNKES HDZ 200/80 (UVV)

Stock number:
1050-063028
Year / Condition:
1982 / used
Control unit:
conventional (konventionell)
Country of origin:
Germany
Freight basis:
EXW, free loaded to truck
Item location:
warehouse Salach, Germany
Delivery time:
according agreement

Picture / documents / videos

Technical specs

Details

pressure:
200 t
distance between columns:
1650 mm
stroke:
600 mm
distance table/ram, max. stroke up, adjustment up:
1200 mm
table surface area:
1600 x 1250 mm
die cushion capacity:
80 t
die cushion stroke:
300 mm
die cushion area:
1300 x 900 mm
table height over floor:
800 mm
ram surface:
1600 x 1250 mm
oil volume:
ca. 2000 l
power capacity:
43,0 kW
weight:
25,0 t
Dimensions (WxDxH):
2,9 x 2,3 x 5,8 m
height beneath floor:
0,85 m

Additional information

German Safety: permitted for manual loading
drawing cushion in table
ejector in ram
conrollable dependant on pressure/time and way
cutting impact cushioning
two-hand operation
