Machining Center - Universal

Details

x-travel:

2800 mm

y-travel:

2200 mm

z-travel:

2100 mm

Controls:

SIEMENS 840 D

WORKING RANGE -MILLING-:

.

- x-axis traverse:

2800 mm

- y-axis traverse:

2200 mm

- z-axis traverse:

2100 mm

- interference diameter:

2800 mm

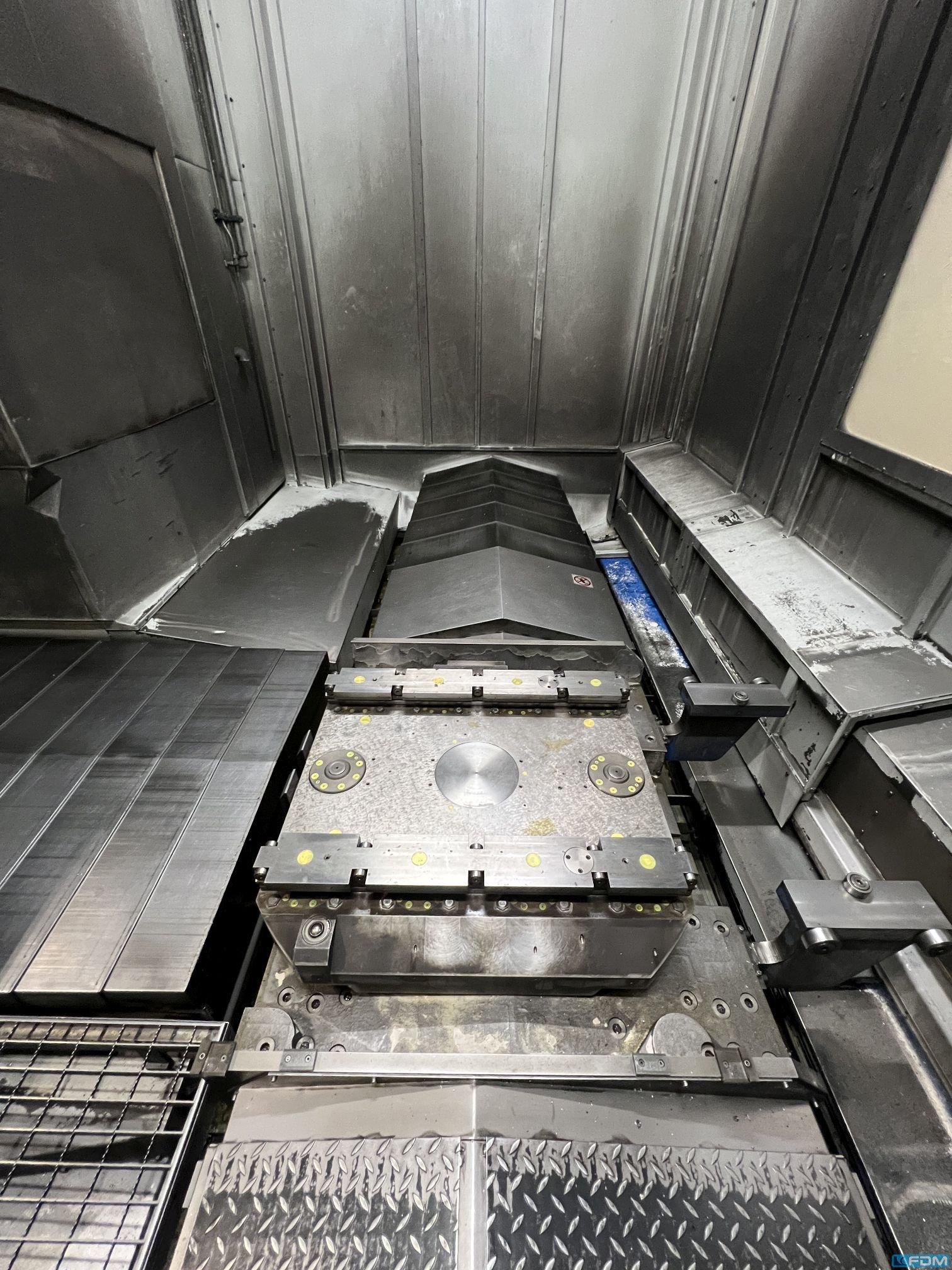

TABLE:

.

- clamping surface (left-right):

1200 mm

- clamping surface (front-back):

1000 mm

- workpiece load (max):

7000 kg

- rotation:

360 °

WORKING SPINDLE / HEAD:

.

- spindle type : tilting head :

.

- tilting range:

90 °

- - mode of operation : automatic :

.

- spindle revolutions (min):

1 /min

- spindle revolutions (max):

8000 /min

- number of gears:

2

- spindle diameter:

100 mm

- taper fixture : HSK A100 :

.

- drive power (max):

50 kW

- spindle power (continuous):

37 kW

- torque (max.):

1910 Nm

AXIS DRIVES:

.

- feed velocity (min):

1 mm/min

- feed velocity (max):

45000 mm/min

- rapid traverse:

45000 mm/min

TOOL MAGAZINE:

.

- number of positions:

350

- tool length max.:

1000 mm

- tool weight max.:

60 kg

ELECTRICAL SPECIFICATIONS:

.

- total power consumption:

100 kW

- mains power supply:

125 kVA

- mains voltage:

400 V

- mains frequency:

50 Hz

ATTACHMENTS:

.

- angular milling head : yes :

.

- ball spindles : yes :

.

- high pressure cooling syst. (through spindle) : yes :

.

- closed cabin : yes :

.

- tool breakage detector : yes :

.

- chip conveyor : yes :

.

- hydraulic system : yes :

.

- central lubrication system : yes :

.
