Spotting Press

Details

pressure:

250 t

table length:

4000 mm

table width:

3000 mm

Controls:

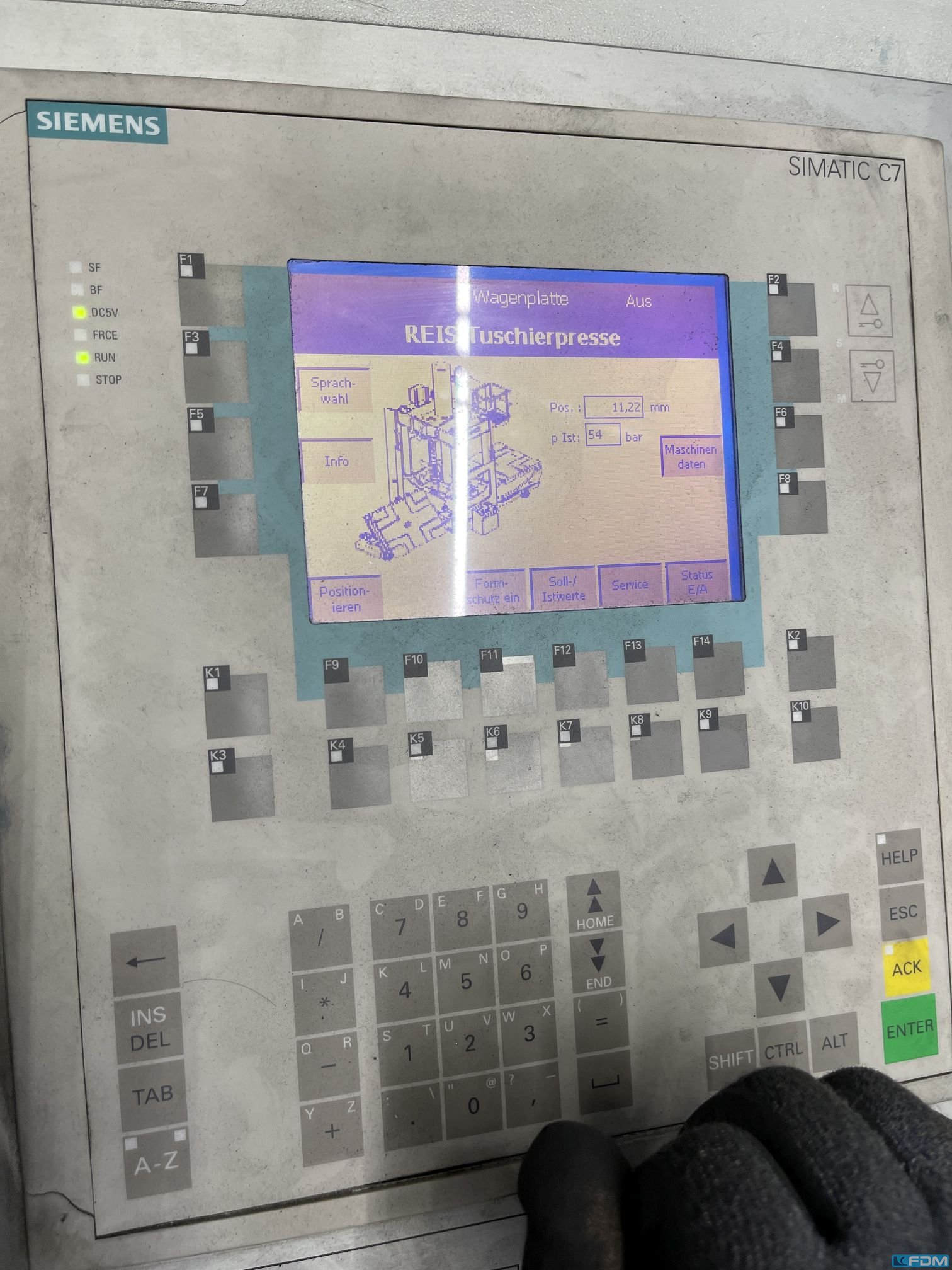

SIEMENS SIMATIC C7

PRESS DESIGN:

.

- frame design : 4 column :

.

- moving bolster : yes :

.

PRESS FORCES:

.

- total force (nominal):

250 to

PRESS TABLE:

.

- clamping surface (left-right):

4000 mm

- clamping surface (front-back):

3000 mm

- tool weight max.:

100000 kg

- number of T-slots:

12

- distance between T-slots:

375 mm

- height above floor level:

390 mm

RAM:

.

- clamping surface (left-right):

4000 mm

- clamping surface (front-back):

3000 mm

- number of T-slots:

12

- distance between T-slots:

375 mm

- stroke:

2900 mm

- tool weight max.:

50000 kg

RAM (HYDR. PRESS):

.

- number of main-cylinders:

1

- approximation velocity max.:

180 mm/s

- working velocity max.:

50 mm/s

- restoring force of ram:

95 to

TOOL ASSEMBLY DIMENSIONS:

.

- distance table - ram max.:

2750 mm

- distance between columns (H-frame):

4100 mm

- Free passage between side columns (width):

1500 mm

ELECTRICAL SPECIFICATIONS:

.

- total power consumption:

62 kW

- mains voltage:

400 V

- mains frequency:

50 Hz

DIMENSIONS / WEIGHTS:

.

- space requirements length:

10200 mm

- space requirements width:

6900 mm

- total height:

8850 mm

- height above floor level:

7930 mm

- height under floor level:

920 mm

- total weight approx.:

120000 kg

ATTACHMENTS FOR PRESSES:

.

- light barrier : yes :

.

Description

Technical description :

HYDRAULIC PRESS FOR DIE SPOTTING IN 4-COLUMN DESIGN
- Moving bolster with max. 100 ton payload
- Swivel carriage with max. 50 ton payload
- Swivel area 180°
- Table area 4000 x 3000 mms
- SICK Light barrier in the swivelling area

Please note that our modern REIS TUS 400-250 is a very hard to find (pre-owned machine) being in such an exceptional beautiful condition, sparingly used and having been regularly serviced.

Here once again we wish to draw up the features of our REIS:
-250ton RAM force and max. table payload 100 ton, whereby 50ton max. payload RAM plate.

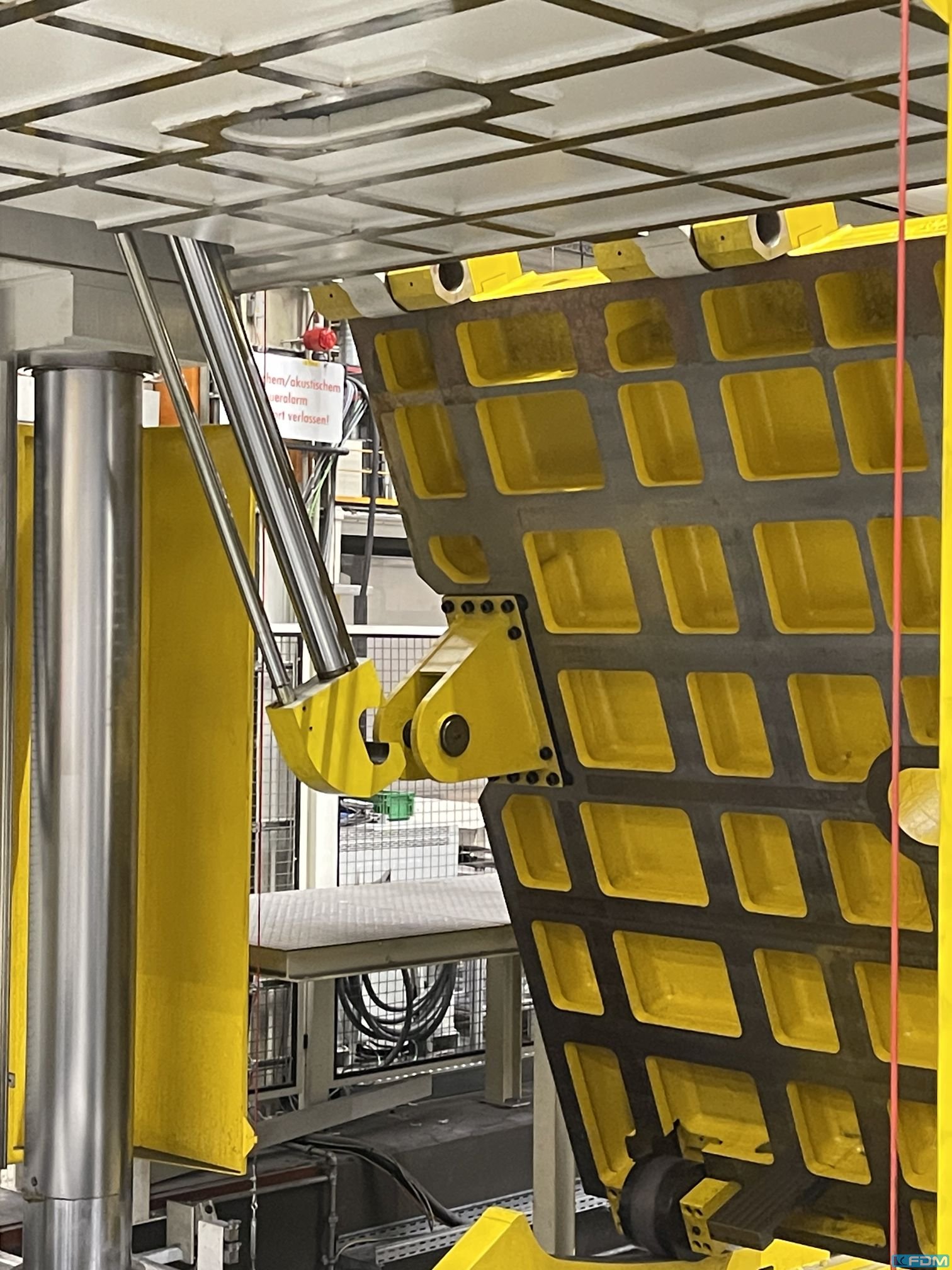

-Table drives out from the front and the ram tilts down on the rear side until floor- level.
-Our REIS has a modern ‚S 7 Control‘
-Our REIS originates from a very clean and modern German Company
