Profile Grinding Machine

Details

grinding length:

1250 mm

grinding width:

600 mm

workpiece height:

730 mm

table surface area:

1720 x 500 mm

headstock: dist. table - spindle center:

900 mm

max. longitudinal movement:

X-1450

feed range:

10 - 20.000 mm/min

vertical movement:

Y-730 mm

feed range:

0,2 - 3.000 mm/min

cross travel:

Z-550 mm

feed range:

5 - 5.000 mm/min

power capacity:

1500 U/min.- 44 kW / 8000 U/min. - 38 kW kW

grinding wheel turining speeds:

50-6.000 U/min

cutting speed:

max. 80 m/sec.

weight of the machine ca.:

11 t

Description

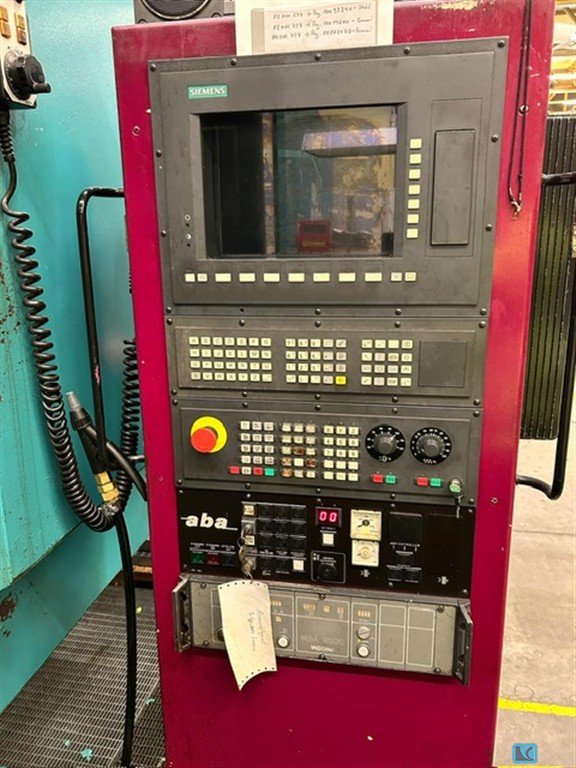

with CNC SIEMENS 840 C
auto. dynamic balncing system integrated in the grinding conus
profile grinding unit ( on table mounted )
Diamant profile rollers ( dia. max 140 mm , width max. 200 mm, hole 52 H3 ) speed 3000 rpm
two magnetic plates ( 1000 x 400 mm, 1200 x 350 mm ) divers Flanges ect.
