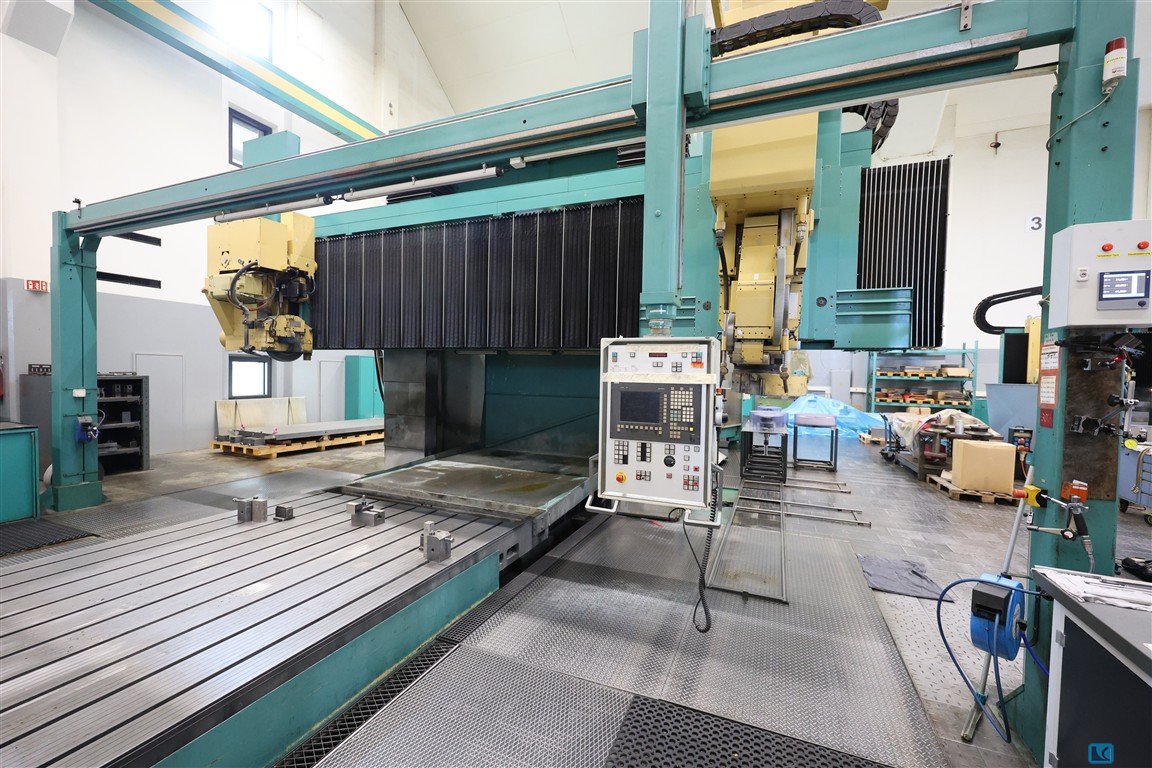

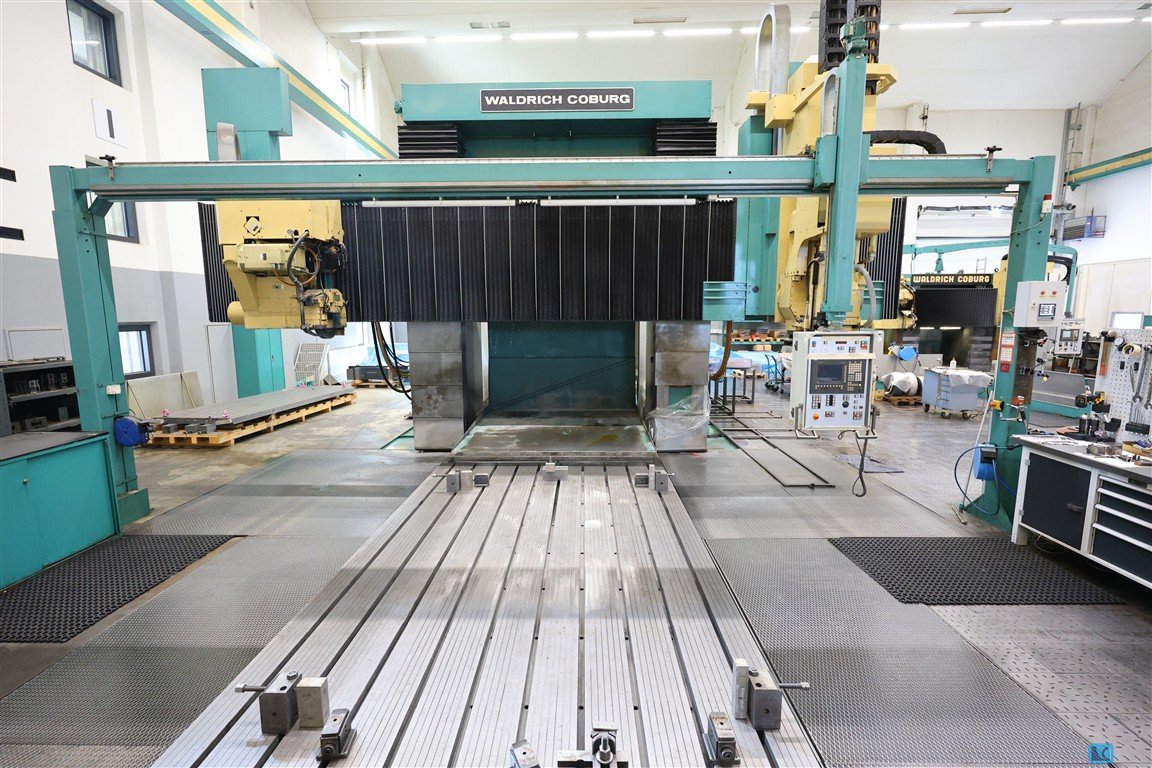

Slideway Grinding Machine

Details

grinding length:

12000 mm

grinding width:

2800 mm

workpiece height:

2510 mm

max. workpiece weight:

24.000 kg

table surface area:

11990 x 2500 mm

distance between columns:

2820 mm

cross rail adjustment:

2510 mm

table feed:

1 - 40 m/min

total power requirement:

110 kW

weight of the machine ca.:

151 t

dimensions of the machine ca.:

32,5 x 9 x 6,73 m

Description

.....machine is in top condition for high precision work!

with CNC SIEMENS 840 D
1 universal grinding head, 22 kW
swivelling of the grinding spindle +/-110°
grinding wheel dimension 700 x 130 mm
vertical stroke 1000 mm
with dressing unit
1 surface grinding head, 30 kW
grinding wheel dimension 600 x 150 mm
vertical stroke 230 mm
with dressing unit
coolant and filtering unit
diverse grinding wheel flanges
