Lathes - Vertical Turret Lathe - Double Column - DÖRRIES-SCHARMANN VC 5000 MC

Vertical Turret Lathe - Double Column

DÖRRIES-SCHARMANN VC 5000 MC

Stock number:
1034-13789
Year / Condition:
2009 / used
Control unit:
CNC (SIEMENS 840 D)
Country of origin:
Germany
Freight basis:
ex site
Item location:
Germany
Delivery time:
immediately

Picture / documents / videos

Technical specs

Details

faceplate diameter:
4500 mm
swing diameter:
5000 mm
turning height:
2645 mm
cross rail adjustment - vertical:
1500 mm
max. ram stroke:
2000 mm
ram head dimension:
300 x 300 mm
faceplate turning speed range:
0,4 - 95 U/min
main drive:
2 x 80 kW
workpiece weight:
80000 kg

Description

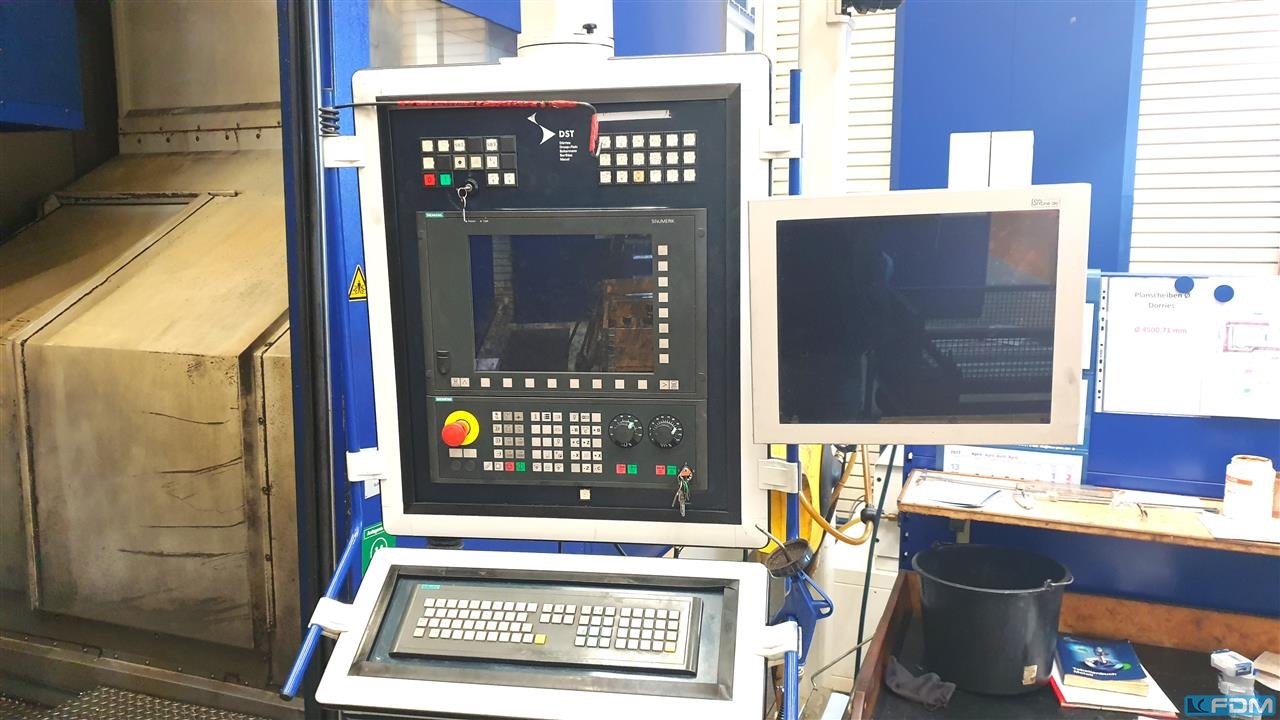

CNC SIEMENS 840 D
C-axis driven tooling HSK 100 , 37 kW 3000 rpm.
hydrostatic linear guideways
UWFK Milling Head 500 Nm +/- 90°, tool and component measuring probe
tool and process monitoring ARTIS CTM-System
videocamera
tool magazine ( positioned on the floor ) for turning and milling tools and
stations for Milling Heads
complete closed working area protection
coolant attachment with filtering unit, swarf conveyor
diverse toolholders
