CNC Turning- and Milling Center

Details

turning diameter:

275 mm

turning length:

900 mm

spindle passage:

65 mm

power capacity at 100 % load:

25/20 kW

spindle turning speed range:

1 - 5000 U/min

spindle diameter in front bearing:

110 mm

c-axis:

1 - 500 U/min.

number of workpiece supports:

4

tool turret:

1

x-axis:

290 mm

y-axis:

165 mm

z-axis:

360 mm

b-axis:

360 °

rapid speed:

18/30 m/min

number of tools:

2x2 + 2x2

number of driven tools:

2x2 + 2x2 mm

toolpiece turning speed range:

8000 / 2000 U/min

power capacity:

25% ED 5,8 kW

tool taper:

TRAUB 60

tool turret:

2/3/4

x-axis:

170 mm

z-axis:

600/950 mm

y-axis:

+/- 60 mm

rapid speed:

18/15/30 m/min

number of driven tools:

10 mm

toolpiece turning speed range:

1 - 6000 U/min

power capacity:

25% ED 5,8 kW

tool taper:

DIN 69880 40 x 63

total power requirement:

95 kW

weight of the machine ca.:

16 t

dimensions of the machine ca.:

10,0 x 3,5 x 3,0 m

Description

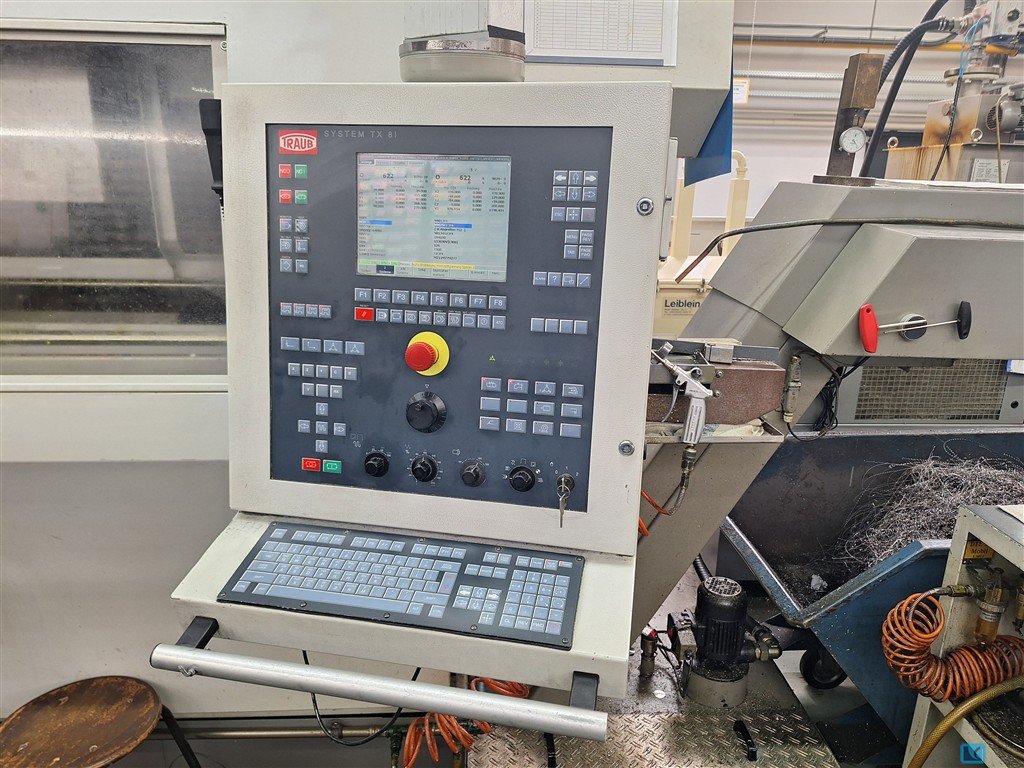

with CNC TRAUB TX 8i, Barloader TRAUB Stamag DNH61 / 3000,
Main and Sub spindle with C-axis
1 support with B-axis

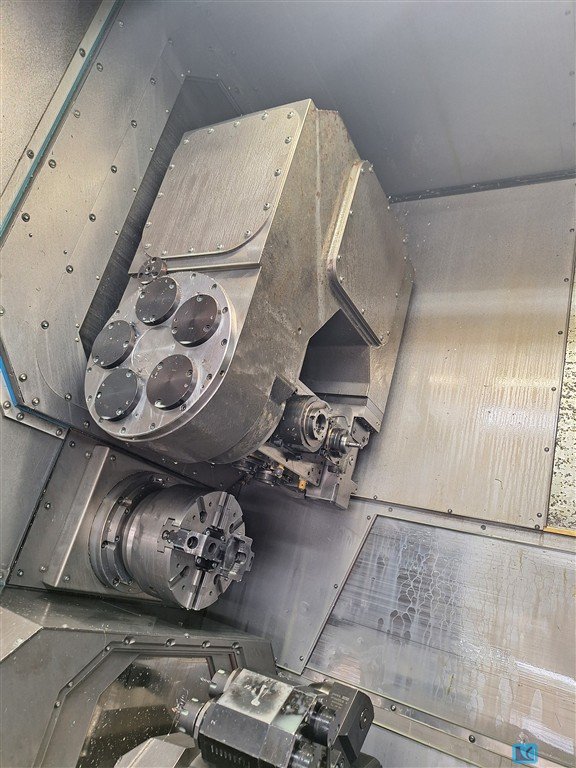

3 turret supports

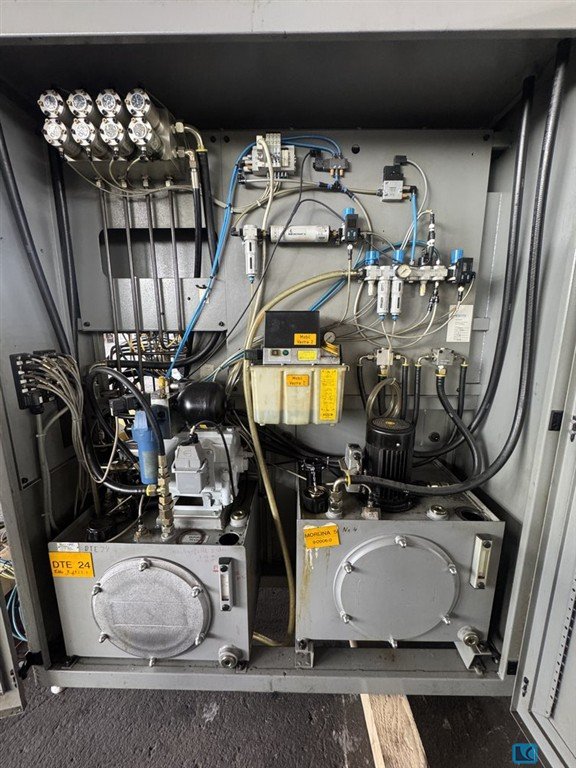

dust exhauster, coolant attachment with coalescence-seperator and chip conveyor
2 pc. 3-jaw chuck SMW KNCS-N 170-43
2 pc. HAINBUCH Spanntop chuck
40 pc. various tool holder non-driven
6 pc various tool holder driven
Spare parts package
