Turning Automatic Lathe - Longitudinal

Details

turning diameter over bed:

20 mm

spindle passage:

3-20 mm

turning length:

250 mm

control:

FANUC 31 i-A

main-spindle speed:

10.000 1/min

subspindle speed:

10.000 1/min

Main spindle capacity:

3,7 kW

subspindle power:

2,2 kW

number of tools:

35

weight of the machine ca.:

3,3 t

dimensions of the machine ca.:

2,11 x 1,2 x 1,89 m

Description

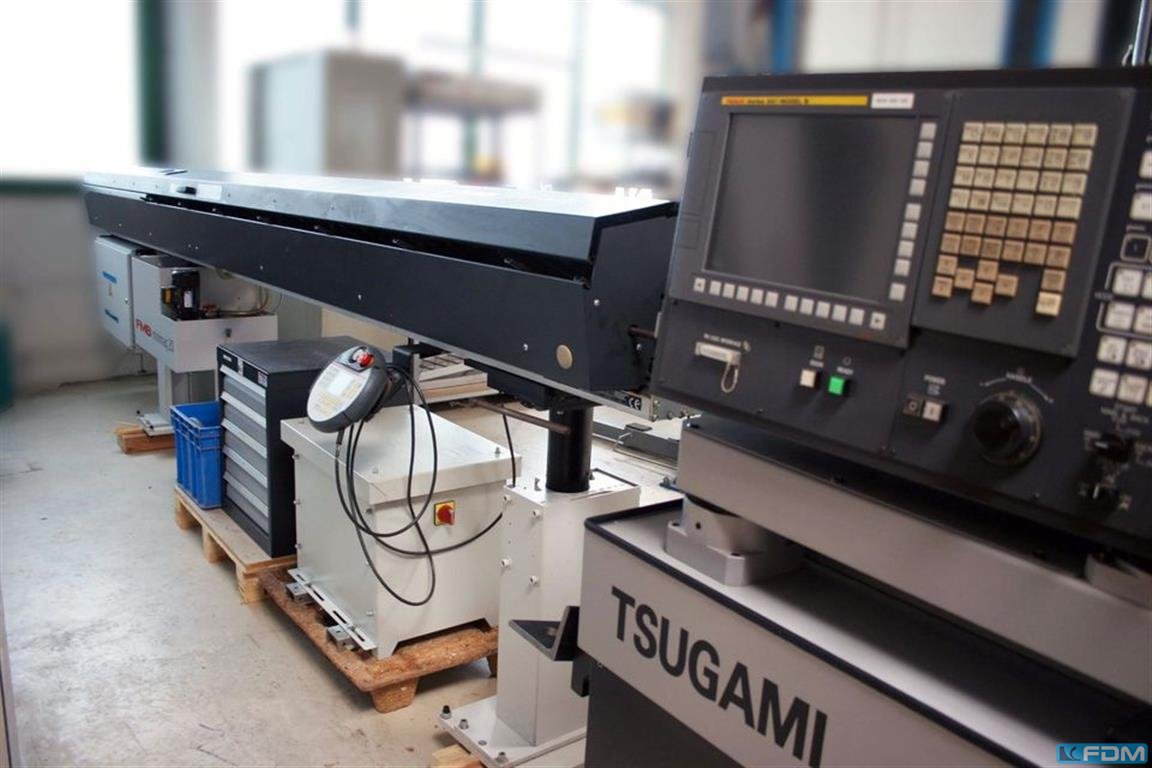

CNC sliding headstock turning/milling centre with B-axis
Control system: Fanuc 31i-A
Machining length: max. 250 mm
Number of controlled axes: 7 axes and max. 5 axes simultaneously
B-axis: 0°-130° freely programmable
Rod passage: Ø 3 mm to max. Ø 20 mm
Drive power main spindle: 3.7 kW
Drive power counter spindle: 2.2 kW
Main spindle speed: 10,000 rpm
Counter spindle speed: 10,000 rpm
C-axis: Main and counter spindle
Number of linear supports: 2 pieces

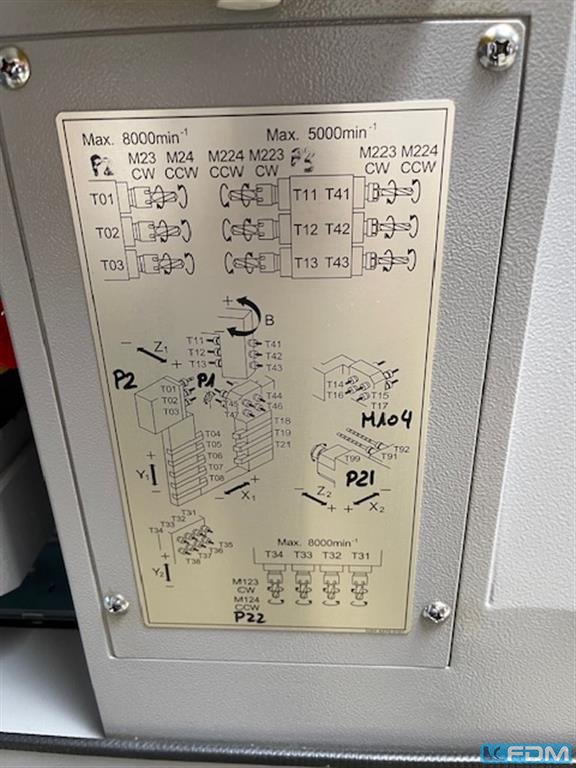

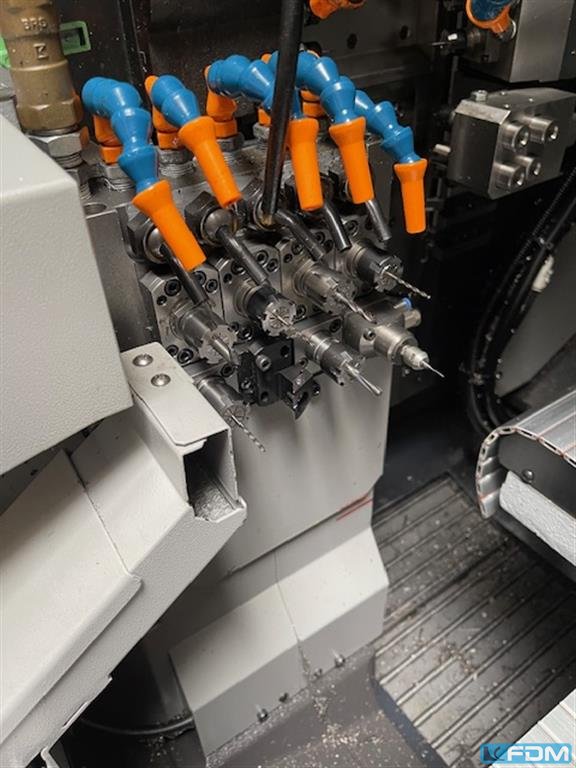

Total number of tools: 35 pieces
Dimensions (LxWxH) in mm: 2,110×1,200×1,885
Weight: 3,300 kg
Conversion from long to short turning
Deep hole drilling stations
NAKANISHI high-speed spindle
Rear slide with Y-axis
Cross drilling rear side
Chip conveyor
Fire extinguishing system
FMB bar loader Minimag 20, year 2012
Approx. 7.200 working hours
