Measuring- and Marking Machine

Details

x-travel:

600 mm

y-travel:

fest mm

z-travel:

650 mm

weight of the machine ca.:

ges. 0,124 t

dimensions of the machine ca.:

0,7 x 1,0 x 1,05 m

Description

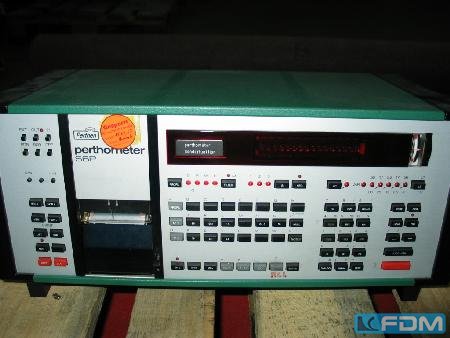

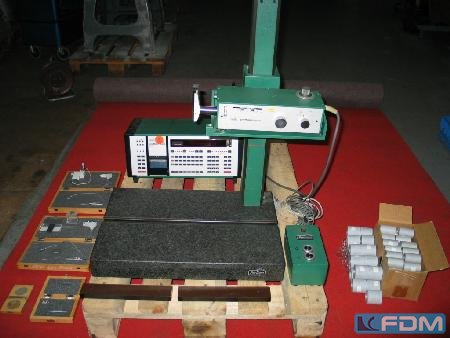

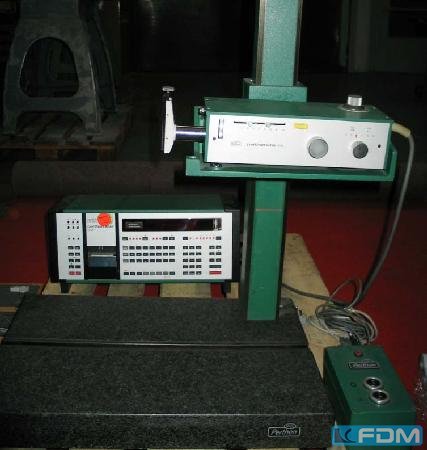

surface measuring, testing and evaluating unit for roughness and unevenness parameters with measuring post and feed device, incl. data logger with profile memory and full digital measured-value processing, fully programmable, evaluation according to different evaluation programs with single measuring run, reference-plane measuring on badly aligned, curved and tilted surfaces, automatic correction of height offset and tilt, measuring program with permanent storage and quick access, clearly arranged control elements, universal by plug-in program module for special functions, measuring post PST-Se, large black granite base plate with a 14 mm T-slot, table 650 x 450 mm, PRK feed device, adaptable precision scanning device for roughness, unevenness and form measuring, tracing length 1,5-60 mm,
guidance accuracy 2 µm, tracing speed 0,5 and 0,1 m/s, automatically adjustable, return speed 1,5 m/s, standard - interval and terminal contact operation, extensive accessories, exchange calliper, calliper height-adjustable, calliper holder, calliper, etc.
