Vertical Turret Lathe - Double Column
TITAN SC 27
- Stock number:
- 1007-6414
- Year / Condition:
- 2009 kompl. überholt / used
- Control unit:
- CNC
- Country of origin:
- Romania
- Freight basis:
- ex Warehouse
- Item location:
- D-40721 Hilden NRW
- Delivery time:
- immediately
Picture / documents / videos
Technical specs
Details
- faceplate diameter:
- 2500 mm
- swing diameter:
- 2650 mm
- turning height:
- 1900 mm
- workpiece weight:
- 15000 kg
- turning speed range - faceplate:
- 1,24 - 112 U/min
- vertical adjustment of the crossrail:
- 1500 mm
- crossrail -rapid travel:
- 400 mm/min
- ram head swiveling:
- +/- 35 °
- ram head - cross travel:
- 1450 mm
- ram head - vertical travel:
- 1200 mm
- feeds:
- 1 - 4000 mm/min

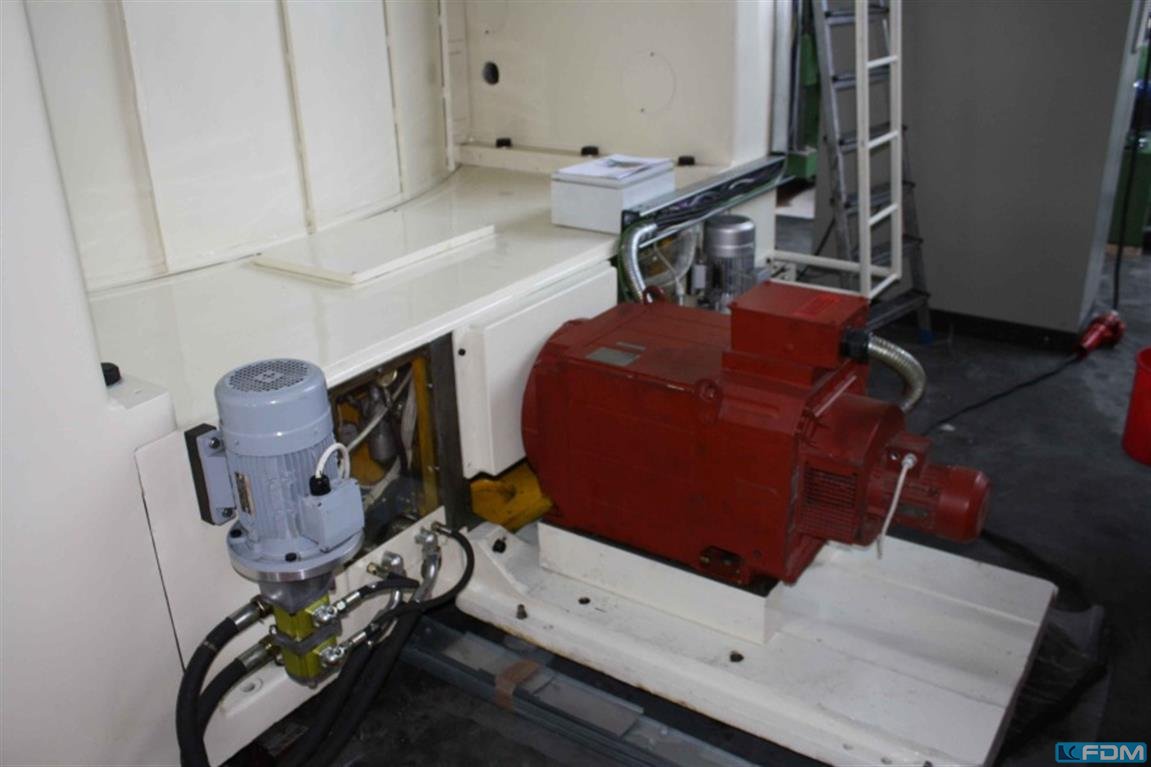

- main drive motor:
- 55 kW
- voltage:
- 380 V
- frequency:
- 50 Hz
- total power requirement:
- 75 kW
- weight of the machine ca.:
- 38000 kg
- dimensions of the machine ca.:
- 5700 x 4900 x 6500 mm
Accerories
- 12-fold tool changer with automatically tool clamping
- tool holder
- 2
- Levelling shoes
- clamping jaws
- 4
Description
The machine was geometrically retrofitted in 2009, equipped with latest CNC control Siemens SINUMERIK 840 D and was not used since
The TITAN SC 27 is suitable for machining of middle sized cast iron and welded blanks. Turning, inner and outer threading
and grooving are the main operations. Both columns of the TITAN SC 27 generate together with the upper beam a stiffly
frame to ensure a high statical accuracy. The columns are made of cast iron and they are bolted and doweled with the upper
beam. This construction guarantees a high cutting force. The cross-rail is provided with 4 guideways for a high accuracy of
the support travel. Indexing rails are mounted on the columns to fix the cross-rail each 200 mm. The swivelling support is
hydraulically balanced. The faceplate is supported by two taper roller bearings, which ensures high concentricity of table
(faceplate). The machine is equipped with a CNC control Siemens SINUMERIK 840 D, Heidenhain measuring systems,
Siemens motors, electrical cabinet by Siemens and a 12-fold tool changer. All guides are retrofitted or changed respectively.
Attachments:
- Heidenhain measuring systems
- 3-stage main gear
- Slide travel by stepless ZF-reduction gear and pre-tensed ball screw
- Ram travel by stepless ZF-reduction gear und ball screw
- Slide and ram bearing through TURCITE®-B plates
