Dreh- und Verschiebetisch

Details

Aufspannfläche (links-rechts):

2000 mm

Aufspannfläche (vorne-hinten):

2000 mm

Werkstückgewicht:

20 t

Beschreibung

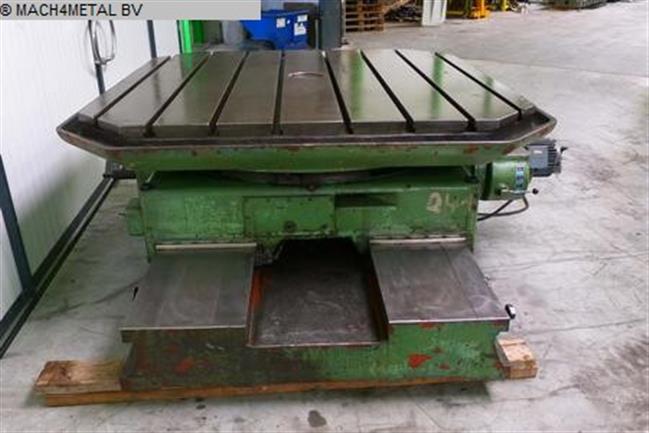

SKODA Rotary table E 20

-Make: Skoda - Pilzen
-Typ: E 20
-Mach.No: Ob 17400
-Age: 1962

-X - travel : 1.300

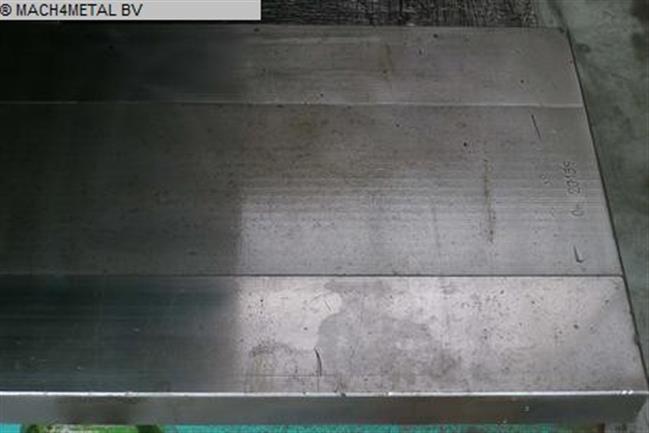

-Table length: 2.000
-Table width: 2.000
-Working height: 900

-Loading capacity 20.000 Kg

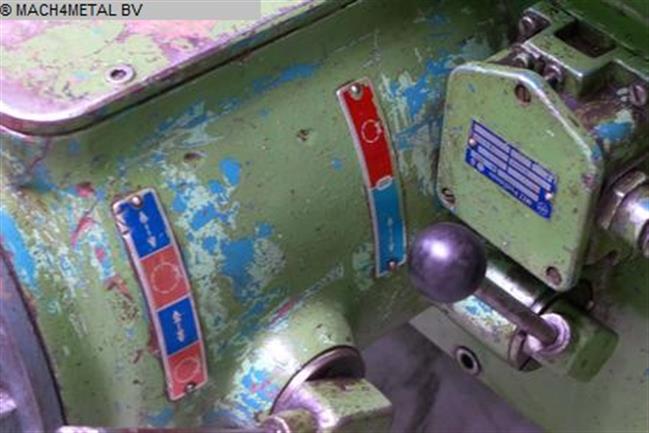

-Electric Left & Right function
-Electric Movement in X travel

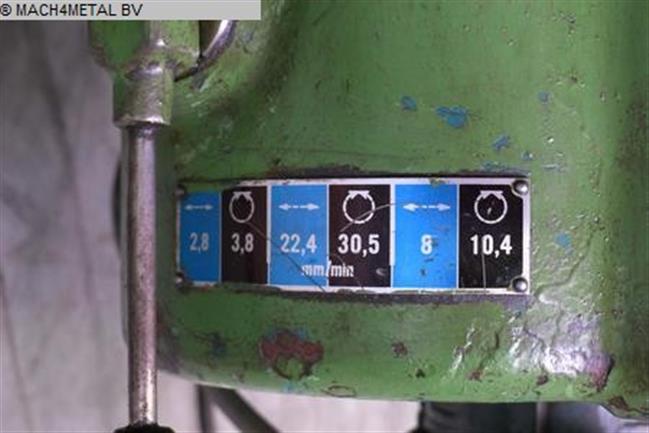

-Longidutinal feeds 2,8 - 8 - 22,4 mm/min
-Rapid speed traverse 1245 mm/min.

-Table rotation feeds 3,8 - 10,4 - 30,5
-Rapid speed 2000 mm/min.

-Feed motor 4 kW
-Width of double bed guidway 450 mm

-Dimensions:
-Length: 3.500
-Width: 2.650
-Height: 900
-Weight : 6.300

-Optical readout position Gr.° table
-Remote control movement table
-Power in feed & rotation
-Build in lifting bars
