Schwerdrehbank

Details

Drehdurchmesser über Bett:

1040 mm

Drehdurchmesser über Support:

690 mm

Drehlänge:

6000 mm

Gesamtleistungsbedarf:

25 kW

Beschreibung

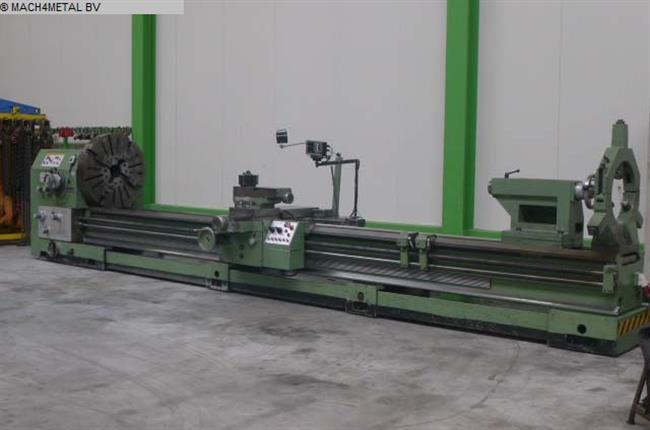

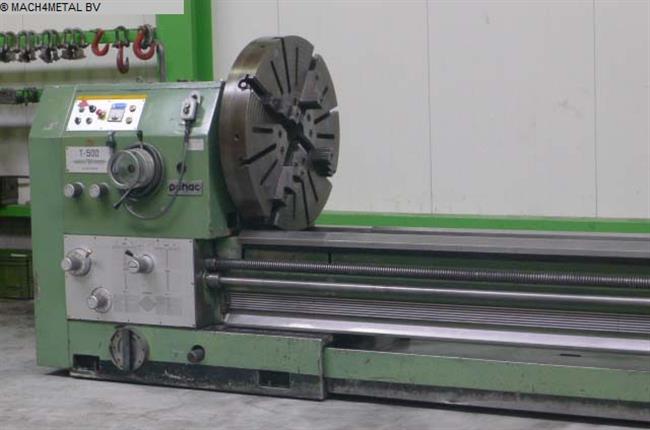

Lathe PBR Legnano T 500 / 6000

-Make: PBR Perico Baroni & Raimondi
-Type: T 500 / 6.000
-Age: 1979
-No: 50 / 125

-Swing over bed: 1.040
-Swing over support: 690
-Swing in the gap: 1.300
-Centre distance : 6.000
-Bed width: 670
-Spindle holeØ: 150

-Workpiece weight: 6.000 Kg
-Flying in chuck: 1.500 Kg
-4 Chuck Ø: 1.000 mm

-Power : 30 Hp
-Speeds : 24 x: 2 t/m 800 Rpm
-Feeds: 0.05 t/m 22.4 mm/Omw.
-Rapid : 5.000 / 2.500

-Dimensions Weight ca. 10.200 Kg
-Spindle taper Mk
-Pinole Ø 150 / 420 Length

-Incl. 4 chuck Ø 1.000 mm
-Incl. 2 axis readout system
-Incl. steady rest

-Incl. Documentation
-Good running order
