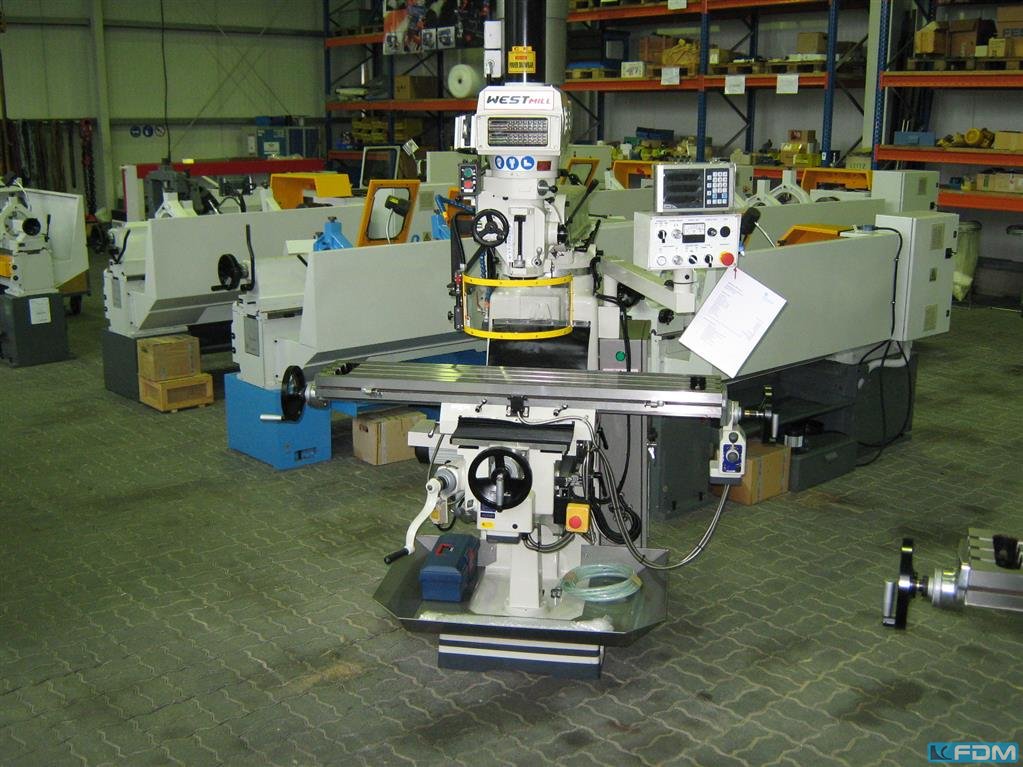

Milling machines - Knee-and-Column Milling Machine - WESTMILL 4IV

Knee-and-Column Milling Machine

WESTMILL 4IV

Stock number:
3003-1598
Year / Condition:
* / Neu (Ebay)
Control unit:
conventional
Country of origin:
Taiwan
Freight basis:
at stock
Item location:
Stock Münster
Delivery time:
immediatly

Picture / documents / videos

Technical specs

Details

x-travel:
970 mm
y-travel:
390 mm
z-travel:
355 mm
Table dimensions:
1372 x 254 mm
number of T-slots:
T-slot - width:
28 mm
Quill travel:
127 mm
pinole diameter:
100 mm
45°
milling head -swivable:
90° Grad
spindle taper:
DIN 2080 SK40
main drive:
3,7 kW
quill feed:
0,04 / 0,08 / 0,15 U/min
spindle turning speed - stepless:
70 - 4200 U/min
weight approx.:
1450 kg

Features












rapid traverse x / y / z-axis
