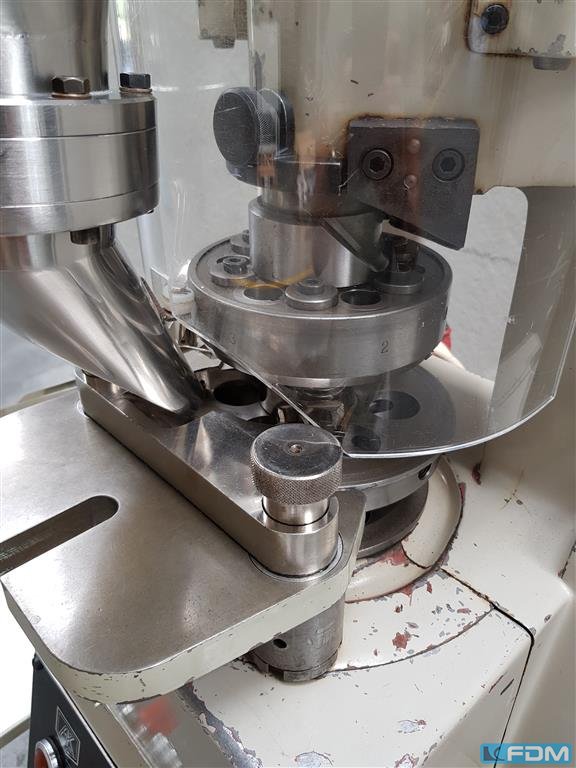

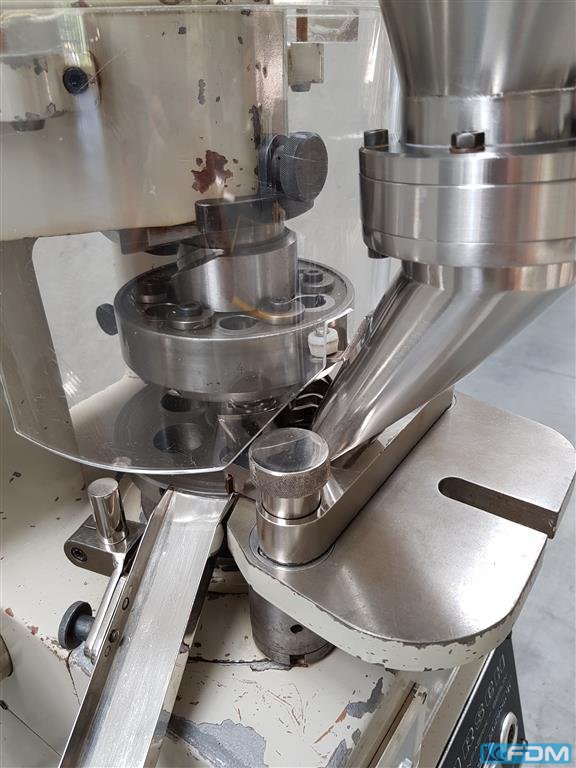

Rotary tablet press
Korsch Pharmapress 106
- Stock number:
- 1300-06-0391
- Year / Condition:
- 1969 / used
- Control unit:
- conventional
- Country of origin:
- Germany
- Freight basis:
- ex works, free on truck
- Item location:
- DE-Stapelfeld
- Delivery time:
- Upon agreement
Picture / documents / videos
Technical specs
Description
• 6 punching stations with keyed turret for upper and lower punch
• pressing capacity max. 40 kN, with pre-pressing rail for progressive pre-pressure
• tablet-diam. max. 15 mm
• filling depth max. 15 mm
• output 5.400 - 32.400 tabl./h
• gravity feeder for granulated and fine grained materials, not suitable for fine powdered materials
• available tool sets (Korsch tooling):
- diam. 7 mm, concave/concave (6 pcs.)
- diam. 10 mm, concave/concave (5 pcs. + 1 blind die)
- diam. 13 mm, flat/flat with facet (5 pcs. + 1 blind die)
- diam. 15 mm, flat/flat (6 pcs.)
• s/s and plastic filling funnel
• mobile
• electr. connection 400V/50Hz
