Foil-wrapping machine with shrinking tun
Kallfass KC 5040
- Stock number:
- 1087-1200214
- Year / Condition:
- 1993 / Used
- Control unit:
- conventional
- Country of origin:
- Germany
- Freight basis:
- EXW, free on truck unpacked
- Item location:
- Leipzig 3
- Delivery time:
- immediately
Picture / documents / videos
Technical specs
Details
- mould plates - length / width:
- 500 x 400 mm
- Heating:
- Zweistufen Heizung 4,6 und 6,0 kW

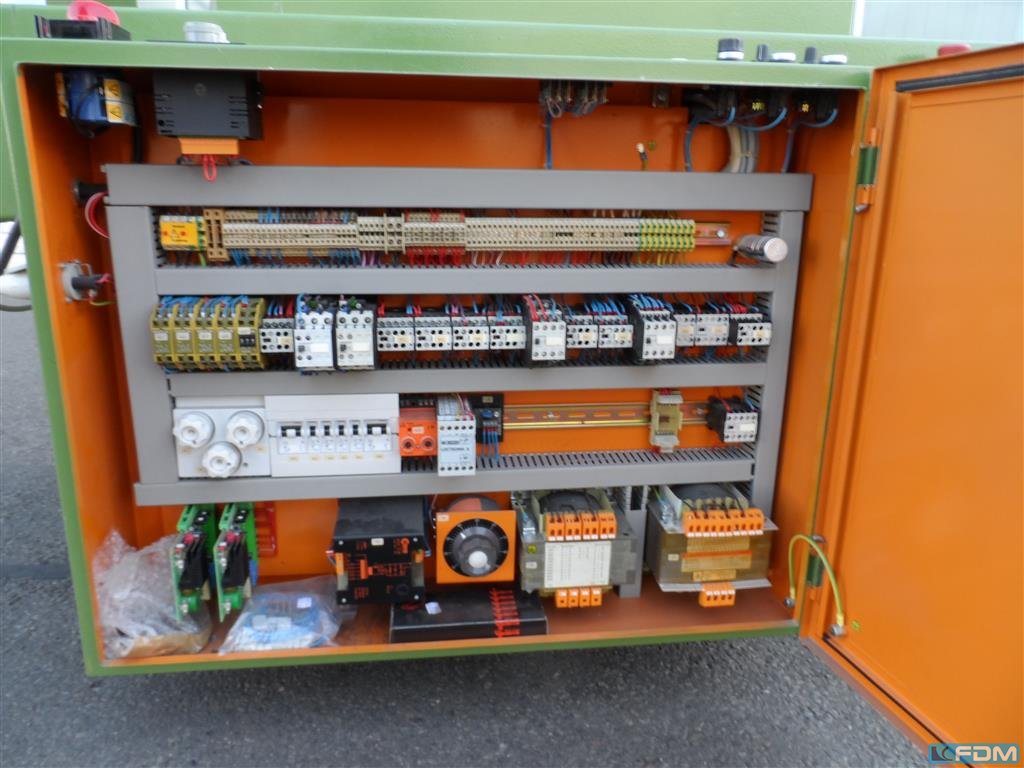

- control:
- SPS
- voltage:
- 380 V (3x 20A) / 24 DC V
- work height adjustable:
- 870 - 970 mm
- total power requirement:
- 6 + 2,5 kW
- dimension machine approx.LxWxH:
- 2,8 x 1,1 x 1,3 m
- weight:
- 570 kg
Description

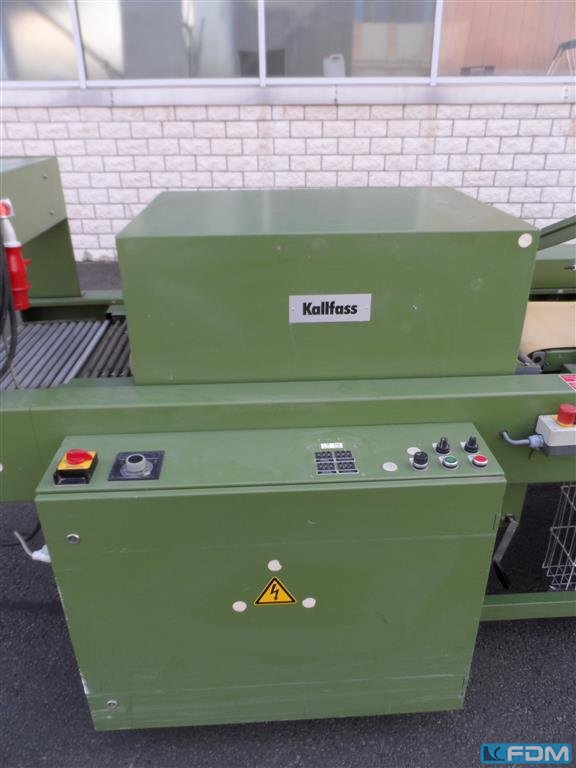

Compact angle welding machine with shrink tunnel
PACKAGING MACHINE WITH SHRINK TUNNEL AND COOLING STATION AND SPECIAL COOLING FAN
movable/mobile
Application areas/products:
-div. brochures, plans or other made of paper/cardboard in DIN A 5 / DIN A 6
Applicable films: all half tube shrink films up to 0,060mm
Welding system = impulse welding, with teflonized separation seam, adjustable
automatic transport of goods into the shrink tunnel
further details:
-Tunnel passage width: 450mm
-Tunnel passage height adjustable to 100, 200, 300 and 400mm
-length of the heatable tunnel hood 900mm
-Prod. output of the machine depends on product and film 5 to 20 cycles / minute (manufacturer's data)
-max. film width (folded half tube) 550 / 550mm at 25 - 50 my
-frame dimension 500 x 500 x 290 mm = max. Verpackungsmaß
Heating:
-two stage heating 4,6 and 6,0 kW
-Fan infinitely variable
Cooling station:
-outlet 300mm
-with blower

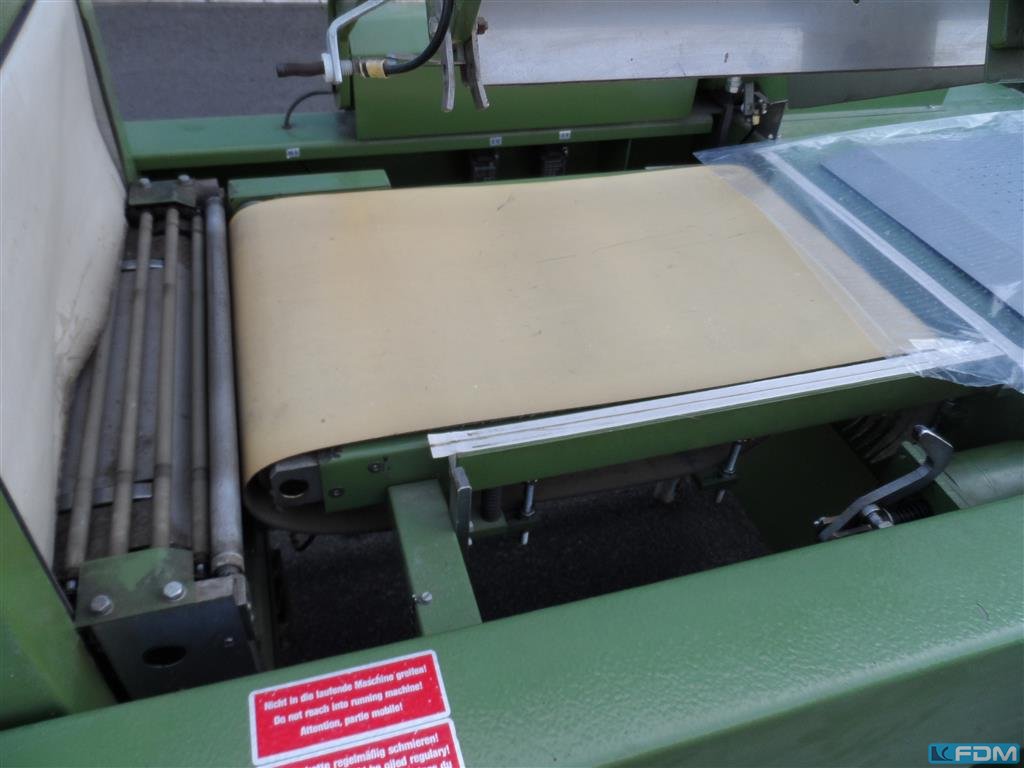

Conveyor belt:
-feed rate 2.5 - 12 m/min
-steplessly adjustable
i.d.
