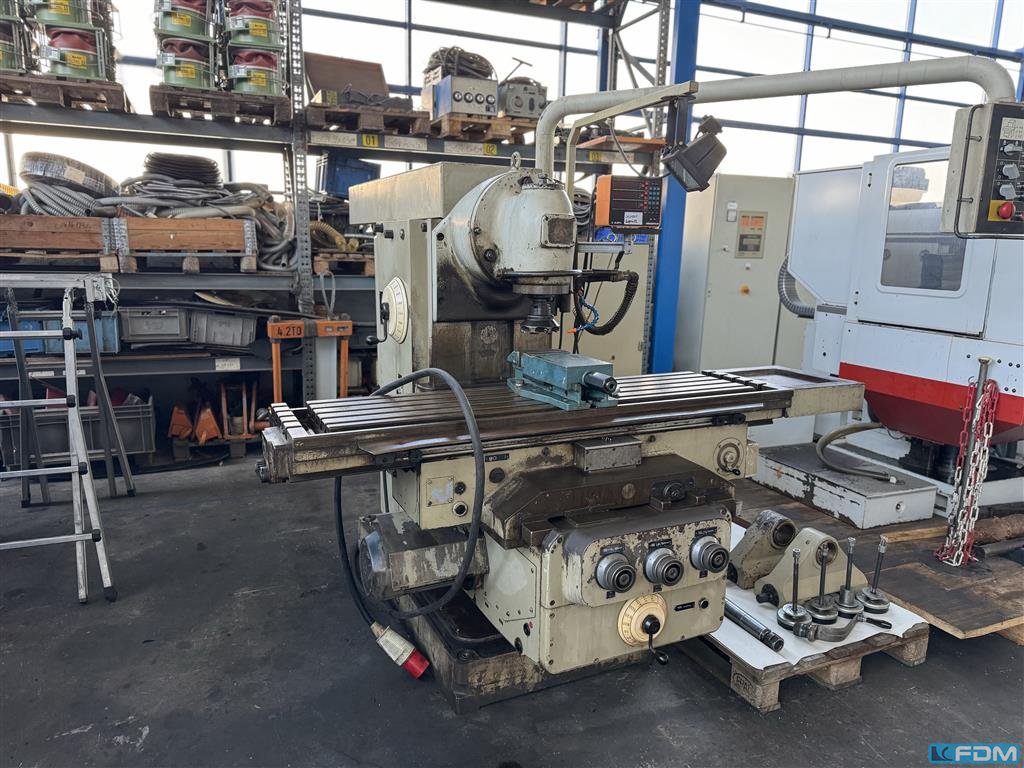

Universal Milling Machine
WMW FW 4.5
- Stock number:
- 1087-0401001
- Year / Condition:
- 1986
- Control unit:
- conventional
- Country of origin:
- Germany
- Freight basis:
- EXW, free on truck unpacked
- Item location:
- GOG Bitterfeld
- Delivery time:
- immediately
Picture / documents / videos
Technical specs
Details
- x-travel:
- 1120 mm
- y-travel:
- 345 mm
- z-travel:
- 400 mm
- spindle taper ISO:
- SK50
- spindle head swivable left - right:
- 90° °
- Distance rear edge of table to column guideway:
- min./max.: 125 / 470 mm
- max. torque on the spindle:
- 280 kpm
- range of revolution per miute:
- 28 - 1400 / 18step U/min
- feed::
- X/Y: 16 - 800 und Z: 5 - 250 mm/min
- Table dimensions:
- 1600 x 460 mm
- table surface area:
- 1400 x 330 mm
- table load:
- 1,5 t
- total power requirement:
- 14,5 kW
- machine weight approx.:
- 3900 kg
- dimension machine approx.LxWxH:
- 2,7 x 2,0 x 2,1 m

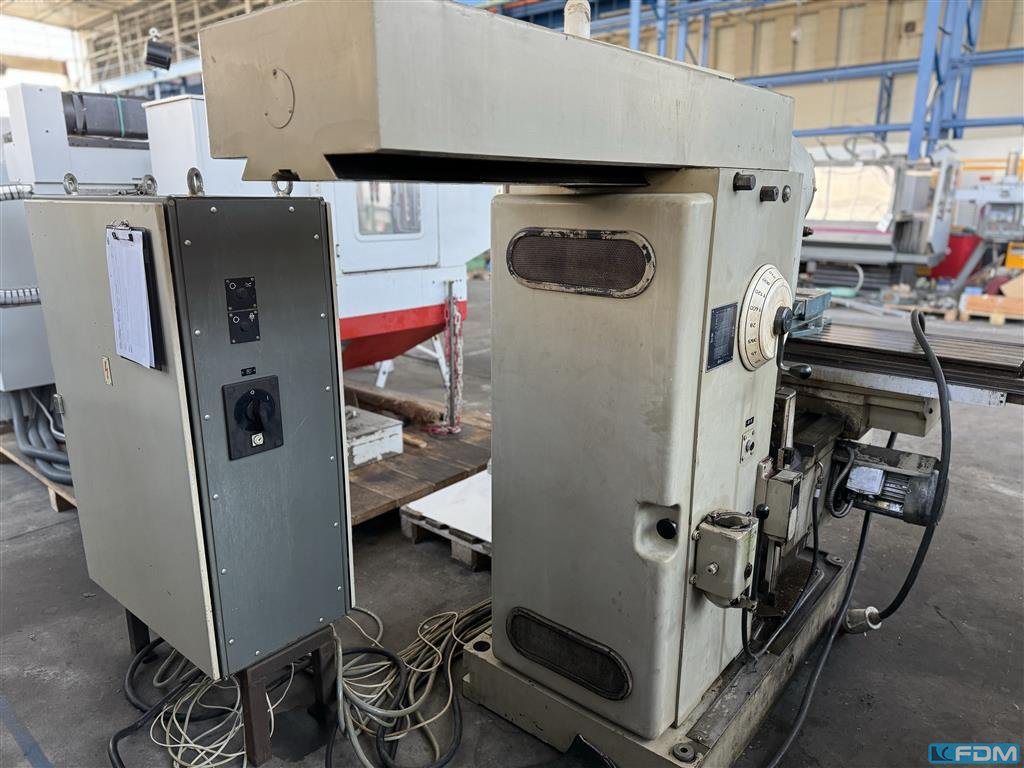

- dimensions electric cabinet:
- 0,47 x 0,8 x 1,5 m
Description
Ausstattung:
3-Wegemesseinrichtung EISTA VISULESTA II E
Zubehör:
Maschinenschraubstock 155mm

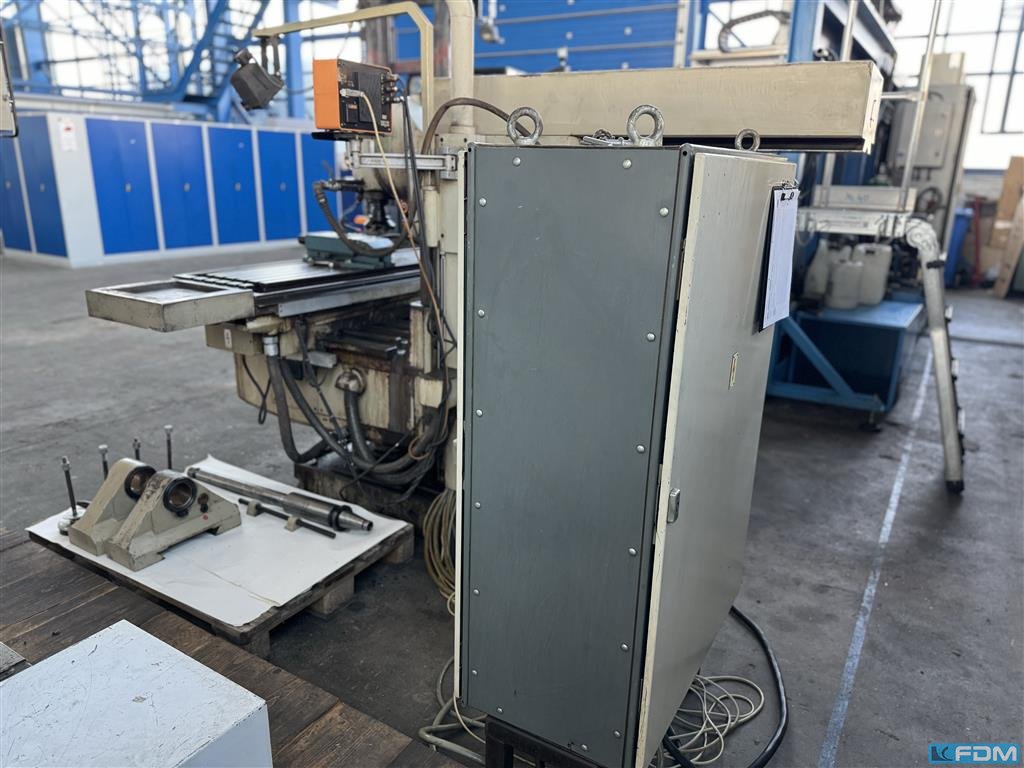

2x Gegenhalter und Welle
4x Maschinenfüße
2x Kurbeln (für Masch.tisch und für Schraubstock)
