Milling Machine - Vertical

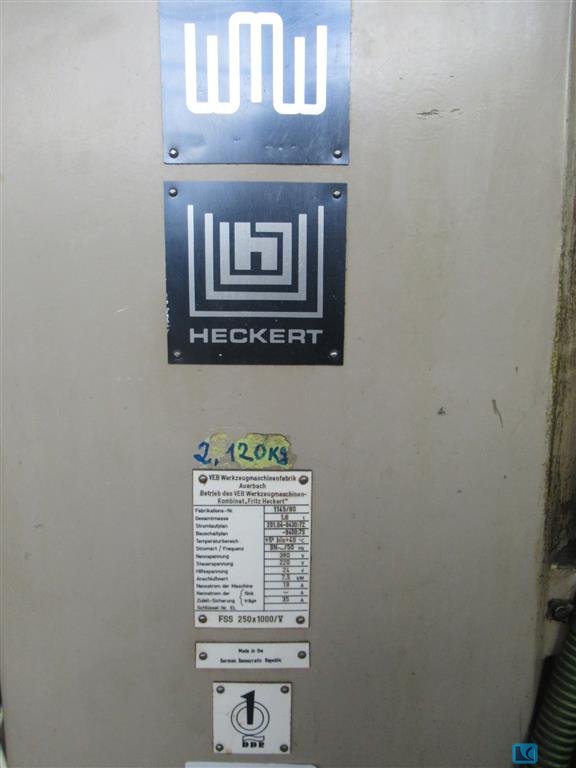

WMW FSS 250x1000
- Stock number:
- 1087-0400574
- Year / Condition:
- 1980
- Control unit:
- conventional
- Country of origin:
- Germany
- Freight basis:
- EXW, free on truck unpacked
- Item location:
- Leipzig 1
- Delivery time:
- on request
Picture / documents / videos
Technical specs
Details
- x-travel:
- 820 mm
- y-travel:
- 300 mm
- z-travel:
- 485 mm
- spindle taper ISO:
- SK 40
- spindle head swivable left - right:
- 0 - 45° rechts/links °
- quill travel:
- 80 mm
- range of revolution per miute:
- 56 - 355 und 450 - 2800 U/min
- feed::
- X/Y: 10 - 80 und 80 - 630 mm/min
- rapid traverse :
- X/Y: 3150mm mm/min
- Table dimensions:
- 1700 x 400 mm
- table surface area:
- 1120 x 205 mm
- total power requirement:
- 7,5 kW kW
- machine weight approx.:
- 2120 kg
- dimension machine approx.LxWxH:
- 1,7 x 1,7 x 2.5 m
Description
additional features:
-Table adjustment via machine see X/Y and Z data
-table adjustment by hand X/Y/Z: 850/330/505mm
milling arbor reception max. Ø 40mm
operation via control panel
incl. 4 pieces foot plates
