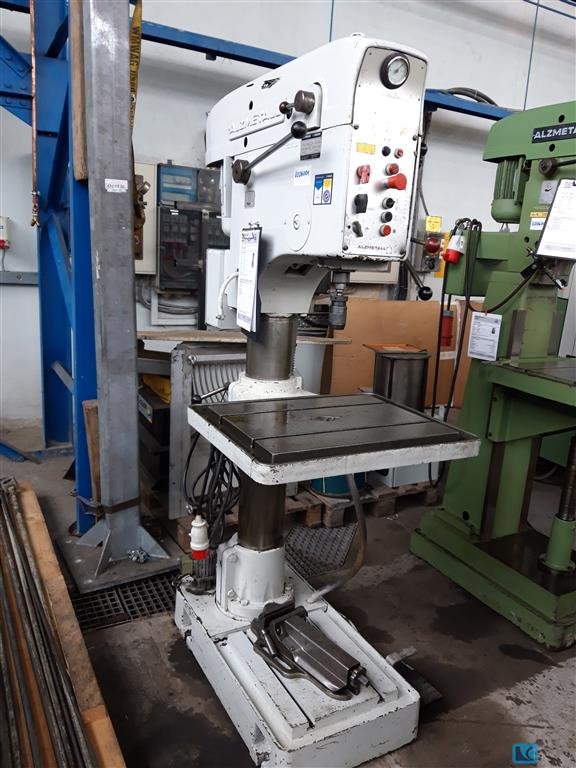

Pillar Drilling Machine
ALZMETALL AB4SV
- Stock number:
- 1087-0206001
- Year / Condition:
- nicht bekannt
- Control unit:
- conventional
- Country of origin:
- Germany
- Freight basis:
- EXW, free on truck unpacked
- Item location:
- Leipzig 1
- Delivery time:
- immediately
Picture / documents / videos
Technical specs
Details
- bore capacity in steel (diameter):
- 28 mm
- throat:
- 345 mm
- bore stroke:
- 190 mm
- drill capacity in cast iron:
- Ø 35 mm
- spindle taper MT:
- MK 4
- spindle speed::
- 50 - 1280 / 4 steples U/min
- feed:
- 0,1; 0,2, 0,3 manuell/automastic mm/U
- Distance spindle/table max.:
- 200 - 800 mm

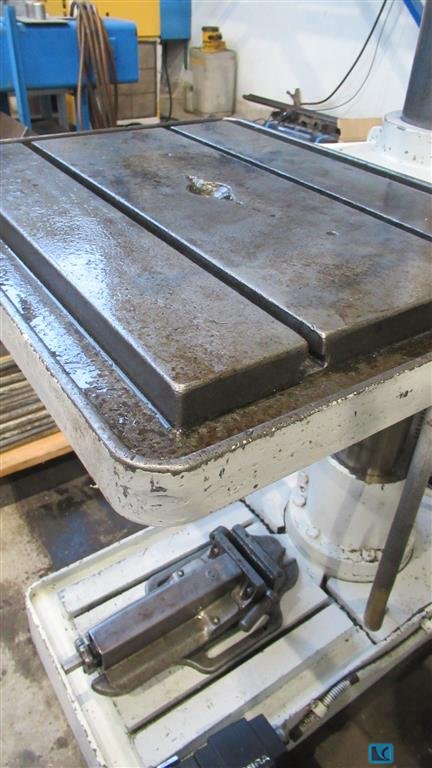

- table clamping surface::
- 450 x 600 mm
- table rotating:
- 360 °
- table adjustment:
- vertical 600 mm
- column diameter:
- Ø 160 mm
- weight of the machine ca.:
- 273 kg
- dimension machine approx.LxWxH:
- 1,0 x 0,71 x 2,0 m
Description
Thread cutting with right and left rotation via foot switch
Table adjustment via hand crank
Without coolant tank
Machine vice

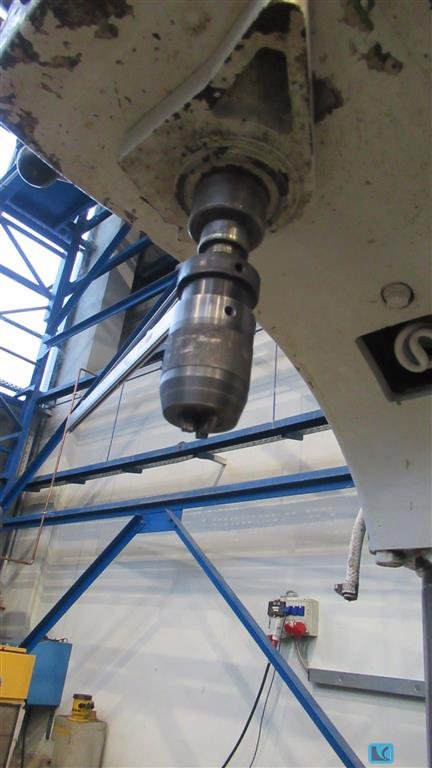

Quick-action clamping chuck Röhm Supra 3 - 16mm
i.D.
