Hydraulic Double-Column (Drawing) Press
LUIGART DRPY 450 SO
- Stock number:
- 1050-203032V
- Year / Condition:
- 2003 / used

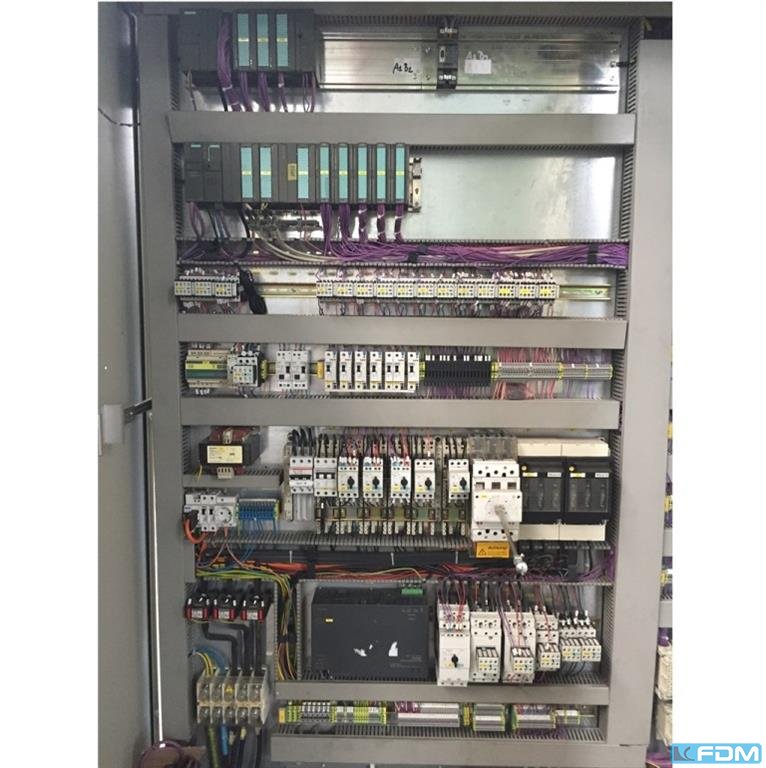

- Control unit:
- PLC (Siemens S 7)
- Country of origin:
- Germany
- Freight basis:
- EXW, free loaded to truck
- Item location:
- warehouse Salach, Baden-Württemberg
- Delivery time:
- according agreement
Picture / documents / videos
Technical specs
Details
- pressure:
- 450 t
- distance between columns:
- 2850 mm
- stroke:
- 1300 mm
- distance table/ram, max. stroke up, adjustment up:
- 2400 mm
- table surface area:
- 2500 x 1500 mm
- side window:
- 1500 mm
- ram surface:
- 2500 x 1500 mm
- Speed down:
- 400 mm/s
- Speed up:
- 400 mm/s
- Working speed:
- min. 9,8 mm/s
- oil volume:
- 1950 l
- height over floor:
- 6,8 m
- power requirement:
- 100,0 kW
- weight:
- 62,0 t
- dimensions (WxDxH) without moving tables:
- 4,0 x 3,5 x 6,8 m
Additional information
- German Safety: permitted for manual loading
light guard
sliding table
