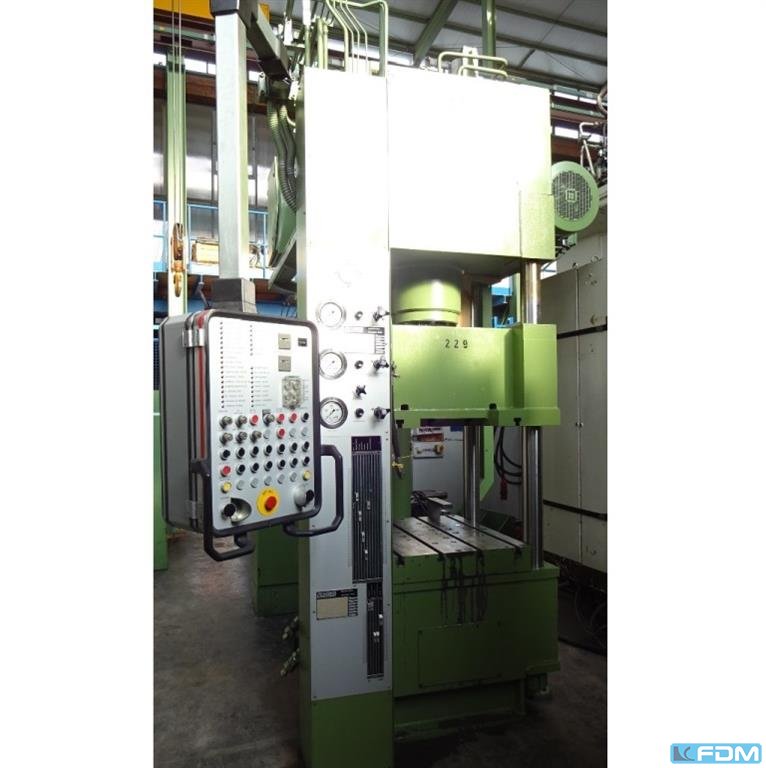

Hydraulic Double-Column (Drawing) Press
DUNKES HS 4 - 100 (UVV)
- Stock number:
- 1050-153028V
- Year / Condition:
- 1991 / used
- Control unit:

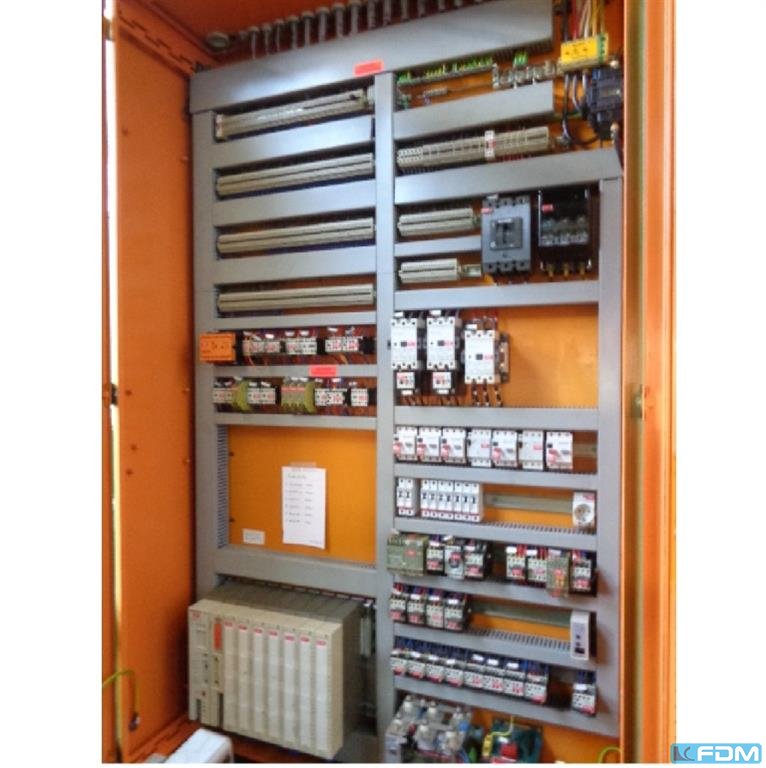

- PLC (Siemens S 5)
- Country of origin:
- Germany
- Freight basis:
- EXW, free loaded to truck
- Item location:
- warehouse Eislingen, Germany
- Delivery time:
- according agreement
Picture / documents / videos
Technical specs
Details
- pressure:
- 100 t
- distance between columns:
- 770 mm
- stroke:
- 400 mm
- distance table/ram, stroke up:
- 800 mm
- Table area:
- 770 x 900 mm
- table height above floor:
- 850 mm
- die cushion pressure in table:
- 40 t
- die cushion stroke in table:
- 200 mm
- die cushion area in table:
- 600 x 600 mm
- side window:
- 600 mm
- ram surface:
- 770 x 900 mm
- speed down:
- 62 mm/s
- speed up:
- 350 mm/s
- working speed:
- 17,5 mm/s
- oil volume:
- 700 l
- power requirement:
- 42,0 kW
- weight:
- 9,0 t
- Dimensions (WxDxH):
- 2,6x 2,0 x 3,8 m
Additional information
- German Safety: permitted for manual loading
conrollable dependant on pressure/time and way
drawing cushion in table
cutting impact cushioning
depth stop
two-hand operation
