Travelling column milling machine
SORALUCE FP 6000
- Stock number:
- 3402-260210
- Year / Condition:
- 2009
- Control unit:
- CNC (CNC Bahnsteuerung HEIDENHAIN iTNC 530)
- Country of origin:
- unknown
- Freight basis:
- Item location:
- Delivery time:
Picture / documents / videos
Technical specs
Details
- x-travel:
- 6000 mm
- y-travel:
- 2100 mm
- z-travel:
- 1500 mm
- Clamping surface (left-right):
- 7000 mm
- Clamping surface (front-back):
- 2000 mm
- spindle:
- Orthogonalkopf kW
- max. swivability:
- 360 °
- 270 °
- turning speed range:
- 20 - 4000 U/min
- spindle diameter:
- 90 mm
- tool adaptor:
- ISO SK 50
- spindle power:
- 32 kW
- Torque:
- 910 Nm
- feed range:
- 2 - 20000 mm/min
- rapid traverse:
- 35000 m/min
- capacity:
- 79 kW
- connected load frequency:
- 400 V
- mains frequency:
- 50 Hz
- Total weight, approx.:
- 55000 kg
Description
Accessories & Tools
Coolant unit
Closed cabin
Chip conveyor
Hydraulic system
Central lubrication system

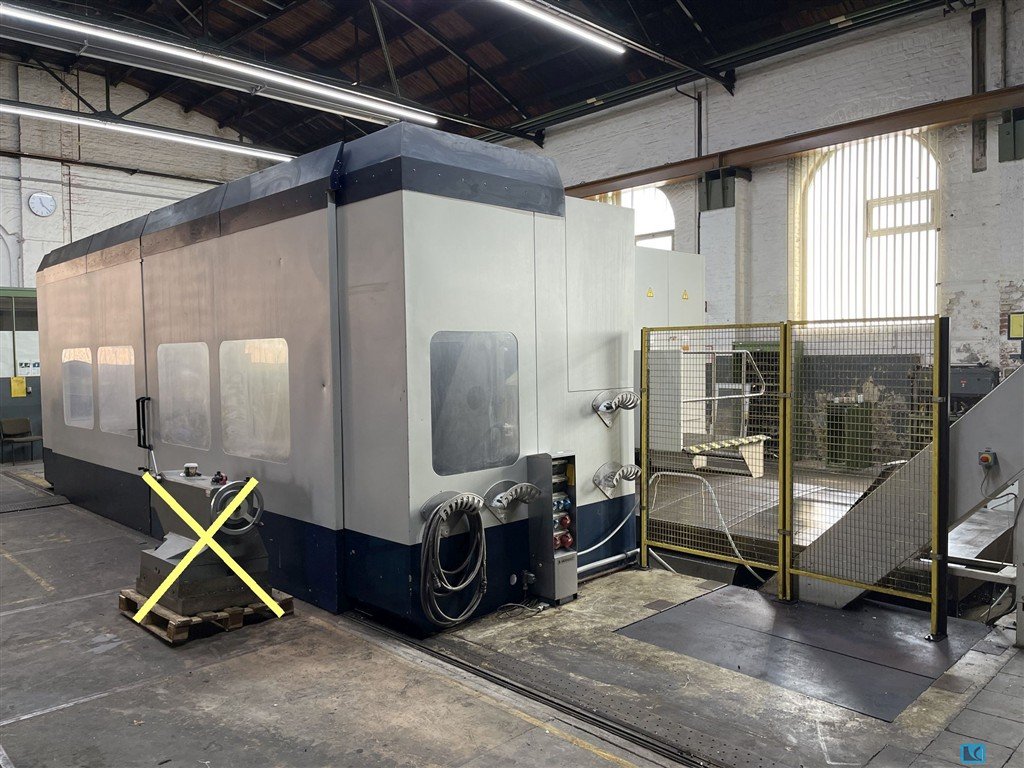

Traveling column milling machine with Heidenhain TNC530 control, coolant system, chip conveyor and
Floor plate area 7000 mm length and by 2000 mm width. -
NOTE: The clamping table, the clamping angle, are NOT included in the scope of delivery.
Those optionals can be purchased separately at following EXW ex works prices
