Center Lathe

Details

turning diameter over bed:

540 mm

turning diameter over slide rest:

280 mm

turning length:

1.500 mm

Turning diameter in the recess:

580 mm

Working travel of the lower slide max. approx. :

415 mm

adjustment of upper support, max. approx.:

140 mm

no. of turning speeds:

24

turning speed range:

0 - 1.800 1/min.

Step change:

1,25

diam. of main spindle :

135 mm

Main spindle size:

size 8 - DIN 55022

spindle bore:

68 mm

internal taper diameter:

73 mm

Lenght of cone:

83 mm

morse taper:

No. 5

lead of leadscrew:

12 mm

tailstock quill adjustment:

225 mm

tailstock quill diameter:

80 mm

bed width:

403 mm

Turning tool cross section (height x width), DIN 770:

30 x 30 mm

32 Longitudinal feeds, switchable:

0,063 - 2,24 U/mm

32 face feeds, switchable:

0,032 - 1,12 U/mm

66 metric threads gradient:

0,25 - 560 mm

81 Whitworth thread at 1'':

80 - 1/16 Gänge auf 1"

60 Module thread:

0,1 - 50 Modul

40 Diametral pitch thread:

160 - 0,5 Pitch

dimensions:

4.300 x 1.100 mm

Features

Three jawchuck FORKARDT
Digital read out 3 axis

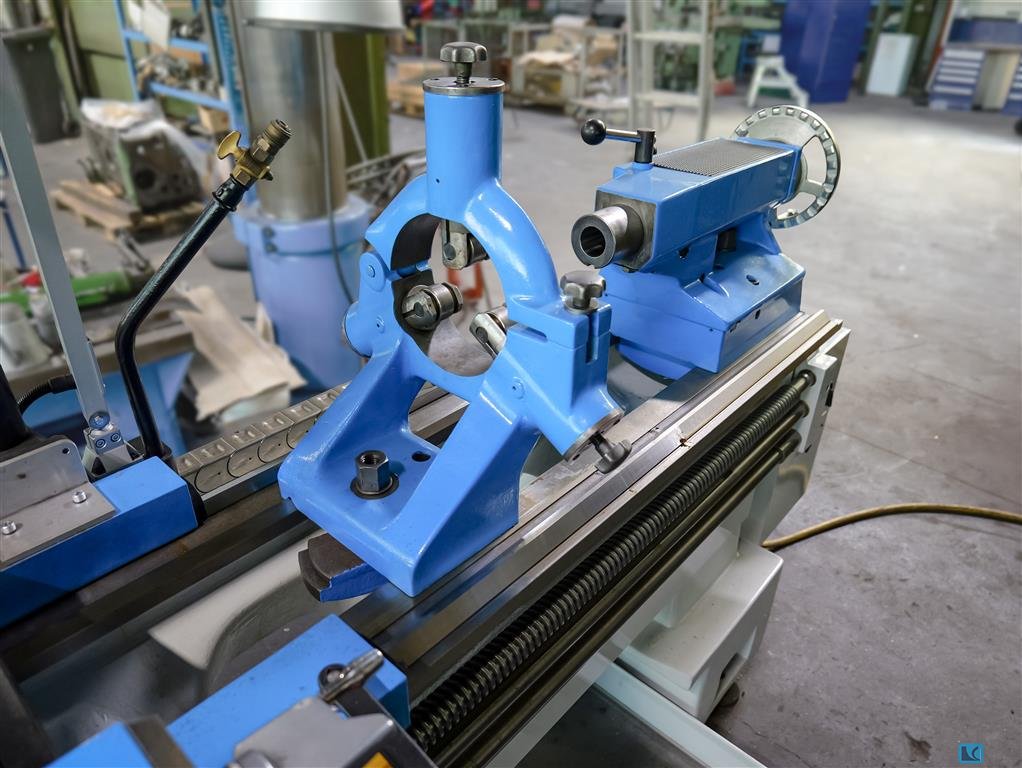

Fix steady rest
Feed safety
Chip tray
Several tool holders 6 chisel holders, 1 holder for clamping sleeve
Coolant device

Description

The machine underwent a general overhaul in 2022. A complete geometric overhaul was carried out in accordance with DIN 8606:
- Installation of a 2-axis digital bar including counter from FAGOR
- Protective cover from REAPAR2
- New bearings for main spindle
- New bearings for coupling shaft
- Electrical system upgraded to current VDE standards, including emergency stop
- Spindle and nut X-axis replaced
- Completely new paint finish
- Spindle and nut of the quill adjustment renewed
- Necessary adjustment work carried out
- Inspection and repair of the gearbox
- Machine cabling including cable drag renewed
