CNC Turning- and Milling Center

Details

turning diameter:

245 mm

turning length:

1.090  mm

Spindle distance without clamping device min./max.:

210 / 1.290 mm

Overall size ca. :

6.000 x 3.000 x 2.450 mm

Weight of the machine approx.:

14.000 kg

MAIN SPINDLE:

.

Power:

15/11 KW

bar material dia.:

51 mm

spindle nose:

A2-5

spindel revolution:

5.000 min-1

COUNTER SPINDLE:

.

Power:

11/7,5 KW

bar material dia.:

51 mm

spindle nose:

A2-5

spindel revolution:

5.000 min-1

TURNING AND MILLING SPINDLE:

.

Power:

7,5 / 3,7 KW

Turning and milling spindle speed:

12.000 min-1

Max. Rotation length turret bottom :

1.005 mm

Slide cross X1 / X2 / Z1 / Z2 / B2:

455 / 222,5 / 1.090 / 1.005 / 1.008 mm

Slide cross Y1 / Y2:

+/- 70 / +20, -50 mm

Swivel range B1 axis:

+/- 95 °

Tool magazine 40-fold:

System Capto C6

Centering diameter:

16 - 101 mm

Accerories

1 pcs. spinde oil cooler



SMW 3 Jaw chuck, diam. 165, A2-5 counter spindle



Chuck Hainbuch Toplus 65, A2-5, main spindle



Features

Linear rack magazine, 80-fold, including support robot for a total of 120 machining tools
12/24-position turret bottom (without milling drive)
Air- and coolant cleaning through main spindle
Air cleaning from outside on main- and counterspindle
CNC support stady rest
Fanuc Highspeed Skip 31 for retrofitting Renishaw measuring probe
Hinged belt conveyor, ejection right
Preparation for Oil mist extraction system, diam. 150mm

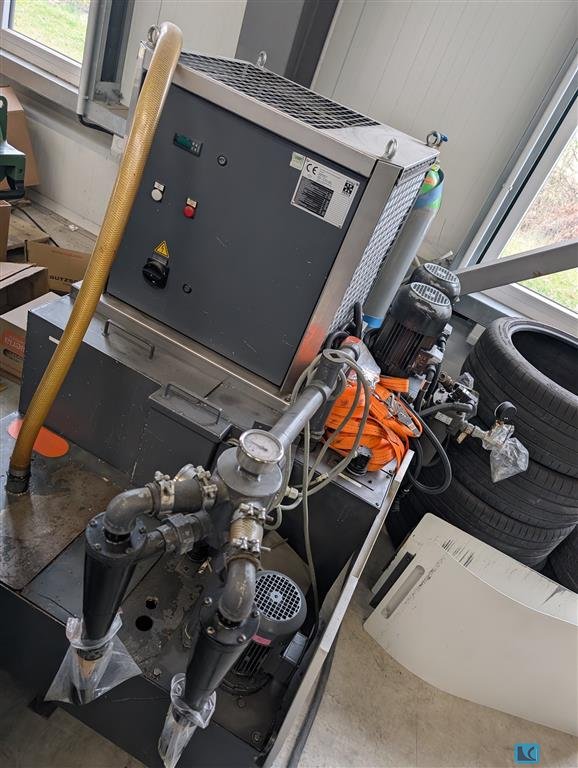

COOLANT CYCLONE FILTER SYSTEM
incl. 2 pcs. coolant-HD pumping 5/15 bar, pole reversible M-function
incl. cyclon filter unit with dirty-water pump in the standard coolant tank
incl. coolant immersion cooler for tempered medium

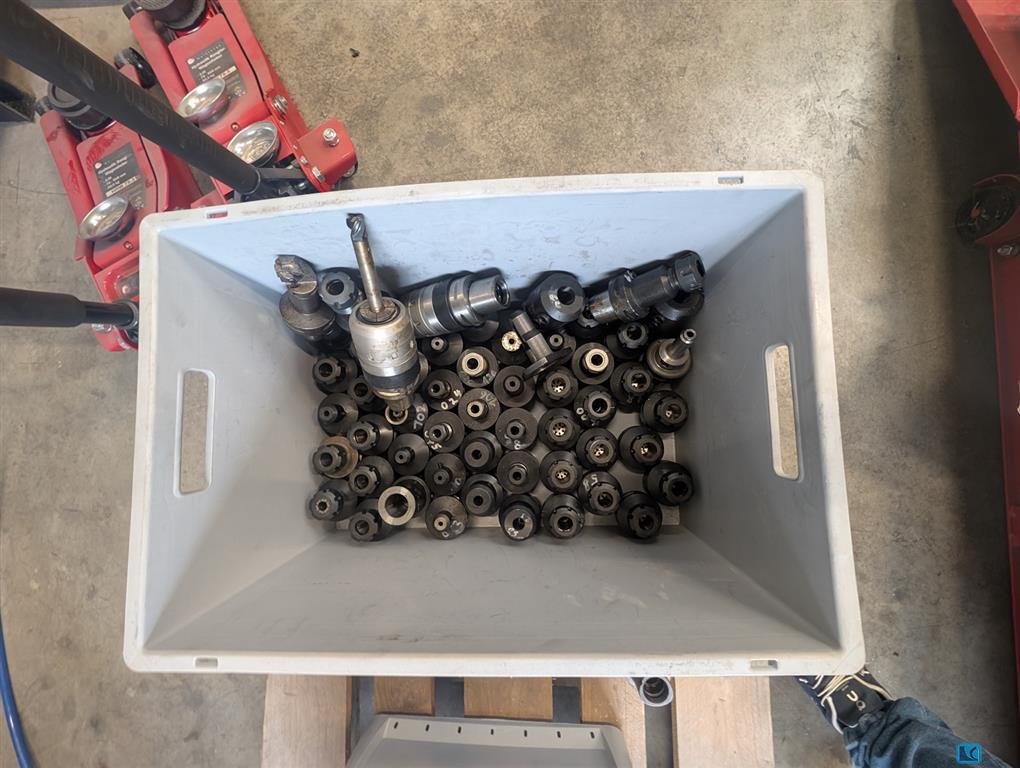

option for 120 pcs. tool holders Capto C6 for upper Turning-/ Milling spindle
1 set fixed swivel holder for lower turret

Description

Turning and milling spindle with new ceramic spindle bearing in 2021.
Tool magazine moves with Z-axis for faster chip-to-chip time. With automatic tool sorting cycle according to sequence in CNC program.
