Boring- and Thread Cutting Machine
IXION PC 1 - 8000 / BT50 RVG
- Stock number:
- 1125-5996
- Year / Condition:
- unbekannt
- Control unit:
- CNC
- Country of origin:
- Germany
- Freight basis:
- FCA - free Carrier
- Item location:
- D-49779 Niederlangen - Stock 2
- Delivery time:
- immediately, ex location
Picture / documents / videos
Technical specs
Details
- spindle diameter:
- 75 mm
- x-travel:
- - mm
- y-travel:
- ca. 500 mm
- z-travel:
- ca. 300 mm
- Column-Diameter:
- 160 mm
- Boring power:
- 50 mm
- spindle taper:
- MK4
- spindle turning speed range:
- 50 - 1500 U/min
- feeds:
- 0,12 / 0,2 / 0,32 mm/U
- drilling depth:
- 200 mm
- throat:
- 280 / 540 mm
- thread capacity:
- M 45
- total power requirement:
- 5 kW
- weight of the machine ca.:
- 2 t
- dimensions of the machine ca.:
- 2,3 x 2,4 x 2,4 m
Description

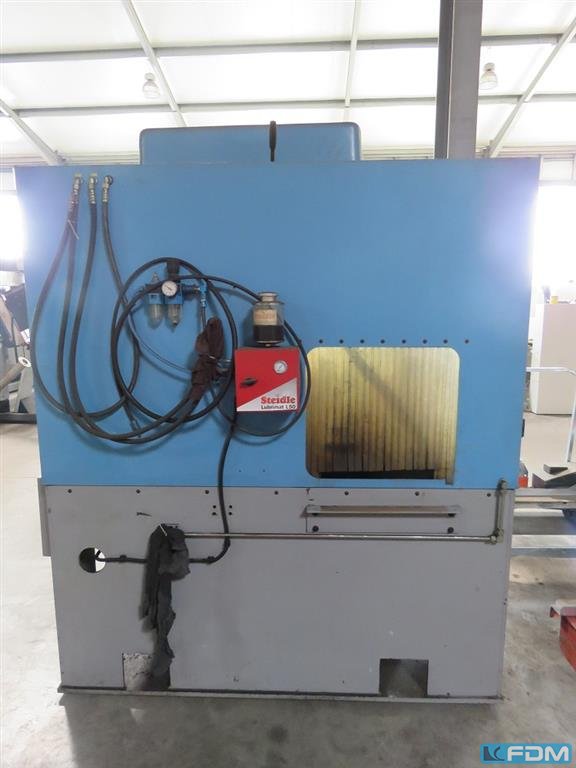

Drilling and tapping machine on base with splash guard cabin, screen control for x + y travel range, digital depth and speed display with programmable drilling depths.
Working possibilities: Drilling with automatic feed, drilling with manual feed, cutting threads, milling is not possible.
Electric 380 volt
Coolant system
hydr. jig
Zu- u. Discharge roller track 500 x 10,000 mm
