hydraulic Workshop Press

Details

pressure:

30 t

stroke:

380 mm

table surface area:

750 mm

press capacity:

294 kN

Pressure power:

221 bar

working width:

750 mm

pressing speed:

3,57 mm/sec

feed speeds:

15 mm/sec

return speed:

18,11 mm/sec

Ø 130 mm

total power requirement:

1,5 kW

weight of the machine ca.:

0,4 t

dimensions of the machine ca.:

1,3 x 0,8 x 2,1 m

Description

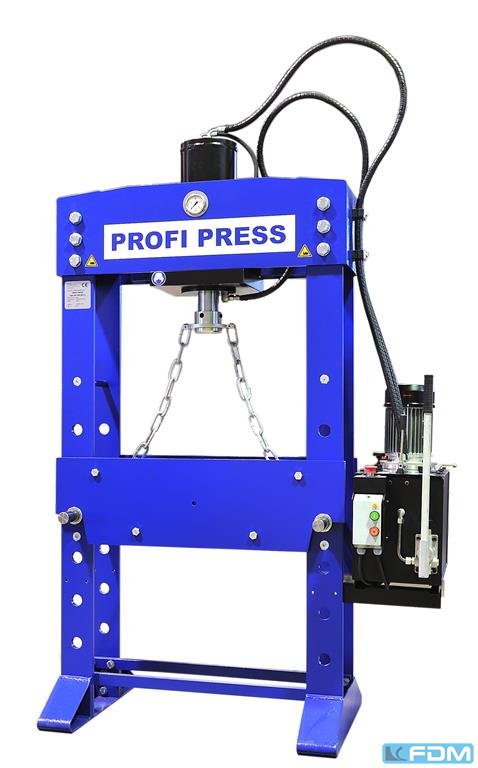

This 30 ton motorized workshop press with fixed cylinder is very robustly built and manufactured in the Netherlands. The stable frame is welded with great care from the best section steel and the hydraulics work extremely precisely in both electrical and manual operation.

Equipped with:
- Fixed cylinder
- Chrome-plated, tempered piston with screw-off bottom
- Integrated pressure gauge
- pressure control
- Two speeds
- Adjustable work table
- Joystick to operate the piston
- Hand pump with double operation for high-precision pressing work
- 220V CEE connector on the back of the hydraulic unit

The height of the heavy work table can be adjusted easily and effortlessly using the hydraulic cylinder. The piston of this press is lowered in overdrive and the press automatically switches to a slower speed when there is back pressure.
