CNC Lathe - Inclined Bed Type

Details

turning diameter:

520 mm

turning length:

500 mm

control:

Fanuc Oi-TF

max. swing diameter:

520 mm

spindle speeds:

4500 1/min.

spindle drive:

11 / 15 kW

Description

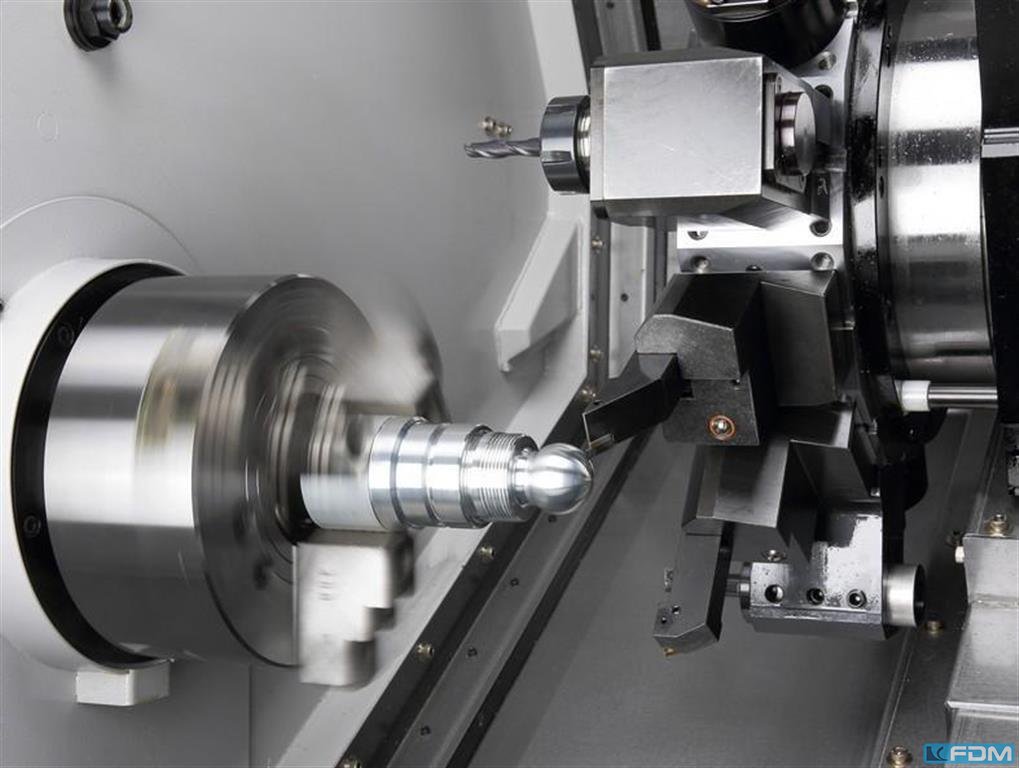

brand new CNC slant bed lathe with


Contains:
1. Control system Fanuc Oi-TF (8,4" LCD monitor)
2. X/Z-axis stroke 170/400 mm
3. X/Z-axis rapid traverse 30/30 M/MIN
4. Spindle motor 11 / 15 KW
5. Spindle speed 4500 rpm (Belt driven type)
6. Spindle bearing dia. 100 mm
7. Bar capacity dia 51 mm)
8. Hydraulic Hollow chuck 8" x 3 jaws
9. Hyd. unit for chuck with air cooler
10. Servo driven turret system 12 stations
11. Manual tailstock stroke 275 mm + quill stroke 100 mm
12. Electrical cabinet with heat exchanger
13. Standard splash guard
14. Coolant unit
15. Transformer (power source 380V)
16. Chip conveyor H=1100 MM with trolley (chain type)
17. Machine color Tongtai white/Dark grey
18. Safety foot switch
19. Tricolor lamp
20. Fanuc warranty (western Europe)

Standard accessories
1. Facing tool holders x 2 pcs
2. O.D. tool gasket x 8 pcs
3. I.D. tool holder (dia 32 mm) x 4 pcs
4. Boring sleeve x 6 pcs (dia 8, 10, 12, 16, 20, 25 mm)
5. Drilling sleeve x 3 pcs (mt#1, 2, 3)
6. Soft jaws x 1 set
7. Rotating center x 1 pc (MT#4)

Options:
1. CE mark
2. Tool presetter (manual)
3. Hard jaws x 1 set
4. Manual guide I function + 10.4" screen

warranty: 12 months

Machine is made by the biggest maker of machine tools in Taiwan, also builiding for wellknown japanese makers.
