Boring mills / Machining Centers / Drilling machines - Machining Center - Horizontal - KRAFT (Tongtai) SH-5000P

Machining Center - Horizontal

KRAFT (Tongtai) SH-5000P

Stock number:
Year / Condition:
Control unit:
Country of origin:
Freight basis:
ex stock, loaded free on truck
Item location:
Delivery time:
ex stock

Picture / documents / videos

Technical specs


730 mm
730 mm
830 mm
max. workpiece height:
Ø800 X H 1000  mm
distance spindle nose and table:
80 ~ 810 mm
pallet table size:
500x500 mm
max. workpiece weight:
500kg x 2  Stk.
table - indexing:
0.001 °
spindle speeds:
18.000 1/min
spindle drive:
26 kW
spindle speed steps:
2 (autom. schaltend)
spindle nose:
63 HSK
spindle bearing diameter:
75 mm
rapid speed:
60 m/min
1-20000 mm/U
tool taper:
63 HSK
Tool changer:
60 fach
tool diameter:
75 (angrenzend leer: 170) mm
weight of tools max.:
8 kg
workpiece length:
550 mm
number of pallets:
total power requirement:
45 kva
weight of the machine ca.:
9,5 t
Machine size (LxWxH):
4885x2290x2985 mm


automatic tool changer:
60 fach
cnc rotary table:
0.001 °
CNC controller:
inner coolant:
70 bar
chip conveyor - auger:
im Maschinenbett
chip conveyor with chip bucket
Servo motors:
vom Steuerungshersteller
water gun
Oil-coolant separator
MPG hand wheel
fully enclosed
autom. pallet changer with 2 pallets, size
air conditioner for cabinet
signal lamp
coolant system

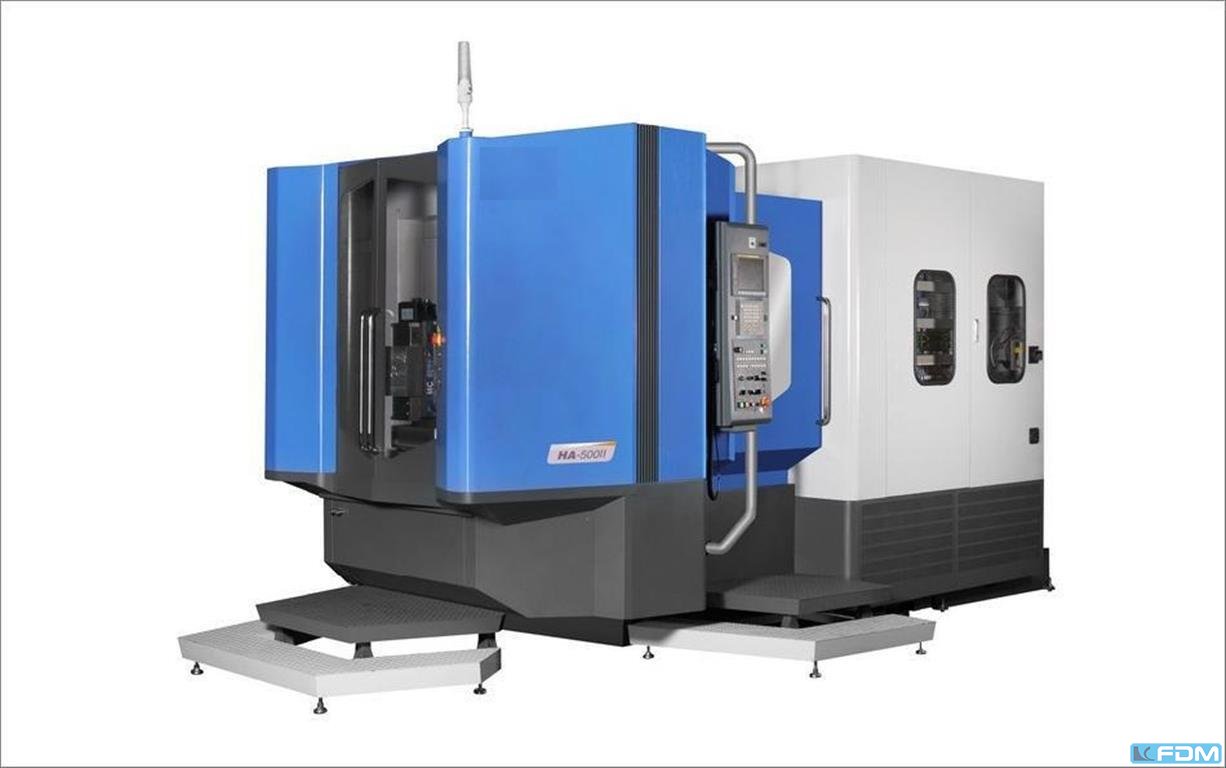

Brand new horizontal machining center with:
High efficiency machining
The new HA series has a redesigned casting structure. Furthermore it adopts improvements on the structure rigidity, including triple point support of the machine bed, double wall structure design in the column and high rigidity linear guide ways in three axis. Moreover, for machining efficiency, new HA series saves 10 to 30% non cutting time in three axis rapid traverse, pallet/tool changing and B-axis positioning.

Minimal floor space requirement
HA-400II/500II adopts a new splash guard design. Compared with the last generation it saves 15% of floor space and allows the clients to have more space available.

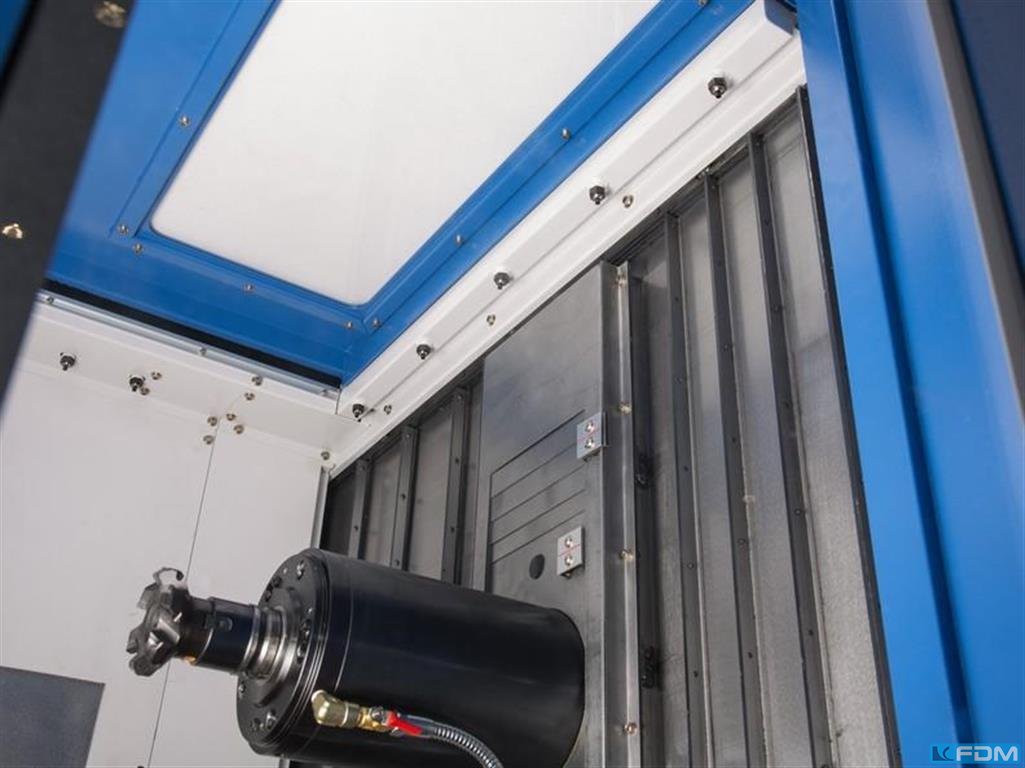

High Torque & power spindle
HA-400II/500II adopts a 12.000 rpm spindle with a motor output of 25/22 kW and maximum torque of 233 Nm. This spindle is suitable for machining materials of aluminum alloy and steel, widely applied in the industries of automobile, hydraulic/pneumatic parts.

Machine Characteristics
Through the finite element analysis structure has a high rigidity and stability in high speed motion. The optimized rib distribution of robust T-shaped bed and column transfer and absorb vibrations during machining to get an excellent machining surface.
B-axis rotary table uses High precision positioning cones and a hydraulic locking device. Clamping force 17 tons.
Pallet size 500 x 500 mm
Improved APC system, pallet change in 10 sec
Japanese made cam type ATC with standard 60 tools (90/120 pc optional)
Roof type flushing system helps metal chips to be flushed into chip auger.
The machine is equipped with an malfunction and maintenance system

For technical details please download the PDF flyer

tool measuring system
workpiece measurement system
