Cylindrical Grinding Machine

Details

grinding diameter:

630 mm

grinding length:

2000 oder 3000  mm

centre height:

320 mm

table speed -stepless-:

0,005-5 m/min

min/max. table longitudinal travel:

5/ 3350 mm

table speeds:

8 m/min

grinding spindle- cross travel:

420 mm

workpiece-spindlehead motor:

3,0 kW

output of wheelhead motor:

22 kW

motor internal grinding:

3 kW

lubrication pump motor:

0,11 kW

weight of the machine ca.:

15700 kg

dimensions of the machine ca.:

H1970/B3100/L12650 mm

Accerories

technical documentation



wheel flange suspension



luminating devices



work piece drivers



work piece driver 110 - 160 mm



wheel dresser fitted on the tale stock



splash gurads



complete sedimentation cooling equipment



open tailstocks dia 250 mm



centers morse 6



changing belt for used grinding wheel



balancing mandrel



extractor for grinding wheel flange



grinding wheel cover dia. 800 mm



grinding wheel flange for wheel width 63 - 100 mm



grinding wheel 750 x 100 x 305 mm



Description

40 % advance payment, by order confirmation
60 % before loading the machine

warranty:
12 month

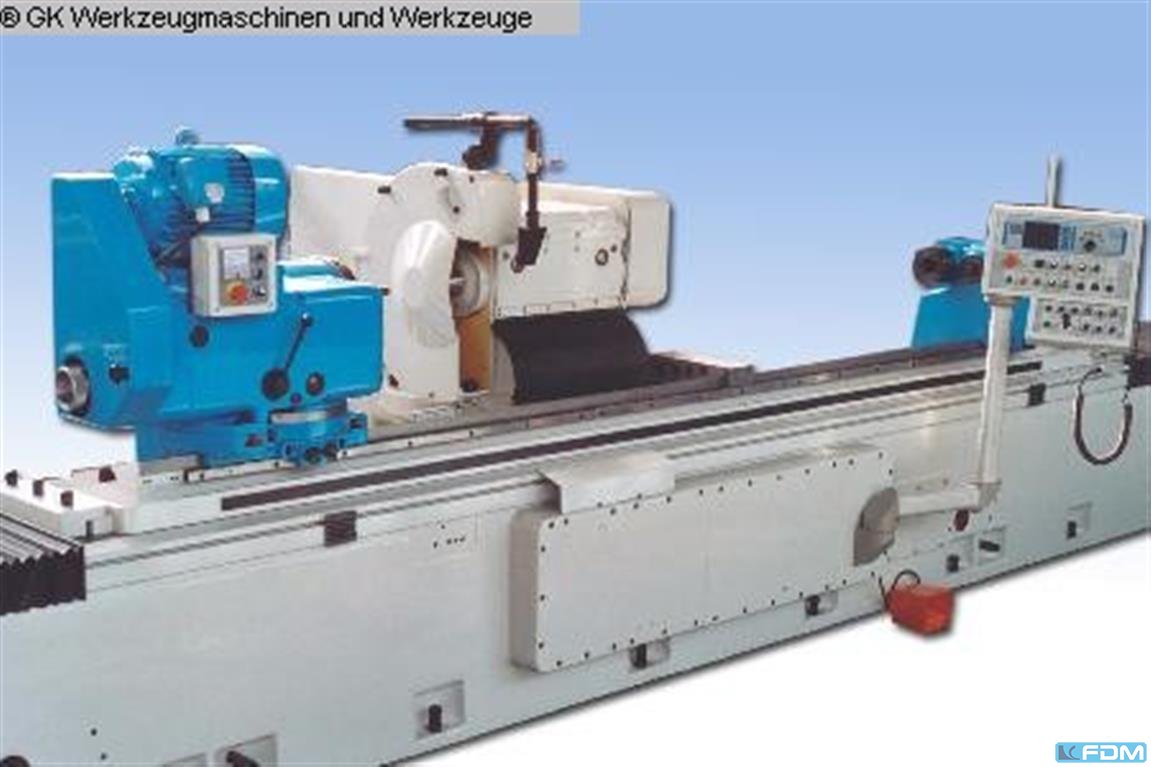

one general overhauled cylindrical grinding machine, make TOS,
type BUT/BUC 63 x 3000 with new 2-axis CNC Teach In control K 51/2 or alternatively Siemens Sinumerik 840 D.

Our general overhauling includes:
regrinding and scraping of all guide ways including lower and upper side of the table. Replacement of all main components. Complete new electric including cabinet according to "CE". Complete new paint (2 colors), 48 hours test run. We guarantee new machine accuracy, technical and optical execution like new with 12 months full warranty.
