Press Line

Details

Total force (nominal):

1000 to

Clamping surface (left-right):

x mm

Clamping surface (front-back):

x mm

table surface area:

4500 X 2400 mm

Total force (nominal):

2-3-4-5- Presse - 1000 to. to

table surface area:

2-3-4-5- Presse 4500 X 2200 mm

Description

Last overhaul 2010/2020, consisting of:

Circuit board washing system, manufacturer Neuhäuser, with 6 cleaning rollers, system no. 0905200, control unit by Siemens

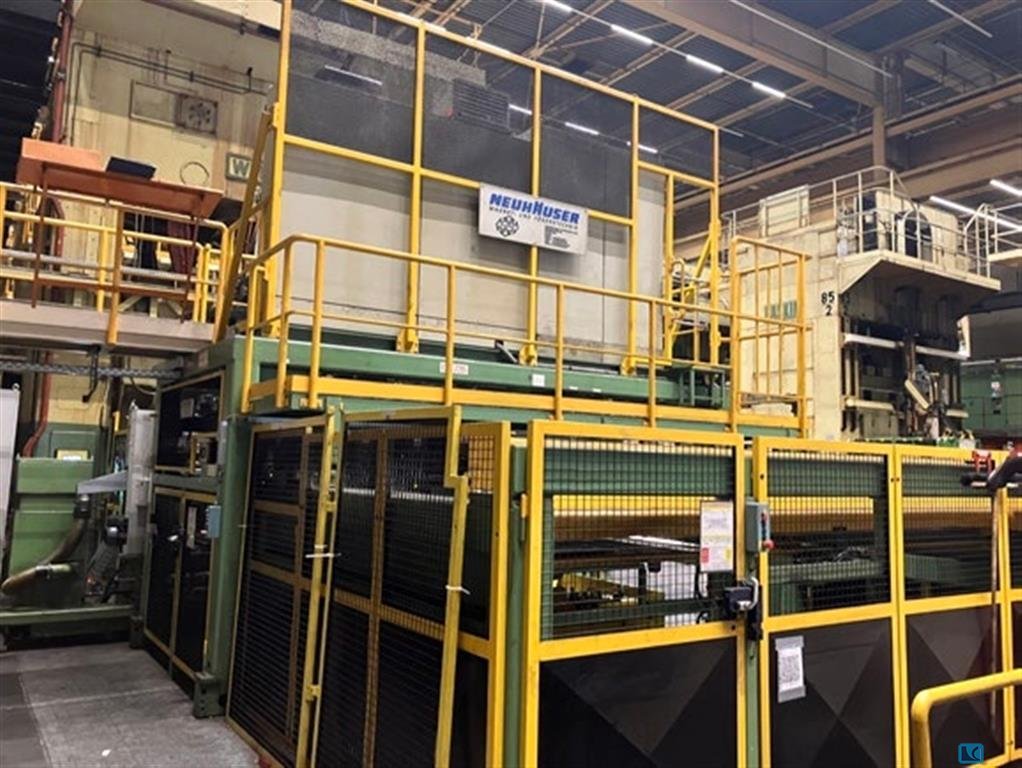

Blank automation, manufacturer Neuhäuser, type 19711594-00-0, year 2002, SN 369507/002, system no. FK42282, consisting of: destacking device, oiler, pallet changer, empty pallet discharge
Gripper automation, manufacturer Olofström, type Doppin Loader 2000, SN 37719974886, system no. 0602300

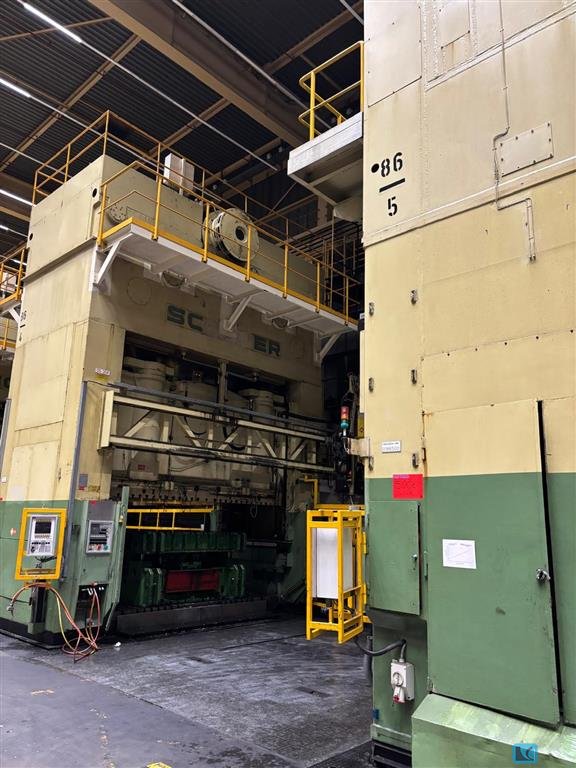

Double-column press, manufacturer Weingarten, type ZS 1200.34
Year 1972, order no. 113 021, pressing force approx. 800 t, double action, stroke 850 mm, stroke adjustment 350 mm, height between table surface and drawing slide 2,150 mm, blank holder force 400 t, stroke 600 mm, adjustment 350 mm, clear height between table surface and blank holder 1,950 mm, max. drawing depth 300 mm, 14 strokes/min, Siemens control unit, operating panel by Baluff, table size 3,200 × 2,200 mm, system no. 0185100
Gripper automation, consisting of: 2 press-mounted blank grippers, system no. 0602400, 0602500, with turning table and turning device

Double-column press, manufacturer Raskin, type 6031AE4
Year 1979, SN 6031AE4.084, order no. 7810011, single action, pressing force approx. 600 t, 18 strokes/min, slide stroke 700 mm, distance between clamping plate and slide 1,200 mm, slide adjustment 400 mm, clear opening between columns 3,220 mm, slide surface 3,100 × 1,900 mm, tool clamping surface 3,260 × 1,900 mm, drawing cushion with 125 t force, stroke 0–200 mm, control by Siemens
Press automation, consisting of: 2 press-mounted blank grippers, turning and rotary table, system no. 0602600, 0602700

Double-column press, manufacturer Raskin, type 0631AE4
Year 1979, SN 0631AE4085, order no. 7810012, single action, pressing force approx. 600 t, 18 strokes/min, slide stroke 700 mm, distance between clamping plate and slide 1,200 mm, slide adjustment 400 mm, clear opening between columns 3,220 mm, slide surface 3,100 × 1,900 mm, tool clamping surface 3,260 × 1,900 mm, drawing cushion with 125 t force, stroke 0–200 mm, Siemens control, system no. 0185300
Blank automation, consisting of: 2 grippers, system no. 0602800, 0602900, with tilting and turning table

Double-column press, manufacturer Raskin, type 6031AE4
Year 1979, SN 06031AE4.086, order no. 7810013, single action, pressing force approx. 600 t, 18 strokes/min, slide stroke 700 mm, distance between clamping plate and slide 1,200 mm, slide adjustment 400 mm, clear opening between columns 3,220 mm, slide surface 3,100 × 1,900 mm, tool clamping surface 3,260 × 1,900 mm, drawing cushion with 125 t force, stroke 0–200 mm, Siemens control
Blank automation, consisting of: 2 press-mounted blank grippers, turning and rotary table, system no. 0603000, 0603100

Double-column press, manufacturer Raskin, type 06031AE4
Year 1979, SN 6031AE4.087, order no. 7810014, pressing force approx. 600 t, 18 strokes/min, slide stroke 700 mm, distance between clamping plate and slide 1,200 mm, slide adjustment 400 mm, clear opening between columns 3,220 mm, slide surface 3,100 × 1,900 mm, tool clamping surface 3,260 × 1,900 mm, drawing cushion with 125 t force, stroke 0–200 mm, Siemens control

6-axis robot, manufacturer Kuka, type KR 100 R3500 Press
Year 2014, SN 674326, weight 1,240 kg, load capacity 100 kg, reach 3,500 mm, control unit type KPC4, SN 604486, year 2020, with control cabinet and hand-held operating device
