Other accessories for machine tools - Rotary Table - Boring - INFRATIREA MRD 1700x2000/3000

Rotary Table - Boring

INFRATIREA MRD 1700x2000/3000

Stock number:
1087-1104003
Year / Condition:
1985 / 2023 / Retrofit
Control unit:
conventional
Country of origin:
Romania
Freight basis:
EXW, free on truck unpacked
Item location:
Leipzig 5
Delivery time:
immediately

Picture / documents / videos

Technical specs

Details

table length:
2000 mm
table width:
1700 mm
table load:
15 t
x-travel:
längs=3000 mm
table rotating:
360 motorisch °
height over floor:
1020 mm
total power requirement:
ca. 1,0 kw
weight of the machine ca.:
14,2 t
dimensions:
5,7x2,1x1,0 m

Description

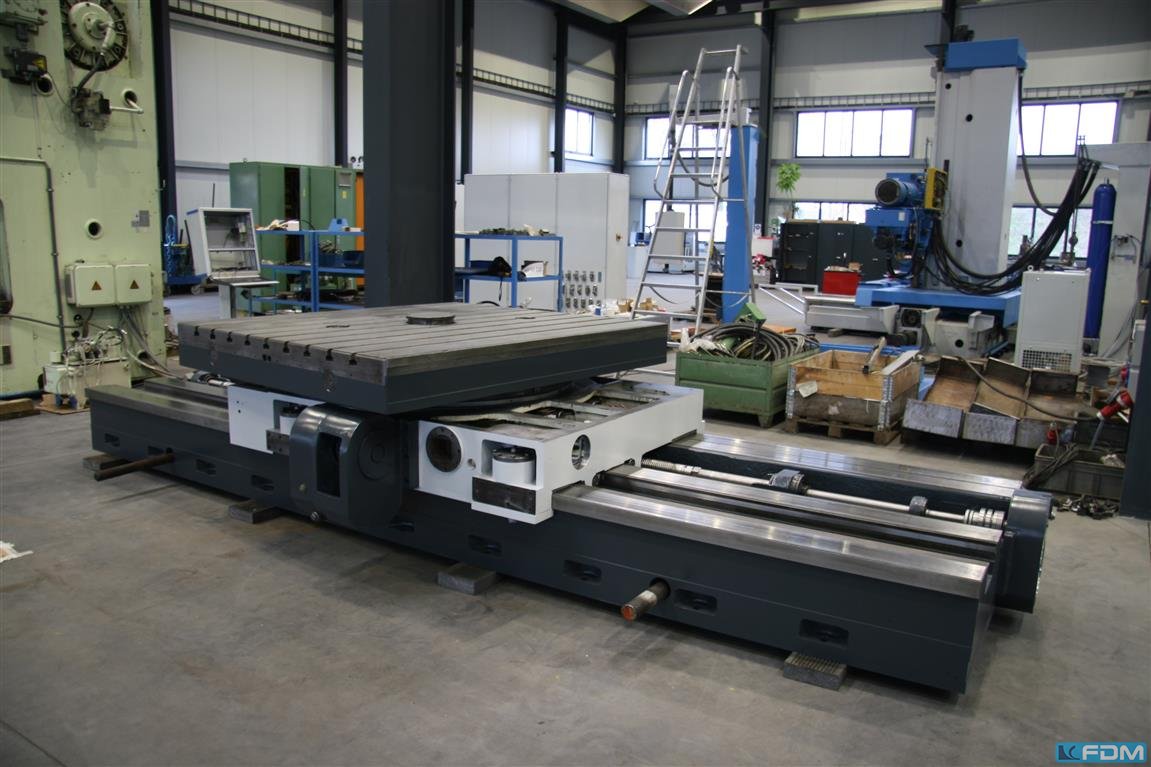

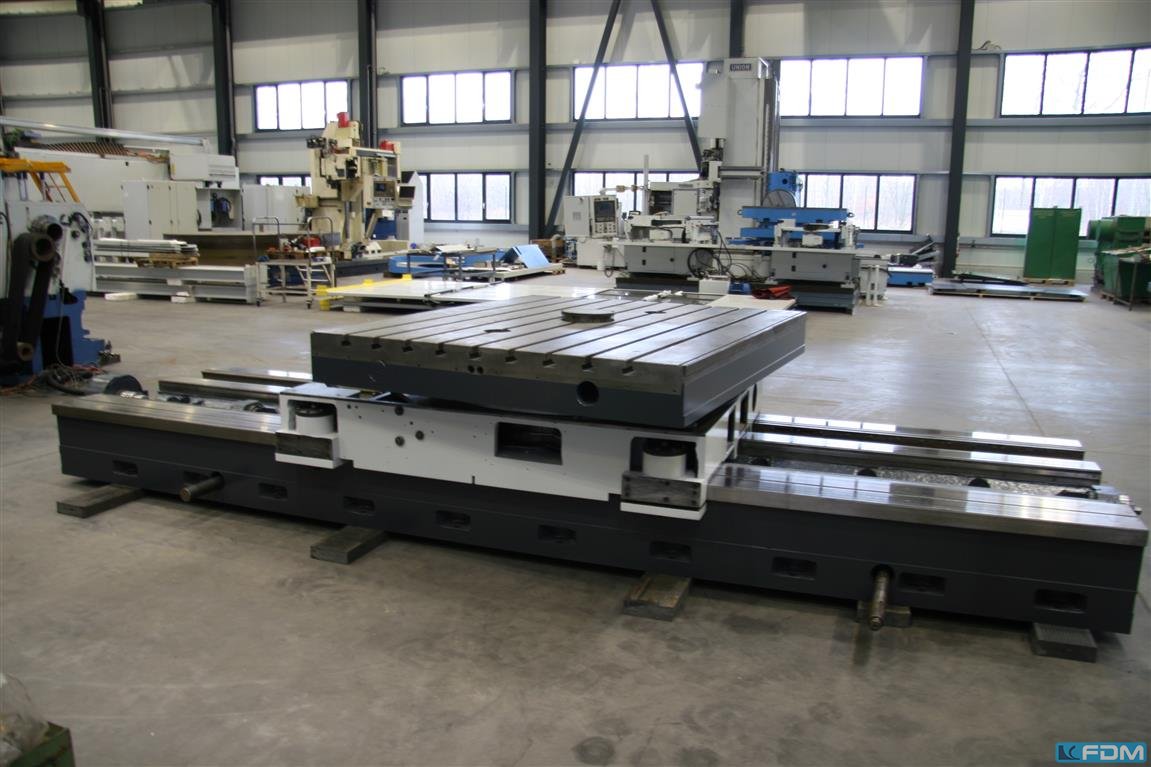

The boring mill table was built in 1985 and overhauled in 2023 (retrofit)

The table is mounted on a flat bed guide (5000x1380mm).

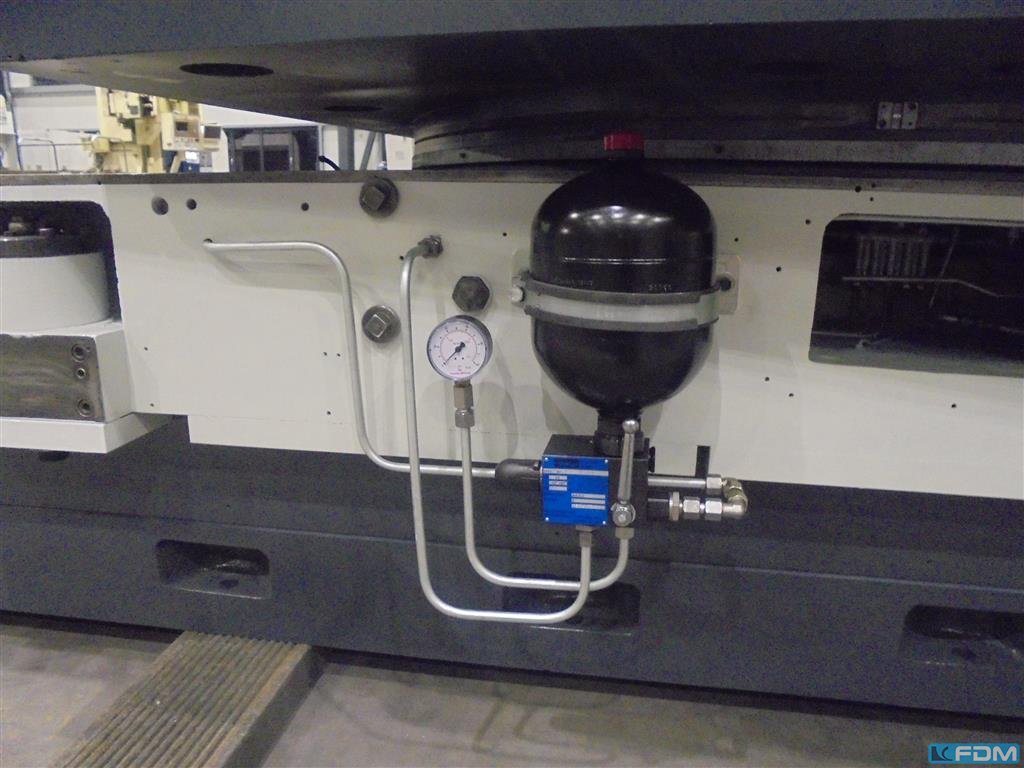

The axis of rotation (B) is mounted hydrostatically,
9x T-slots according to DIN 650 and 508: a=28mm; h=54mm; b=51mm; c=21mm whose center distance = 160mm
B-axis as positioning axis, which is clamped.
