Spare Parts
Emag VCL 630/800
- Stock number:
- 1087-1100673
- Year / Condition:
- neuwertig / New
- Control unit:
- other
- Country of origin:
- Germany
- Freight basis:
- EXW, free on truck unpacked
- Item location:
- Leipzig 5
- Delivery time:
- immediately
Picture / documents / videos
Technical specs
Details
- weight of the machine approx.:
- 5000 kg
- transport dimensions LxWxH:
- 1,4 x 1,8 x 2,2 m
Description

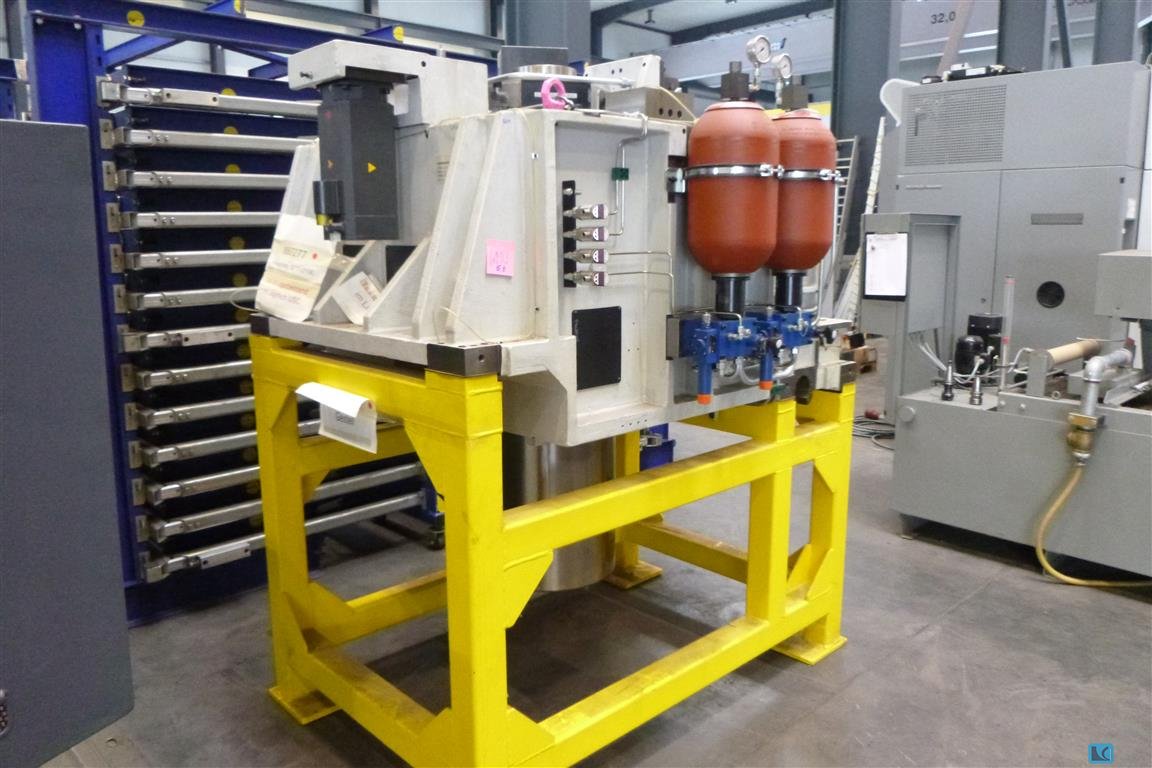

VERTICAL MULTIFUNCTIONAL HEADSTOCK UNIT FOR VLC 800 MT TURNING MILLING (see last photo for comparison)
The headstock unit of the EMAG machines of the VLC series is characterised by short strokes, high rapid traverse rates, extreme rigidity and an integrated cooling system.
Maintenance-free, frequency-controlled three-phase motors serve as feed drives for the X and Z axes.
Max. chuck speed = 800 rpm.
Motor: MBS382F
Feed drive: 500 stroke (Z-axis)
Stroke limitation 500mm
Hydraulic cylinder Weight compensation
Spindle flange according to DIN 55 026 size Z 380
