Slip Grinding Machine
WALTHER-TROWAL CB 600
- Stock number:
- 1087-0800051
- Year / Condition:
- 2008
- Control unit:
- conventional
- Country of origin:
- Germany
- Freight basis:
- EXW, free on truck unpacked
- Item location:
- Leipzig 1
- Delivery time:
- by arrangement
Picture / documents / videos
Technical specs
Details
- batch weight:
- -
- total volume:
- 600 l
- external diameter:
- 1716 mm
- Effective volume:
- 345 l
- Work tank width:
- 1616 mm
- max. workpiece size:
- 270 mm
- revolution per minute:
- 980 - 1460 U/min
- total power requirement:
- 6 kW
- weight of the machine ca.:
- 1600 kg
- dimension machine approx.LxWxH:
- 2,4 x 1,7 x 1,44 m
- height:
- 3,42 m
Description
This machine was never operated with abrasive grinding media and therefore shows very little wear. The polyurethane lining is in excellent condition.
The Walther Trowal CB 600 offered for sale was used exclusively for the treatment of stamped metal parts.

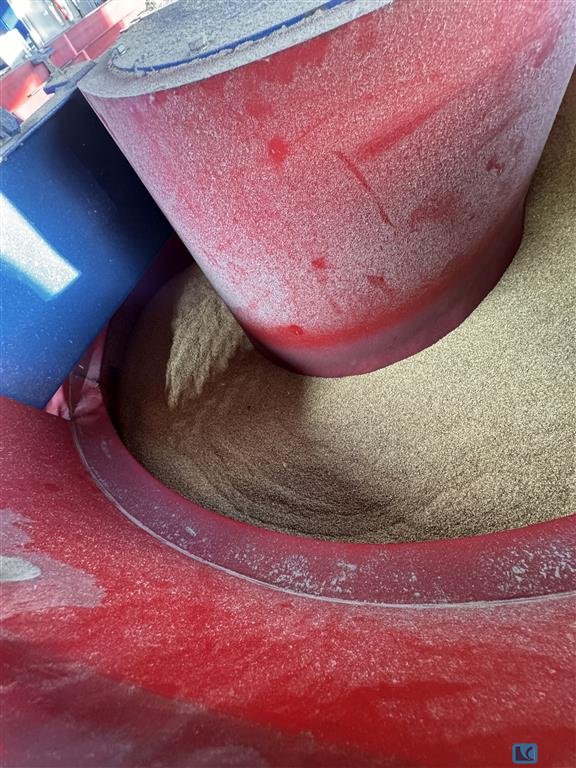

The parts were processed in a dry finishing process using corn cob granulate, whereby they were conveyed through the media. The purpose of this process was to condition the surface of the stamped parts in such a way that sticking together during subsequent stacking was reliably prevented.
The machine was used exclusively for this application and operated only in dry mode with corn cob media.
Walther Trowal CB 600
The Walther Trowal CB 600 is an industrial circular vibratory finishing machine with a gross capacity of 600 liters.
Suitable for:
·Deburring
·Edge radiusing
·Grinding
·Surface smoothing
·Polishing
·Descaling
·Cleaning metal parts
Typical workpieces:
·Turned parts
·Milled parts
·Stamped parts
·Cast parts
·Forged parts
·Gears
Machine can be demonstrated under power.
