Single Column Press - Hydraulic
WMW Zeulenroda PYTE 2.5x150
- Stock number:
- 1087-0703057
- Year / Condition:
- nicht bekannt
- Control unit:
- conventional
- Country of origin:
- Germany
- Freight basis:
- EXW, free on truck unpacked
- Item location:
- Leipzig 1
- Delivery time:
- immediately
Picture / documents / videos
Technical specs
Details
- Pressure:
- 2,3 t
- stroke:
- 280 mm
- throat:
- 155 mm
- max. ram stroke:
- Vorlauf: 0,08 m/sec
- daylight dimension with clamping plate Slide/ up:
- 355 mm
- distance table/ram:
- max. 355 mm

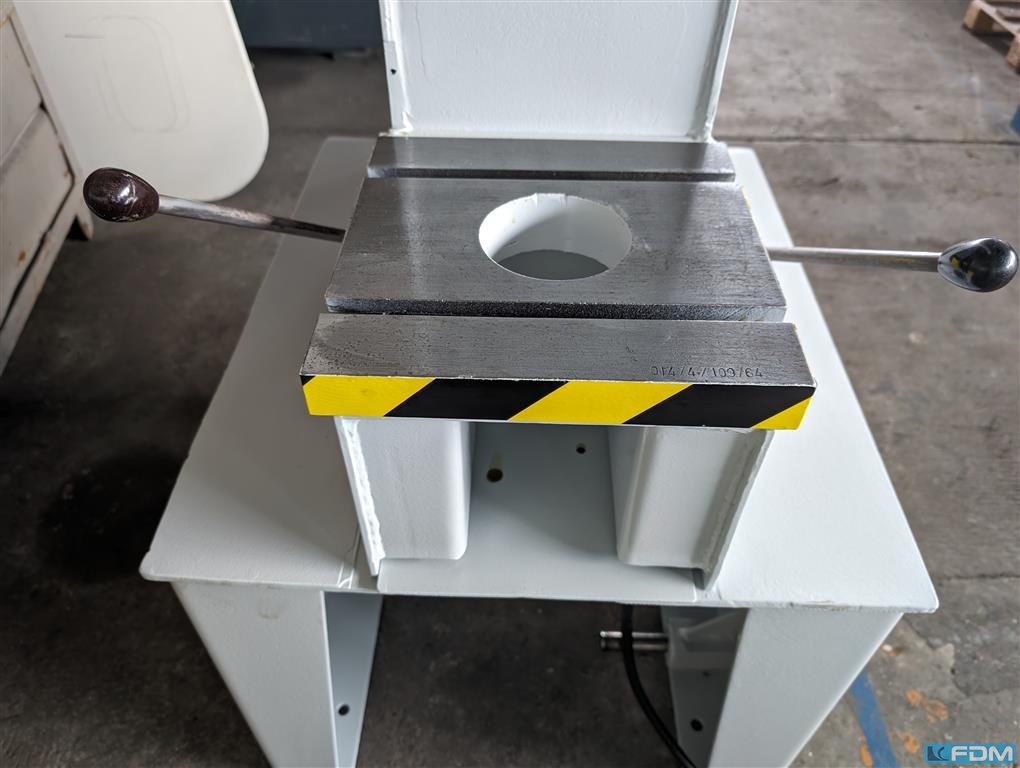

- clamping plate on table:
- 280 x 280 mm
- passage opening in table:
- Ø 100 mm
- ram speed - forward:
- 0,08 m/s
- ram speed - reverse:
- 0,32 m/s
- mortise hole in ram:
- Ø 20 x 45 mm
- height over floor:
- 725 mm
- total power requirement:
- 1,1 kW
- weight of the machine ca.:
- 0,5 kg
- dimension machine approx.LxWxH:
- 0,6 x 0,7 x 1,6 m
Description
Press with mechanical 2-hand operation.
Pressure test up to 2,3to performed.
Good condition.
