hydraulic Workshop Press

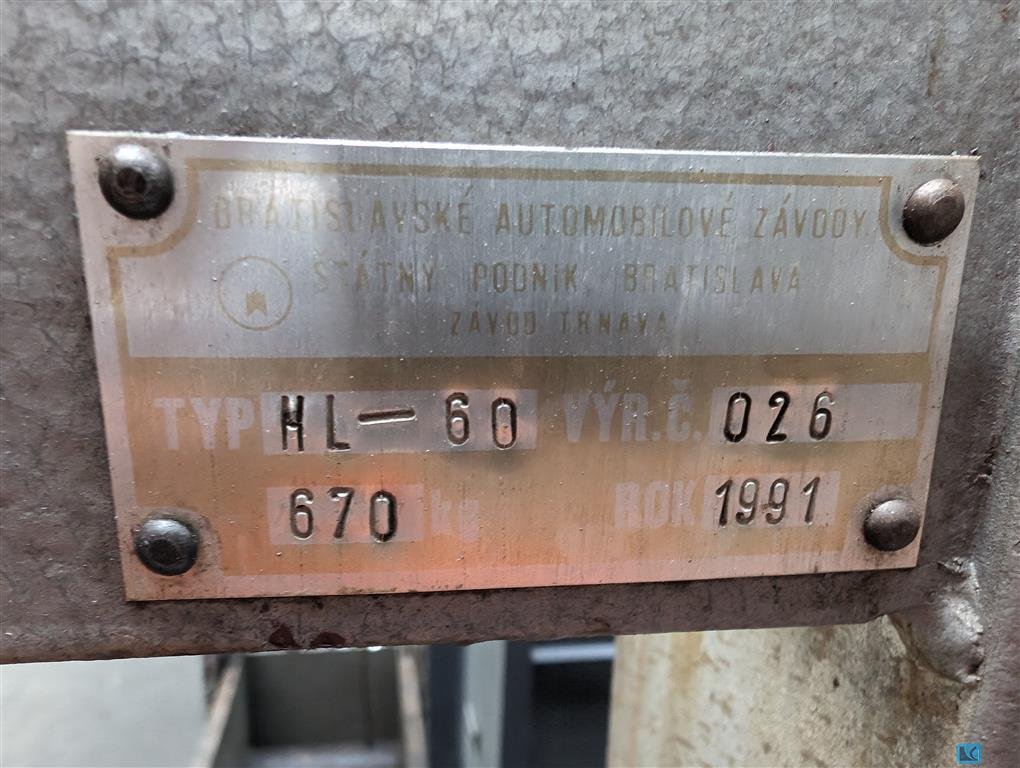

Bratislavské automobilové závody HL-60
- Stock number:
- 1087-0700035
- Year / Condition:
- 1991 / Used
- Control unit:
- conventional
- Country of origin:
- Czech Republic
- Freight basis:
- EXW, free on truck
- Item location:
- Leipzig 5
- Delivery time:
- immediately
Picture / documents / videos
Technical specs
Details
- Pressure:
- 20 t
- stroke:
- 500 mm
- table surface area:
- 600 mm
- distance between columns:
- 1000 mm
- daylight dimension : table/slide up:
- 7 Stufen (verstellbar 100mm step) mm
- weight of the machine ca.:
- 0,87 t
- dimension machine approx.LxWxH:
- 0,78 x 1,4 x 3,3 m
- dimensions of hydaulic:
- 1100 x 500 x 1050 mm
Description
Manufacturer: Volkswagenwerk Bratislava

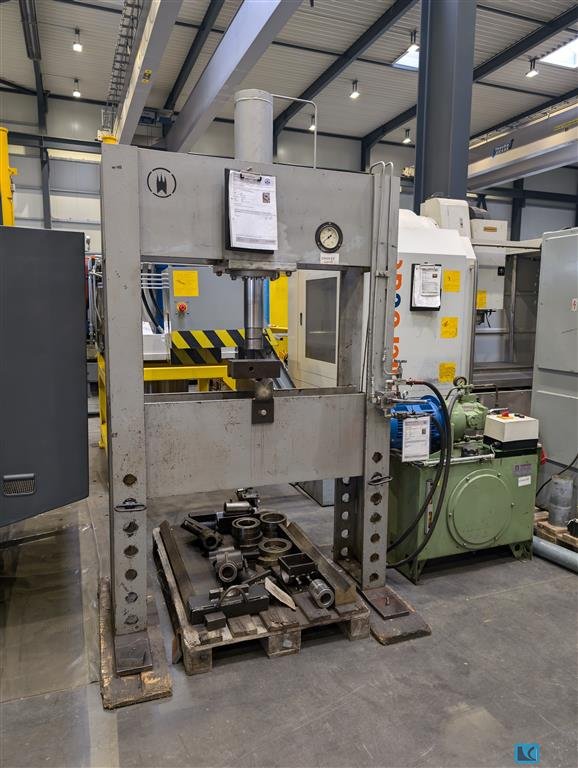

hydr. double column press / special construction

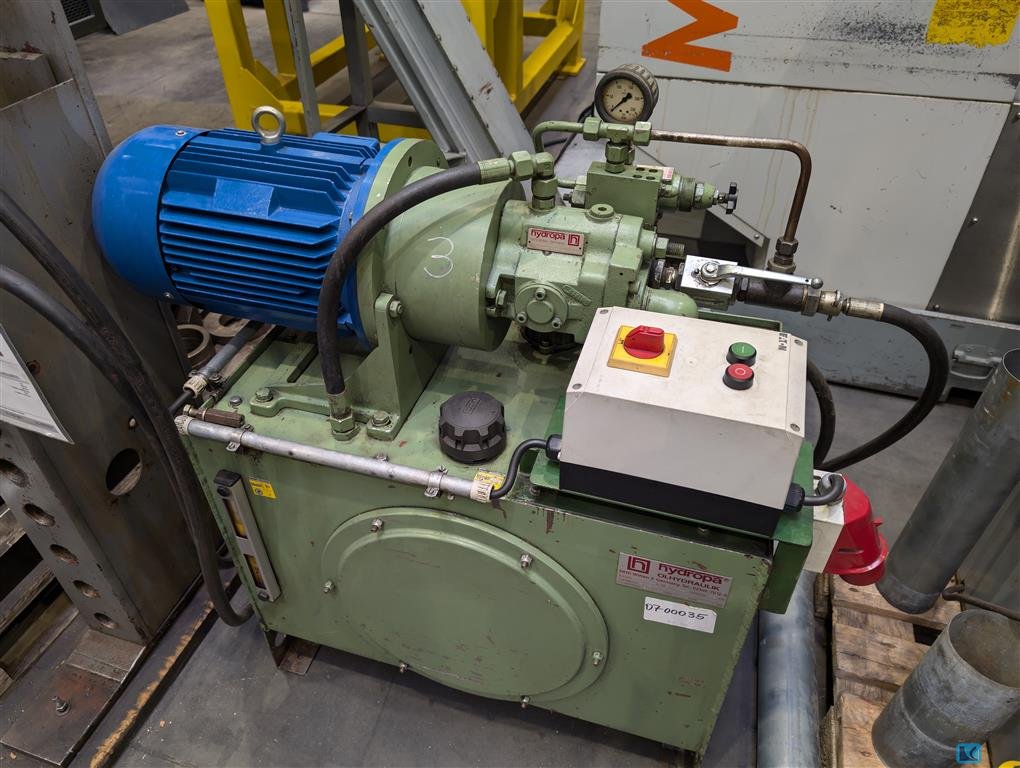

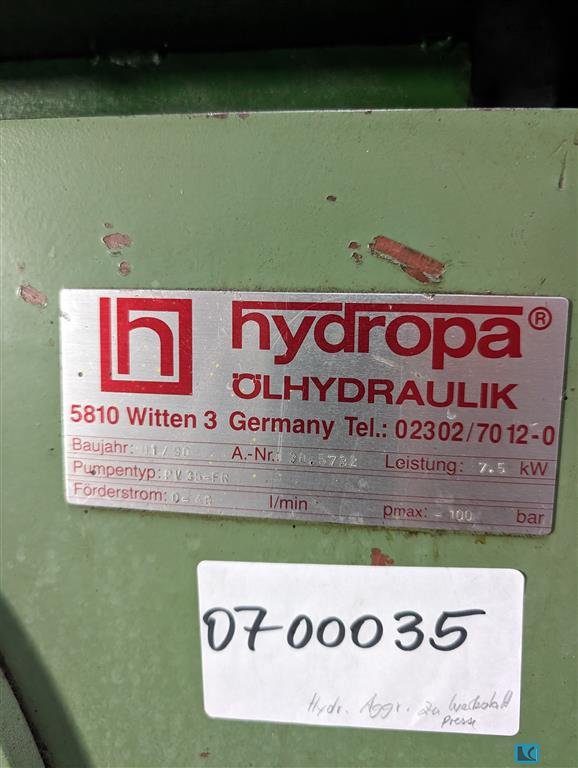

with hydraulic unit Hydropa
lower beam:
- equipped with prism die 36 x 330mm
-opening in the table 1.000 x 420mm
-Clamping surface LxW: 1,000 x 280mm
Plunger beam:
-daylight max. 800mm
-stroke cylinder Ø 90mm
-Distance table ram 200 - 800mm
-Punch holder intake Ø 83 x 98mm

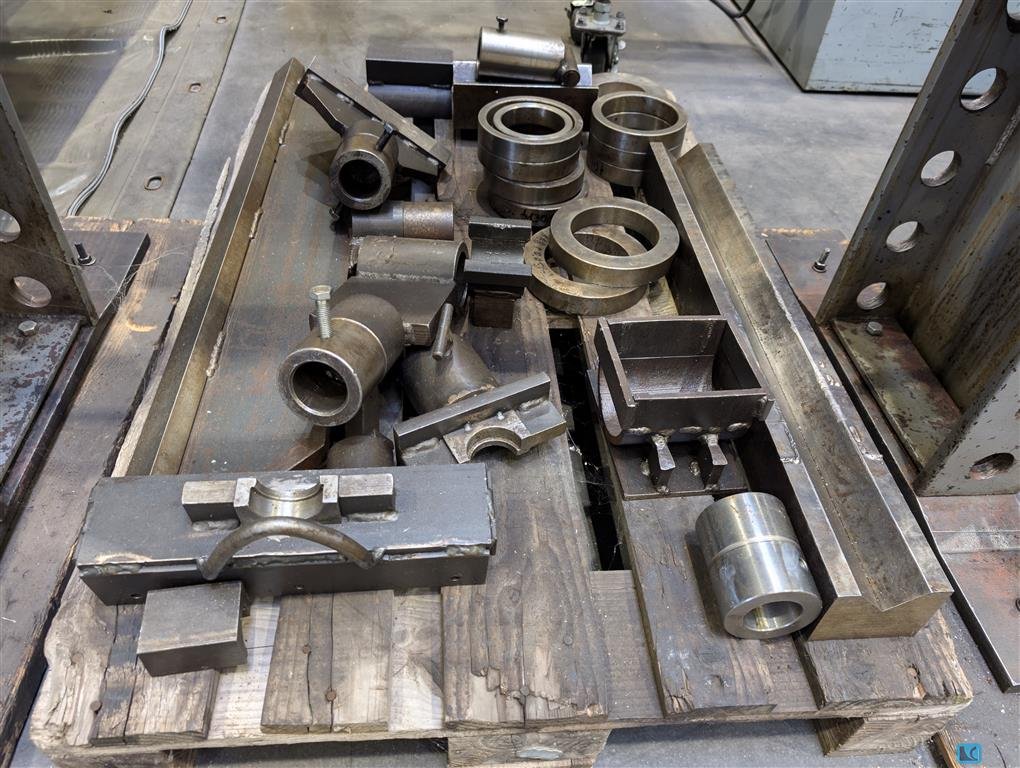

various accessories
On sale as is!
