Universal Milling Machine
Stankoimport 6H80
- Stock number:
- 1087-0400551
- Year / Condition:
- -
- Control unit:
- conventional
- Country of origin:
- Russia
- Freight basis:
- EXW, free on truck unpacked
- Item location:
- Leipzig 1
- Delivery time:
- on request
Picture / documents / videos
Technical specs
Details
- x-travel:
- 500 mm
- y-travel:
- 200 mm
- z-travel:
- 300 mm
- spindle taper ISO:
- MK 4
- quill stroke vertical:
- 60 mm
- spindle head swivable left - right:
- 45° °
- Distance- spindle nose to clamping surface:
- min./max.: 50 / 350 vertical mm
- throat:
- vertical 250 mm
- table clamping surface::
- 710 x 200 mm
- table swivable approx.:
- 45° rechts/links
- turning speed range:
- 50 - 2 240 / 24 step U/min

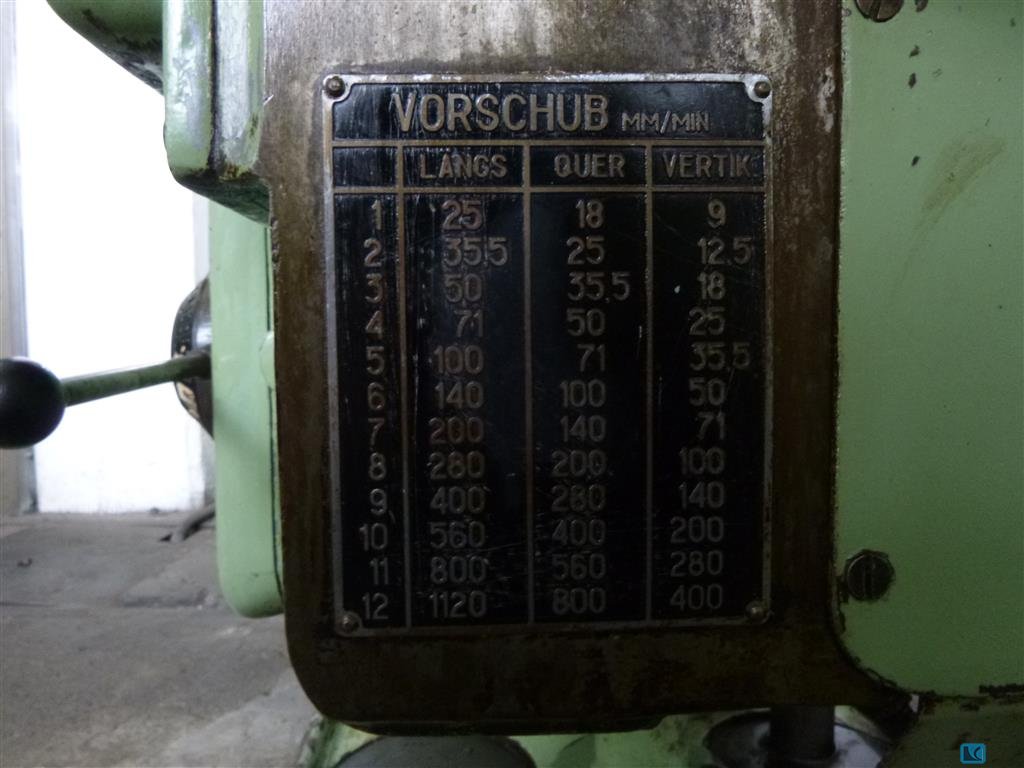

- feed::
- 25 - 1 120 / 24 step mm/min
- total power requirement:
- 3,2 kW
- weight approx.:
- 1390 kg
- dimension machine approx.LxWxH:
- 1,7 x 1,5 x 1,7 m
Description
- spindle center distance / clamping surface vertical: min/max: 50 / 350 mm
- spindle nose / clamping surface horizontal: min/max: 0 / 350 mm
- travel range of the milling bar 600 mm
- without counterholder

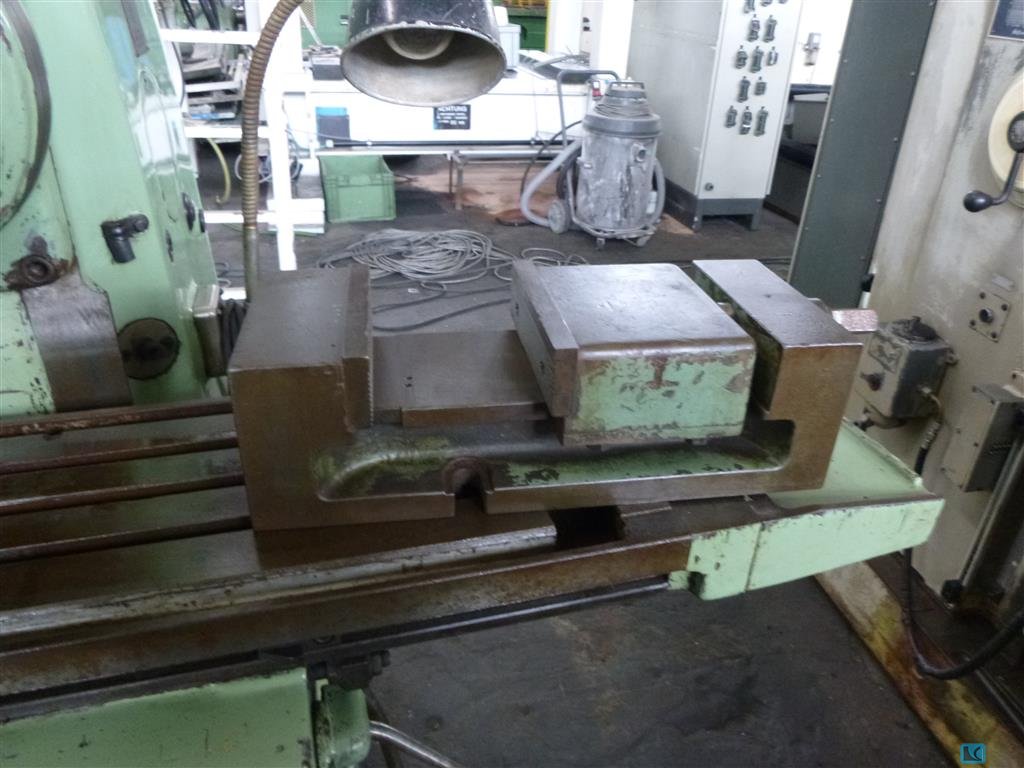

- incl. machine vice
