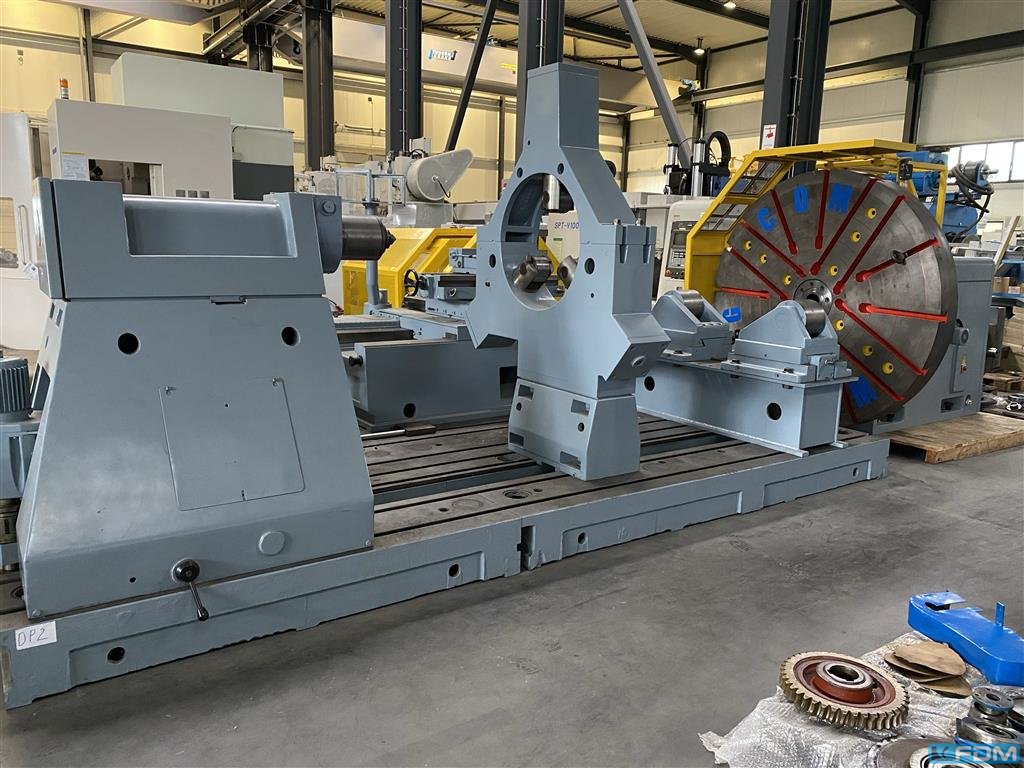

Facing Lathe
WMW ZERBST DP 2-S
- Stock number:
- 1087-0300212
- Year / Condition:
- 1987/2023 / Gebraucht
- Control unit:
- conventional
- Country of origin:
- Germany
- Freight basis:
- EXW, free on truck unpacked
- Item location:
- Leipzig 5
- Delivery time:
- 3 months after order
Picture / documents / videos
Technical specs
Details
- faceplate diameter:
- 2000 mm
- turning diameter over support:
- 2000 mm
- turning length:
- 2340 mm
- center height:
- 1250 mm
- spindle bore:
- 98 mm
- max. workpiece weight between centres:
- 16000 kg
- total power requirement:
- 65 kW
- weight of the machine ca.:
- 36 t
- space requirement approx.::
- variable m
Description
The machine will be modernized. (wiring, electric cabinet, main drive with frequency converter stepless adjustable and 4-axis digital readout system).
axis travel support stand:
- bed slide 1700mm (longitudinal)
- intermediate slider 780mm
- cross slider 640mm
- upper slider 120mm
equipment:
- 1x steady rest dia.740mm
- 1x roll attachment
- 1x grinding device
- 1x four times turning tool holder
- 1x tailstock (can be moved electric)
- 4x floor plates
- turning length of 4000mm via repositioning possible!
i.D.
