Machining Center - Universal

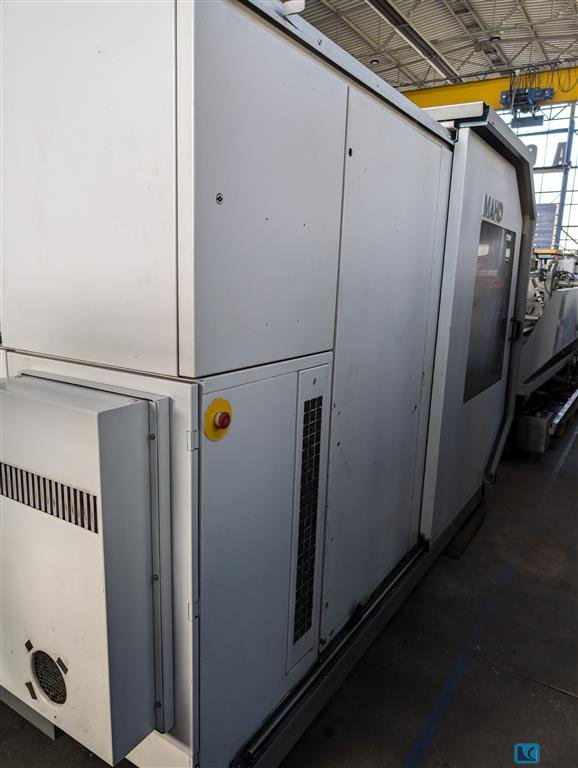

MAHO (DMG) MH 700 CB - 5 axis
- Stock number:
- 1087-0208029
- Year / Condition:
- 1987
- Control unit:
- CNC (MAHO 432)
- Country of origin:
- Germany
- Freight basis:
- EXW, free on truck unpacked
- Item location:
- Leipzig 1
- Delivery time:
- by agreement
Picture / documents / videos
Technical specs
Details
- x-travel:
- 700 mm
- y-travel:
- 500 mm
- z-travel:
- 600 mm
- table swivelling +/-:
- A-Achse: 20° / 60° Grad
- table rotating:
- B-Achse: 360° Grad
- control:
- Maho 432 (3-D Bahnsteuerung)
- Max. Milling-capacity:
- ST: 60 und GG: 22 mm
- tool changer with:
- 24 Plätze
- number of spindle speeds:
- 20 - 6300 U/min.
- max. table load:
- 200 kg
- spindle taper MT:
- ISO 40 (hydr. Spannung)
- spindle head swivable left - right:
- 90° (manuell) °
- quill stroke:
- 80 mm
- feed range:
- X/Z: 1 - 3000 und Y: 1 - 4000 und B: 0,1 - 3000°/min. mm/min
- rapid traverse::
- X/Z: 10 und Y: 8 und B: 20 U/min. m/min
- control voltage:
- 110/220 V
- total power requirement:
- ca. 20 kVA
- Weight approx.:
- 5,5 t
- dimension machine approx.LxWxH:
- 3,0 x 2,4 x 2,25 m
- space requirements of the machine approx.:
- 5,2 x 5,0 x H: 2,3 m
Description

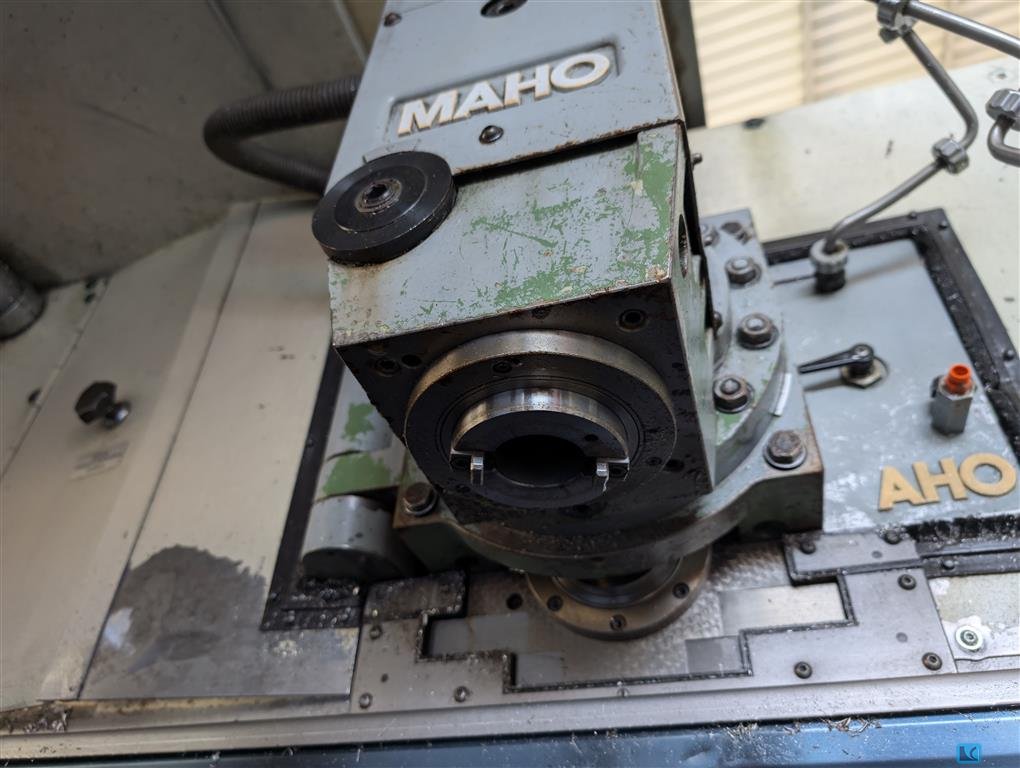

NC rotary table Ø 520 mm with A and B axes
Adjustable three-phase motor with 4-stage reduction gear
Working spindle can be swiveled out for horizontal spindle
Equipment:
-manual control unit
-coolant device
-machine ilumination
