CNC Turning- and Milling Center

Details

max. turning diameter:

320 mm

turning length:

1040 mm

control:

OSP E 100 L Dialog Fanuc

greates pass round over bed:

530 mm

standard turning dia.:

350

Max. distance between centres:

1200 mm

max. workpiecediameter:

525 mm

Traverse X-Axis 1:

500

Traverse X-Axis 2:

350 mm

Traverse Y-Axis 1:

160 (+80/-80) mm

Traverse Z-Axis 1:

1200 mm

Traverse Z-Axis 2:

1200 mm

Spindle 1 Power:

22 kW

Spindle 1 RPM:

3800 1/min

spindle nose:

JIS A2-8

spindle bore:

80 mm

bar material dia.:

65 mm

C-Axis:

0,001°

Number of Turrets:

2

Turret No.1 stations / rotary tools:

12/12

Turret 1 tool RPM:

4500 1/min

Turret No.2 stations / rotary tools:

12/12

rapid traverse X-axis:

20 m/min

rapid traverse Z-axis:

25 m/min

total power requirement:

33 kVA

weight of the machine ca.:

10 t

dimensions of the machine ca.:

6,0 x 2,5x 2,3 m

High pressure coolant system:

INterlit 8/20 bar

Accerories

Chip conveyor



part counter



total counter



tool setting



Signal lamp 3 colors



spindle load monitor:

B

Spindle 1 Chuck:

SMW 300 mm

Description

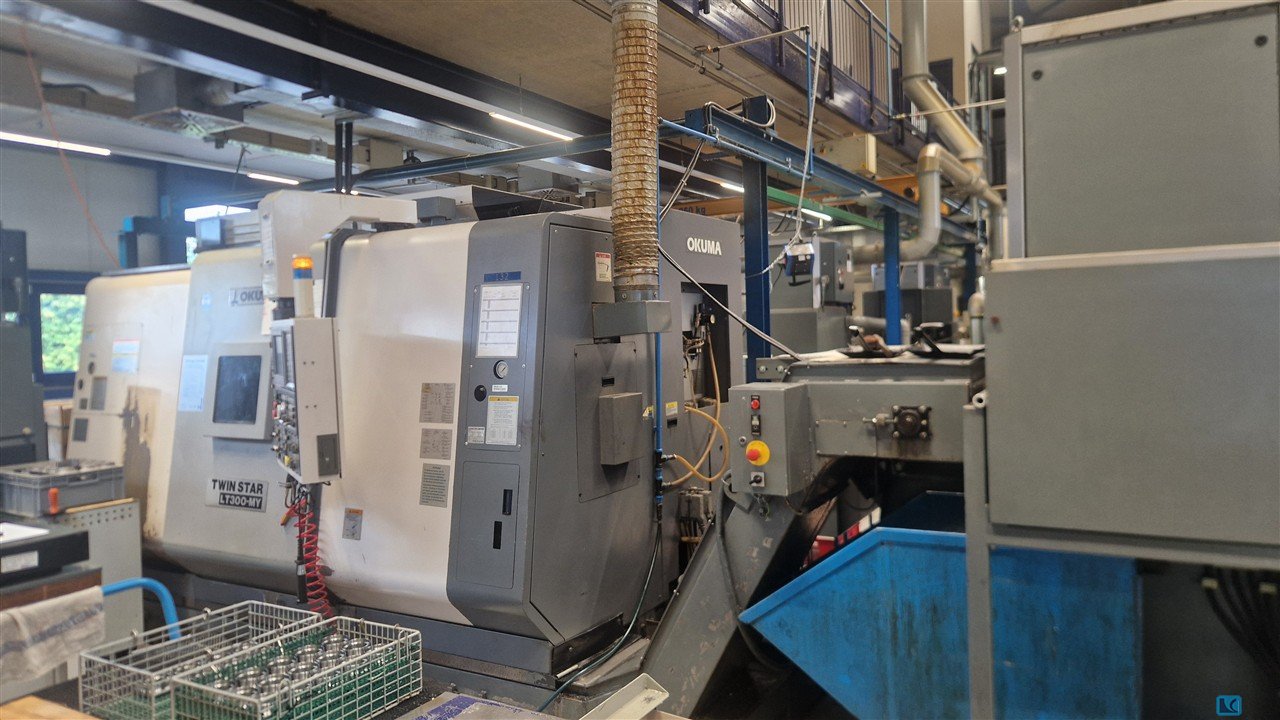

CNC Turning-and Milling Center
The Okuma LT 300 MY has 2 turrets, the upper turret has Y-axis with milling function, the lower turret has milling function. It has main- and subspindle. This allows synchronized machining using 2 turrets.
There is an Interlit paperfilter/high pressuire system with the machine with coolant cooler.
There are 7 identical machines available, all in very good and well maintained condition.
