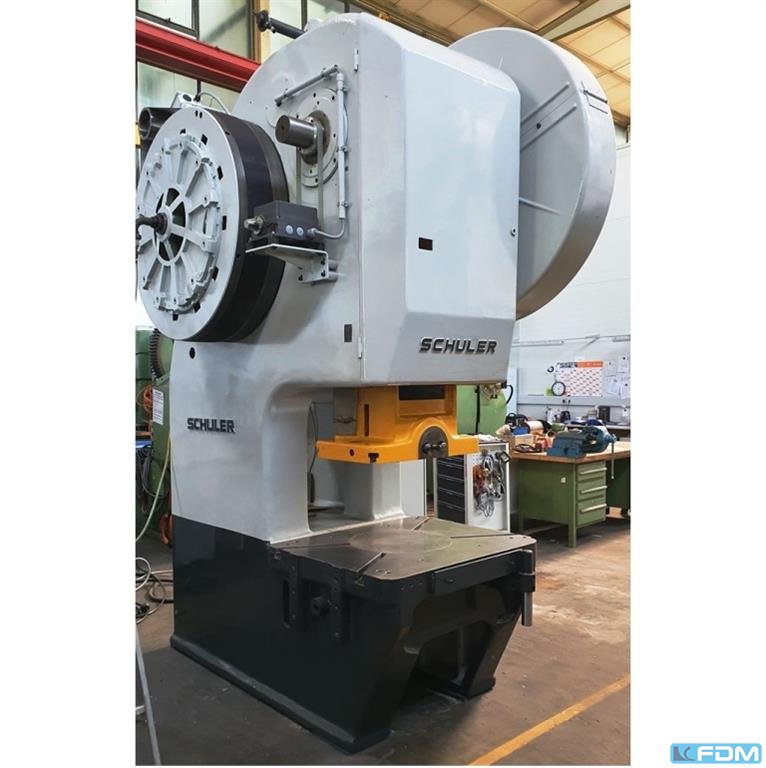

Eccentric Press - Single Column
SCHULER PDR 200/450 (UVV)
- Stock number:
- 1050-193076V
- Year / Condition:
- 1968 / 77 / used
- Control unit:
- conventional (konventionell)
- Country of origin:
- Germany
- Freight basis:
- EXW, free loaded to truck
- Item location:
- warehouse Eislingen, Germany
- Delivery time:
- according agreement
Picture / documents / videos
Technical specs
Details
- pressure:
- 200 t
- throat:
- 450 mm
- stroke:
- 8 - 162 mm
- Stroke rate:
- 40 / min
- Distance table/ram, max. stroke up, adjustment up:
- 630 mm
- Table surface area:
- 1025 x 900 mm
- Hole in the table:
- 500 / 450 mm
- Table height above floor:
- 780 mm
- Passage to the back:
- 425 mm
- Ram surface:
- 710 x 450 mm
- Ram adjustment:
- 125 mm
- Power capacity:
- 16,0 kW
- Weight:
- 13,8 t
- Dimensions (WxDxH):
- 1,95 x 2,0 x 3,35 m
Additional information
- German Safety: permitted for manual loading
clutch
overload protection in ram
ram counterbalance
central lubrication
