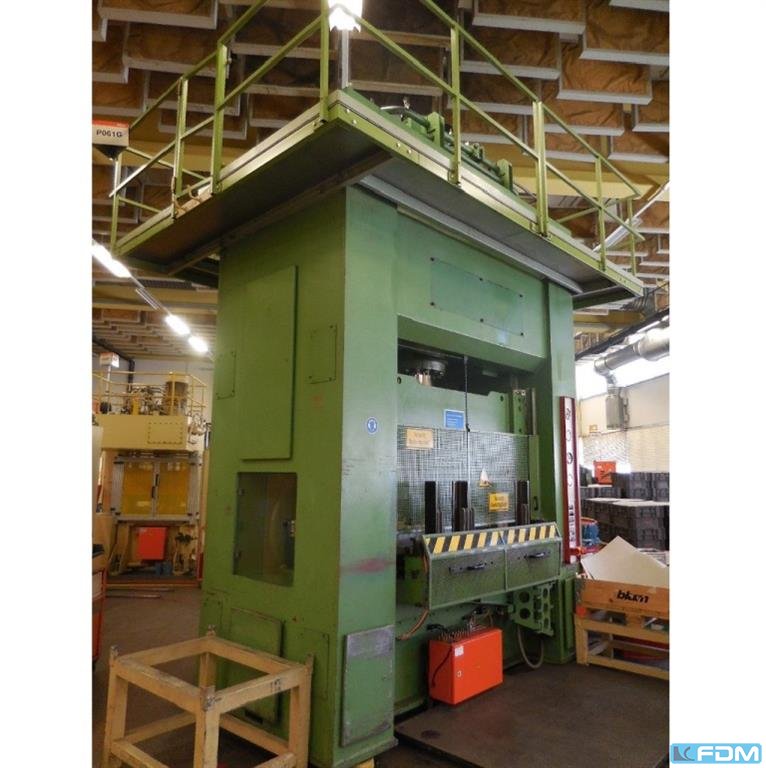

Hydraulic Double-Column (Drawing) Press

Details

pressure:

315 t

distance between columns:

1800 mm

stroke:

400 mm

Distance table/ram, max. stroke up, adjustment up:

650 mm

table surface area:

1800 x 1000 mm

table height over floor:

900 mm

die cushion pressure in table:

80 t

die cushion stroke in table:

100 mm

Die cushion area in table:

1300 x 600 mm

side window:

600 mm

ram surface:

1800 x 1000 mm

speed down:

400 mm/s

speed up:

300 mm/s

working speed:

15 - 80 mm/s

oil volume:

1700 l

power requirement:

55,0 kW

weight:

27,5 t

dimensions (WxDxH):

3,1 x 2,2 x 4,6 m

Additional information

German Safety: permitted for manual loading
die cushion in table
foundation pit
