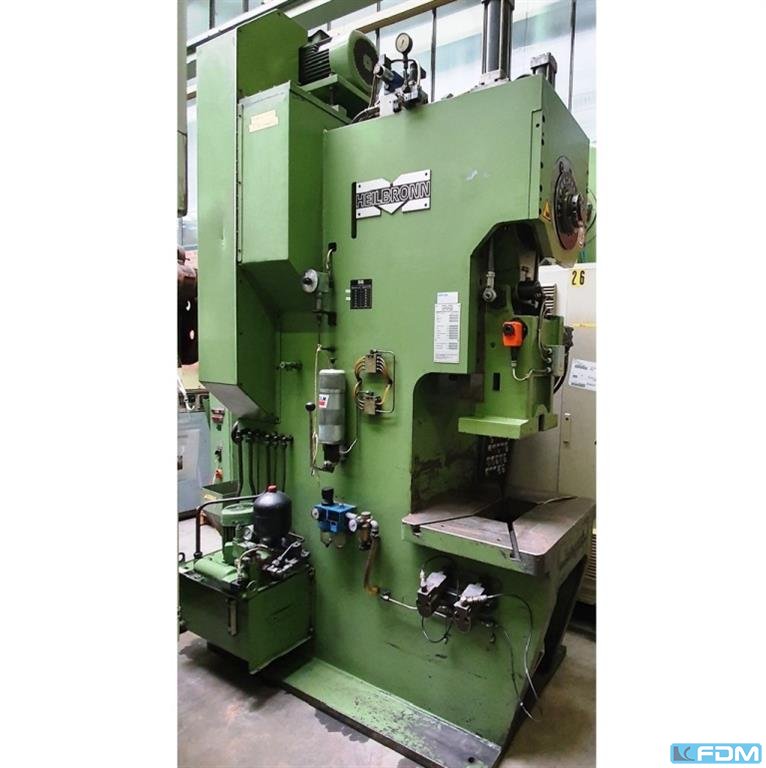

Presses - Eccentric Press - Single Column - HEILBRONN REP 80 (UVV)

Eccentric Press - Single Column

HEILBRONN REP 80 (UVV)

Stock number:
1050-113134
Year / Condition:
1992 / used
Control unit:
conventional (konventionell)
Country of origin:
Germany
Freight basis:
EXW, free loaded to truck
Item location:
warehouse Eislingen, Germany
Delivery time:
according agreement

Picture / documents / videos

Technical specs

Details

Pressure:
080 t
throat:
300 mm
stroke:
8 - 100 mm
no. of strokes:
60 /min
distance table/ram, max. stroke up, adjustment up:
440 mm
table surface area:
720 x 600 mm
hole in the table:
300 x 175 mm
table height over floor:
860 mm
ram surface:
400 x 270 mm
ram adjustment:
60 mm
power requirement:
7,5 kW
weight:
6,0 t
dimensions (WxDxH):
1,3 x 2,2 x 3,05 m

Additional information

German Safety: permitted for manual loading
clutch-/ brake combination
overload protection in ram
ram adjustment
ram counterbalance
two-hand and foot operation
