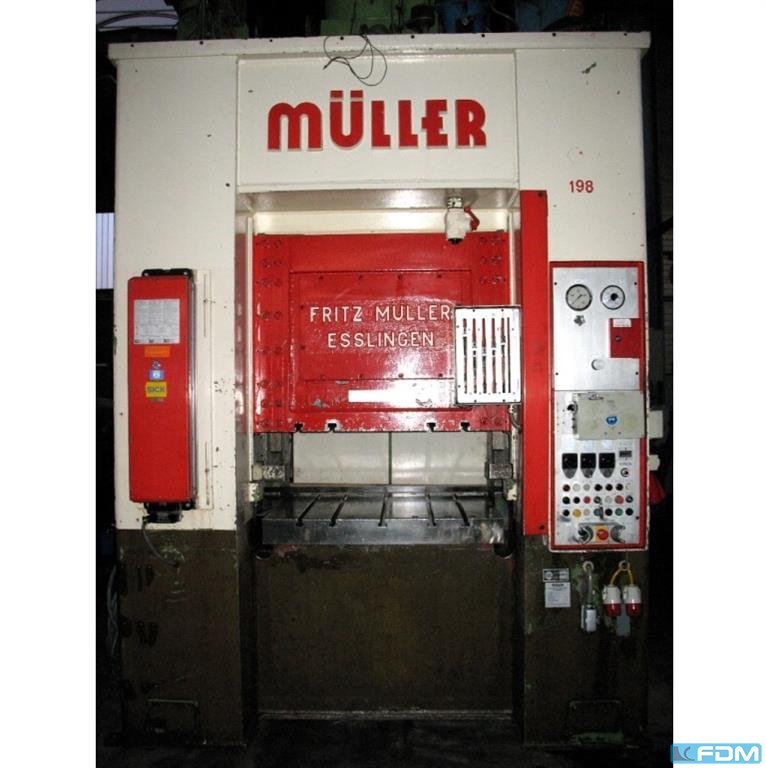

Hydraulic Double-Column (Drawing) Press
MUELLER SD 250/200.1.2
- Stock number:
- 1050-093097
- Year / Condition:
- 1977 / used
- Control unit:
- conventional (konventionell)
- Country of origin:
- Germany
- Freight basis:
- EXW, free loaded to truck
- Item location:
- warehouse Eislingen, Germany
- Delivery time:
- according agreement
Picture / documents / videos
Technical specs
Details
- pressure:
- 250 t
- distance between columns:
- 1110 mm
- stroke:
- 250 mm
- Distance table/ram, max. stroke up, adjustment up:
- 500 mm
- Table surface area:
- 1100 x 900 mm
- Table height above floor:
- 950 mm
- Side window:
- 690 mm
- Ram surface:
- 1100 x 900 mm
- Oil volume:
- 730 l
- Power capacity:
- 56,0 kW
- Dimensions (WxDxH):
- 2,3 x 1,55 x 3,96 m
Additional information
- controllable dependant on pressure/time and way
depth stop
cutting impact cushioning
